COS5A23159
700mΩ 2 1.8V~5.5V MSOP-10 Analog Switches, Multiplexers, Demultiplexers RoHS
MSOP-10ROHS CompliantActive

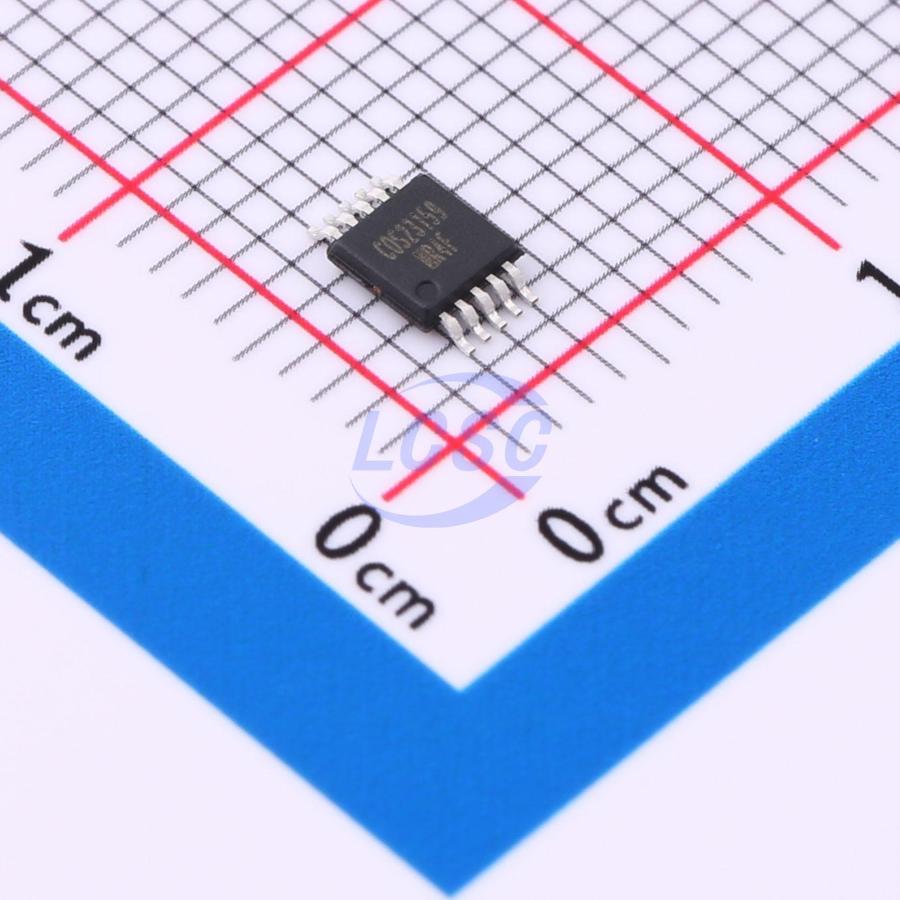

1-Q Dual SPDT Analog Switch, 2:1 Multiplexer / 1:2 Demultiplexer
- Manufacturer
- COSINE
- Manufacturer part #
- COS5A23159
- Store part #
- C34373752
- Package / case
- MSOP-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,320 in stock
#C34373752
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.51 | ₹162.55 |
| 50+ | ₹25.39 | ₹1,269.50 |
| 150+ | ₹22.35 | ₹3,352.50 |
| 500+ | ₹18.54 | ₹9,270.00 |
| 3,000+ | ₹16.84 | ₹50,520.00 |
| 6,000+ | ₹15.82 | ₹94,920.00 |
5 × ₹32.51
₹162.55
excl. GST
₹191.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
COS5A23159
₹162.55 for 5 + GST
Specifications
- Features
- Bidirectional analog channel;Glitch-free switching
- Operating Temperature
- -40℃~+125℃
- Ron
- 700mΩ
- Number of Channels
- 2
- Voltage - Supply
- 1.8V~5.5V
- Con
- 55pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.156 g
Overview
The COS5A23159 is a low voltage dual channel, bidirectional, single-pole double-throw (SPDT) CMOS analog switch. The device can pass signals with rail-to-rail swing from a single supply 1.8V to 5.5V. The switches conduct equally well in both directions when it is on. The digital inputs have 0.8V to 2.4V logic thresholds, ensuring TTL/CMOS logic compatibility when using a +5V supply. The COS5A23159 offers low ON-state resistance and excellent ON-state resistance matching with the break-before-make feature which prevents signal distortion during the transferring of a signal from one channel. The device is suitable for a wide variety of low power applications including signal gating, chopping, modulation and multiplexing.
Applications
- Computer Peripherals
- Audio and Video Signal Switching
- Portable Devices
- Communication Circuits
- Signal Gating, Multiplexer/Demultiplexer
- Signal Modulation or Demodulation
- Sample and Hold Systems
- Telecom Signal Switching
- Battery Power Systems
Key features
- 1.8V to 5.5V Single Supply Operation
- Low ON-State Resistance: 1Ω (typ)
- -3dB Bandwidth: 90 MHz
- Fast Switching Speed
- Break-Before-Make Operation
- Rail-to-Rail Operation
- TTL/CMOS Logic Compatible
- Supports Analog and Digital Signals
- Small Packaging: MSOP10, DFN10-3x3
- Extended Industrial Temperature Range: -40°C to +125°C
