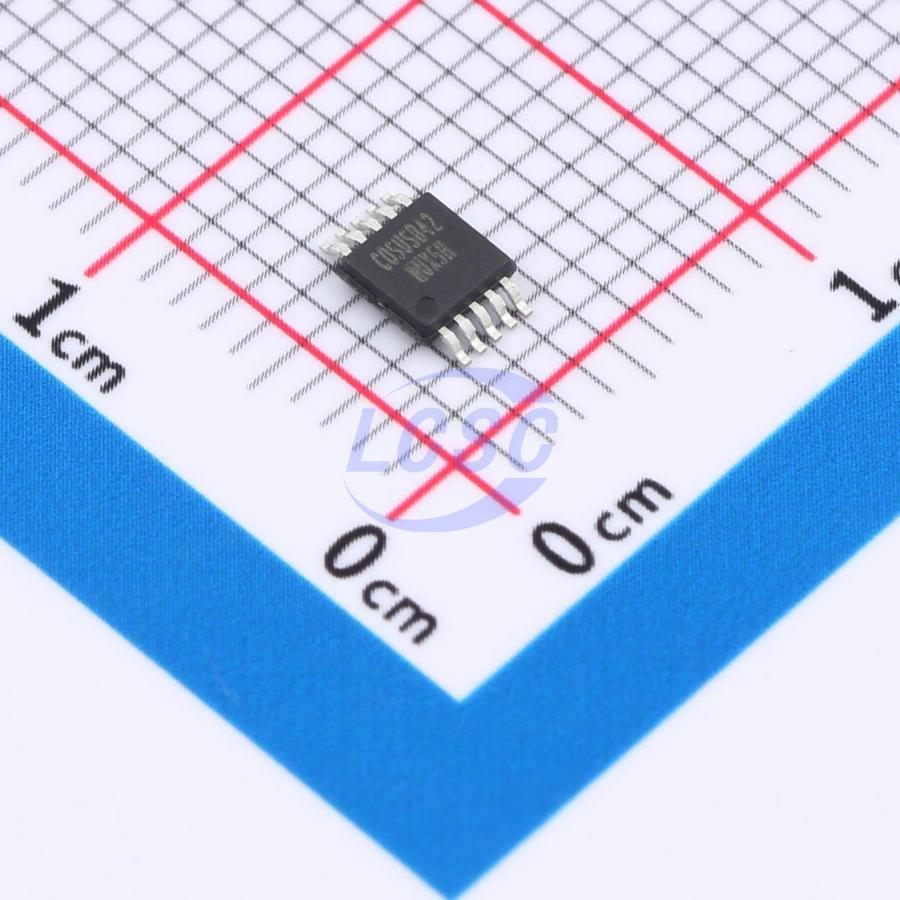

COSUSB42MUX

COSUSB42 is a low-voltage, high-bandwidth DPDT CMOS analog switch with a single output enable control pin. The device operates from a single supply of 1.8V to 5.5V, passing rail-to-rail signals. The switch conducts bidirectionally with consistent performance when on. The output enable pin places the signal path in a high-impedance state, isolating the bus and reducing current consumption when not in use. The device features low on-resistance and excellent on-resistance matching, and incorporates a break-before-make function to prevent signal distortion during channel switching. The device is ideal for switching high-speed USB 2.0 signals in mobile phones and consumer applications where USB I/O count is limited.

Applications

• General-purpose signal switching
• Portable devices
• Set-top boxes
• Sample-and-hold systems
• Telecom signal switching

Key features

• 1.8V to 5.5V single-supply operation
• Low power consumption (1μA max)
• Low on-resistance: 10Ω max
• -3dB bandwidth: 900 MHz typical
• Fast switching speed
• Break-before-make operation
• Rail-to-rail operation
• TTL/CMOS logic level compatible
• Analog and digital signal support
• Compact package: MSOP10, UQFN10
• Extended industrial temperature range: -40°C to +125°C
