SILICON LABS

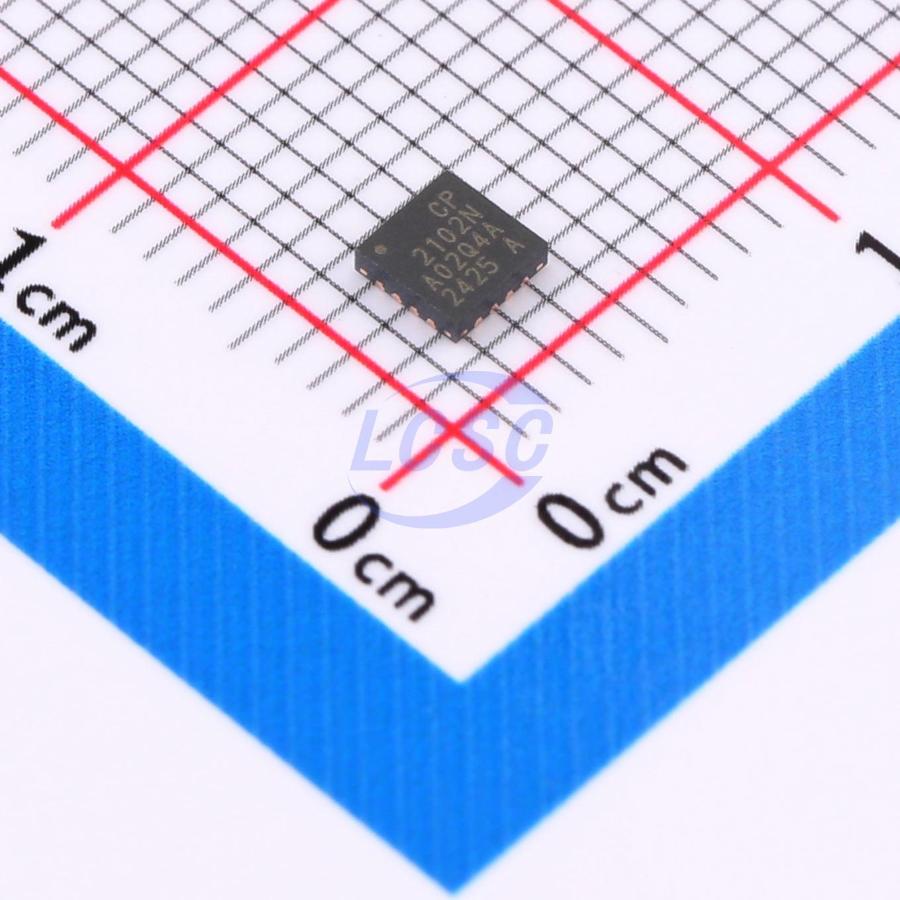

CP2102N-A02-GQFN20R

USB to UART 3Mbps QFN-20-EP(3x3) Controllers RoHS

PopularQFN-20-EP(3x3)ROHS3 CompliantActive

USB-to-UART Bridge

Manufacturer: SILICON LABS
Manufacturer part #: CP2102N-A02-GQFN20R
Store part #: C969913
Package / case: QFN-20-EP(3x3)
Category: Controllers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

11,349 in stock

#C969913

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹244.08	₹244.08
10+	₹206.52	₹2,065.20
30+	₹182.84	₹5,485.20
100+	₹158.75	₹15,875.00
500+	₹147.67	₹73,835.00
1,500+	₹142.88	₹2,14,320.00

Quantity (min 1)

1 × ₹244.08

₹244.08

excl. GST

₹288.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 1,500 per reel

CP2102N-A02-GQFN20R

₹244.08 for 1 + GST

Specifications

Features: Programmable baud rate;Power-on reset;FIFO buffer;Hardware flow control support;Wake-up function;Built-in clock generator
Voltage - Supply: 3V~3.6V;3V~5.25V
Operating Temperature: -40℃~+85℃
Applications Function: USB to UART
Quiescent Supply Current: 1.3uA
USB Protocol: USB 2.0
Current - Supply: 13.7mA
Data Rate: 3Mbps

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 1,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.062 g

Overview

The CP2102N devices, part of the USBXpress family, are designed to quickly add USB to your applications by eliminating firmware complexity and reducing development time. These highly-integrated USB-to-UART bridge controllers provide a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. CP2102N includes a USB 2.0 full-speed function controller, USB transceiver, oscillator, and Universal Asynchronous Receiver/Transmitter (UART) in packages as small as 3 mm×3 mm. No other external USB components are required for development. All customization and configuration options can be selected using a simple GUI-based configurator. By eliminating the need for complex firmware and driver development, the CP2102N devices enable quick USB connectivity with minimal development effort.

Applications

POS terminals
USB dongles
Gaming controllers
Medical equipment
Data loggers

Key features

No firmware development required
Simple GUI-based configurator
Integrated USB transceiver; no external resistors required
Integrated clock; no external crystal required
USB 2.0 full-speed compatible
Data transfer rates up to 3 Mbaud
USB Battery Charger Detection (USB BCS 1.2 Specification)
Remote wakeup for waking a suspended host
Low operating current: 9.5 mA
Royalty-free Virtual COM port drivers
Internal 960-byte programmable ROM for vendor ID, product ID, serial number, power descriptor, release number, and product description strings
On-chip power-on reset circuit
On-chip voltage regulator — 3.3 V output
Pin compatible with CP2101/2/9 (QFN28 package)
Pin compatible with CP2104 (QFN24 package)
USB Specification 2.0 compliant; full-speed (12 Mbps)
USB suspend states supported via SUSPEND pins
Single power supply of 3.0 to 3.6 V or 3.0 to 5.25 V
Works with existing COM port Applications
Supported on Windows, Mac, and Linux
Royalty-free distribution license
