TE ConnectivityDatasheet (PDF)

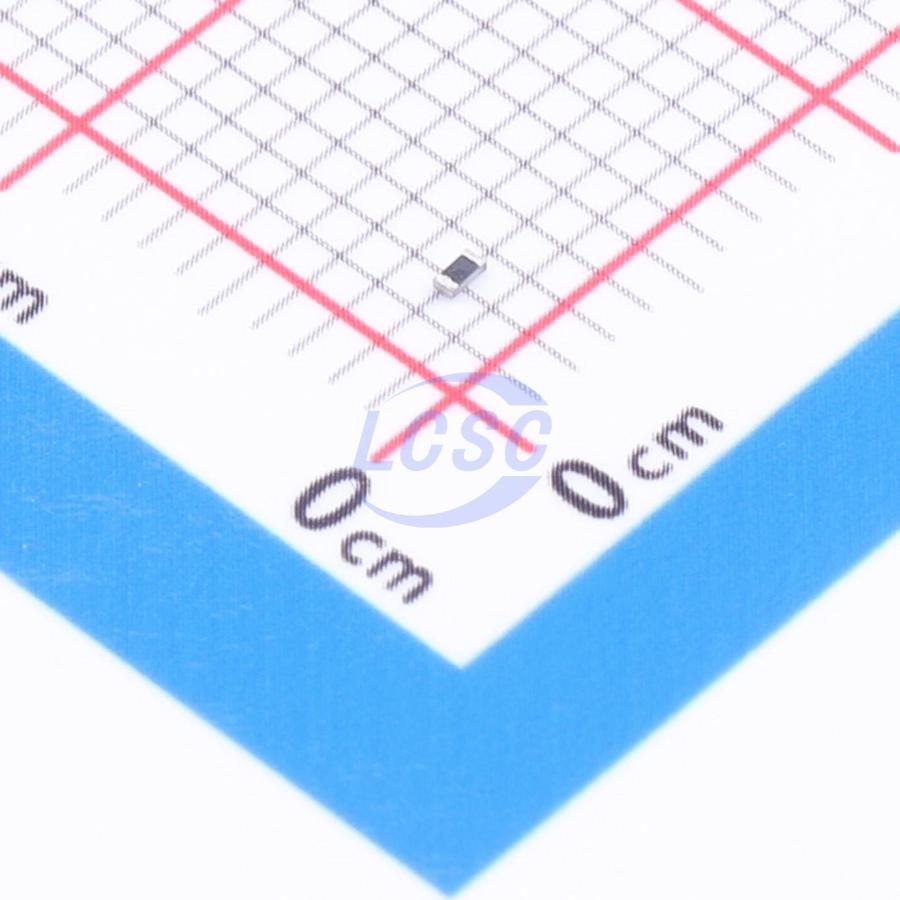

CPF0402B12RE1
12Ω 63mW Thin Film Resistor ±25ppm/℃ ±0.1% 0402 Chip Resistor - Surface Mount
0402Active
RES 12Ω ±0.1% 63mW 0402
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0402B12RE1
- Store part #
- C5972783
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C5972783
Stock & price checked 38 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹38.80 | ₹38.80 |
| 10+ | ₹37.94 | ₹379.40 |
| 30+ | ₹37.52 | ₹1,125.60 |
| 100+ | ₹36.87 | ₹3,687.00 |
1 × ₹38.80
₹38.80
excl. GST
₹45.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0402B12RE1
₹38.80 for 1 + GST
Specifications
- Resistance
- 12Ω
- Power(Watts)
- 63mW
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.073 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT0402BRD0712RL#C852514YAGEO · 0402 | YAGEO | 0402 | 150 | ₹3.70 · 150 in stock | View |
 | AR02BTC0120#C317902Viking · 0402 | Viking | 0402 | 1,240 | ₹3.86 · 1,240 in stock | View |
 | ARG02BTC0120#C5137143Viking · 0402 | Viking | 0402 | 7,880 | ₹3.16 · 7,880 in stock | View |
| RNCF0402BTE12R0#C2493479SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote | |
| RNCF0402BKE12R0#C2512720SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote | |
