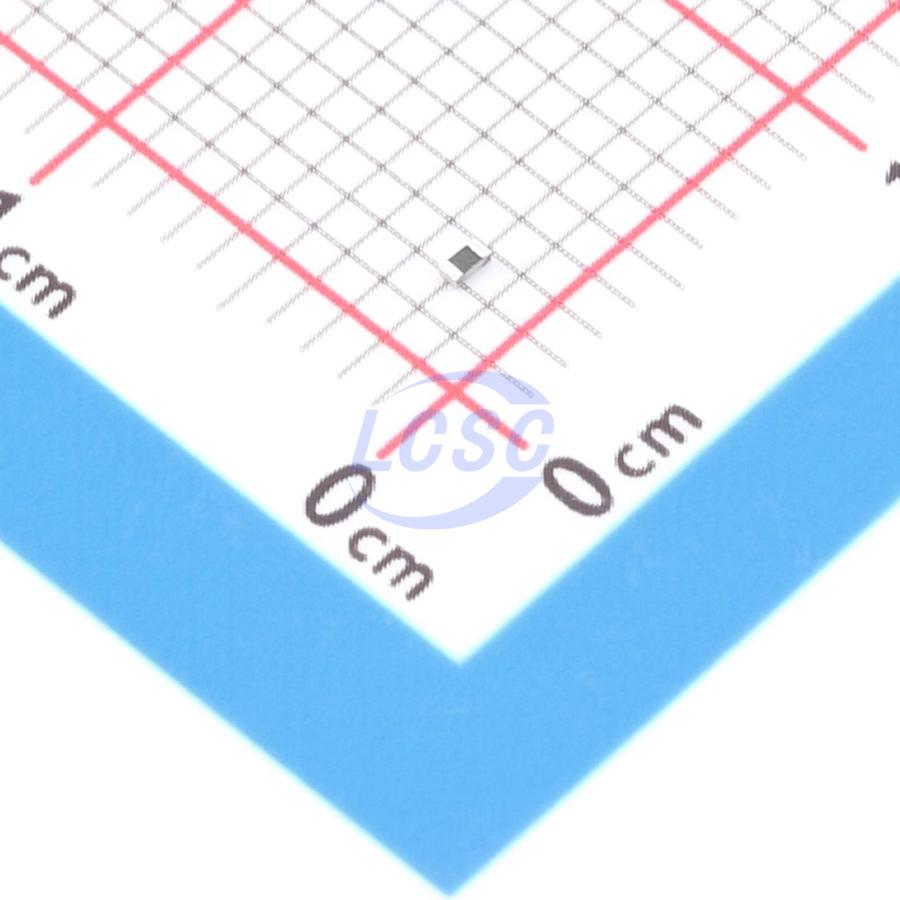

CPF0402B22RE1
22Ω 63mW Thin Film Resistor ±25ppm/℃ ±0.1% 0402 Chip Resistor - Surface Mount RoHS
RES 22Ω ±0.1% 63mW 0402
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0402B22RE1
- Store part #
- C7115176
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
530 in stock
#C7115176
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹53.48 | ₹267.40 |
| 50+ | ₹43.67 | ₹2,183.50 |
| 150+ | ₹39.47 | ₹5,920.50 |
| 1,000+ | ₹34.23 | ₹34,230.00 |
| 2,000+ | ₹31.90 | ₹63,800.00 |
| 5,000+ | ₹30.50 | ₹1,52,500.00 |
5 × ₹53.48
₹267.40
excl. GST
₹315.53 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0402B22RE1
₹267.40 for 5 + GST
Specifications
- Resistance
- 22Ω
- Power(Watts)
- 63mW
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.041 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT0402BRD0722RL#C852651YAGEO · 0402 | YAGEO | 0402 | 33,300 | ₹3.86 · 33,300 in stock | View |
| RNCF0402BTE22R0#C2493590SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote | |
| RNCF0402BKE22R0#C2512771SEI(Stackpole Electronics Inc.) · 0402 | SEI(Stackpole Electronics Inc.) | 0402 | On request | Price on request | Quote | |
| RT0402BRC0722RL#C20165051YAGEO · 0402 | YAGEO | 0402 | On request | Price on request | Quote | |
| RT0402BRB0722RL#C7064881YAGEO · 0402 | YAGEO | 0402 | On request | Price on request | Quote | |
