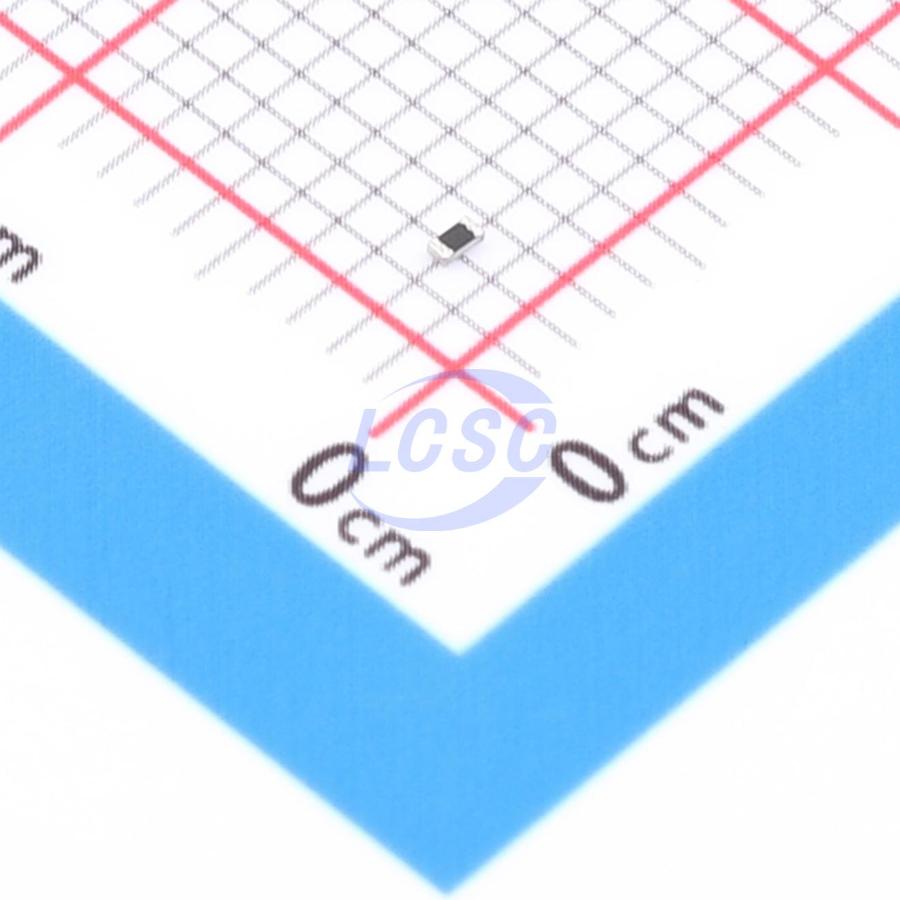

CPF0402B316KE1
316kΩ 62.5mW 25V Thin Film Resistor ±25ppm/℃ ±0.1% 0402 Chip Resistor - Surface Mount RoHS
RES 316kΩ ±0.1% 62.5mW 0402
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0402B316KE1
- Store part #
- C4226754
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
670 in stock
#C4226754
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.89 | ₹53.89 |
| 10+ | ₹42.59 | ₹425.90 |
| 30+ | ₹37.81 | ₹1,134.30 |
| 100+ | ₹31.73 | ₹3,173.00 |
| 500+ | ₹28.91 | ₹14,455.00 |
| 1,000+ | ₹27.39 | ₹27,390.00 |
1 × ₹53.89
₹53.89
excl. GST
₹63.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0402B316KE1
₹53.89 for 1 + GST
Specifications
- Resistance
- 316kΩ
- Power(Watts)
- 62.5mW
- Voltage Rating
- 25V
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.121 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
