TE ConnectivityDatasheet (PDF)

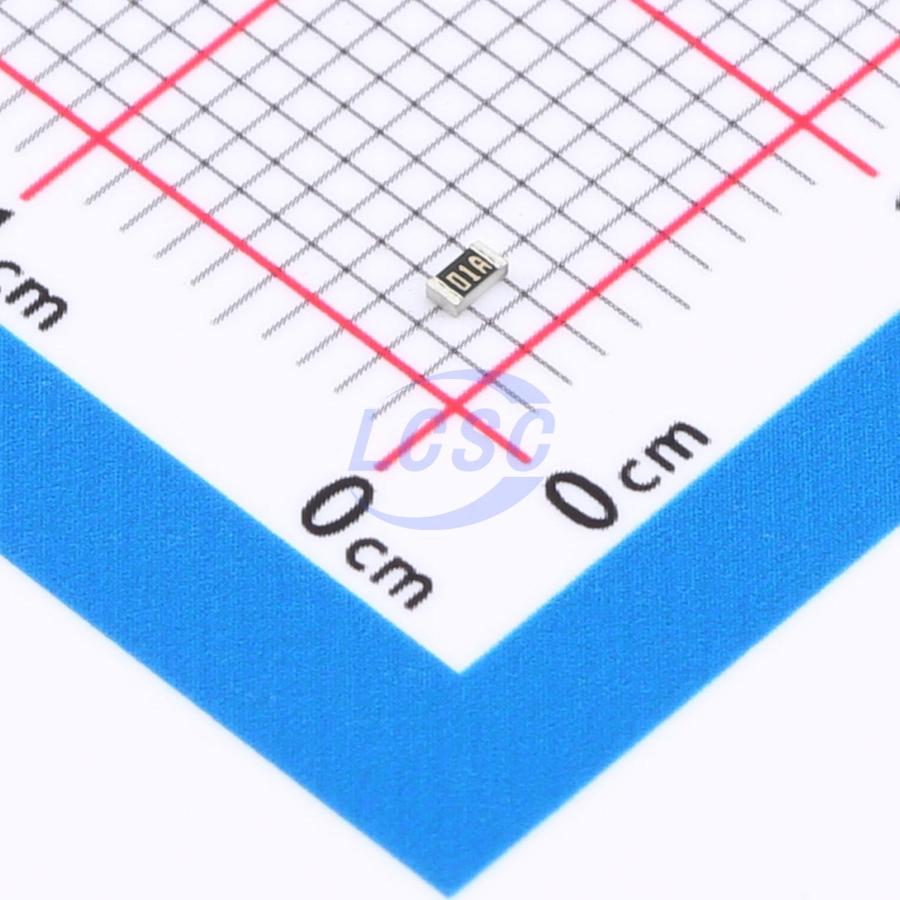

CPF0603B100RE1
100Ω ±0.1% 63mW 0603 Thin Film Resistor
0603ROHS3 CompliantActive
RES 100Ω ±0.1% 63mW 0603
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0603B100RE1
- Store part #
- C3972964
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4 in stock
#C3972964
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.67 | ₹53.67 |
| 10+ | ₹41.94 | ₹419.40 |
| 30+ | ₹36.95 | ₹1,108.50 |
| 100+ | ₹30.64 | ₹3,064.00 |
| 500+ | ₹27.82 | ₹13,910.00 |
| 1,000+ | ₹26.30 | ₹26,300.00 |
1 × ₹53.67
₹53.67
excl. GST
₹63.33 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0603B100RE1
₹53.67 for 1 + GST
Specifications
- Power(Watts)
- 63mW
- Resistance
- 100Ω
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.141 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | FC0603E1000BTBST1#C2076508VISHAY · 0603 | VISHAY | 0603 | 35 | ₹601.18 · 35 in stock | View |
 | FC0603E1000BST1#C2090515VISHAY · 0603 | VISHAY | 0603 | 3 | ₹292.05 · 3 in stock | View |
 | TD03G1000BT#C657357FH · 0603 | FH | 0603 | 1,560 | ₹4.41 · 1,560 in stock | View |
 | CRF0603Q101BN#C54973932SIE · 0603 | SIE | 0603 | 17,060 | ₹4.86 · 17,060 in stock | View |
 | AR03BTC1000#C26919463Viking · 0603 | Viking | 0603 | 20 | ₹3.43 · 20 in stock | View |
