TE ConnectivityDatasheet (PDF)

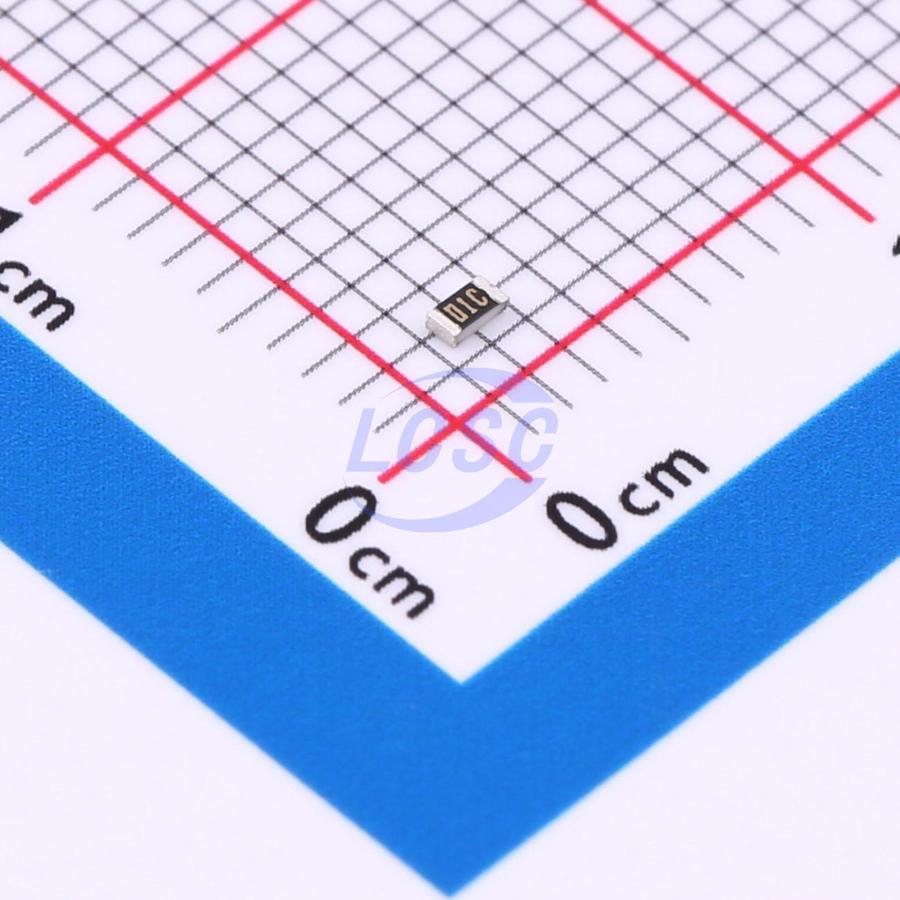

CPF0603B10KE1
10kΩ ±0.1% 63mW 0603 Thin Film Resistor
0603ROHS3 CompliantActive
RES 10kΩ ±0.1% 63mW 0603
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0603B10KE1
- Store part #
- C4109781
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C4109781
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.91 | ₹144.55 |
| 50+ | ₹23.33 | ₹1,166.50 |
| 150+ | ₹20.93 | ₹3,139.50 |
| 1,000+ | ₹17.95 | ₹17,950.00 |
| 2,000+ | ₹16.63 | ₹33,260.00 |
| 5,000+ | ₹15.83 | ₹79,150.00 |
5 × ₹28.91
₹144.55
excl. GST
₹170.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0603B10KE1
₹144.55 for 5 + GST
Specifications
- Resistance
- 10kΩ
- Power(Watts)
- 63mW
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.044 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CPF0603B10KE#C2076118TE Connectivity · 0603 | TE Connectivity | 0603 | 70 | ₹31.00 · 70 in stock | View |
 | RNCS0603BKE10K0#C346660SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | 390 | ₹11.36 · 390 in stock | View |
 | TD03G1002BT#C667034FH · 0603 | FH | 0603 | 17,680 | ₹3.21 · 17,680 in stock | View |
 | CRF0603Q103BN#C54973934SIE · 0603 | SIE | 0603 | 35,640 | ₹3.89 · 35,640 in stock | View |
| CPF-A-0603B10KE1#C1704750TE Connectivity · 0603 | TE Connectivity | 0603 | 236 | ₹77.11 · 236 in stock | View | |
