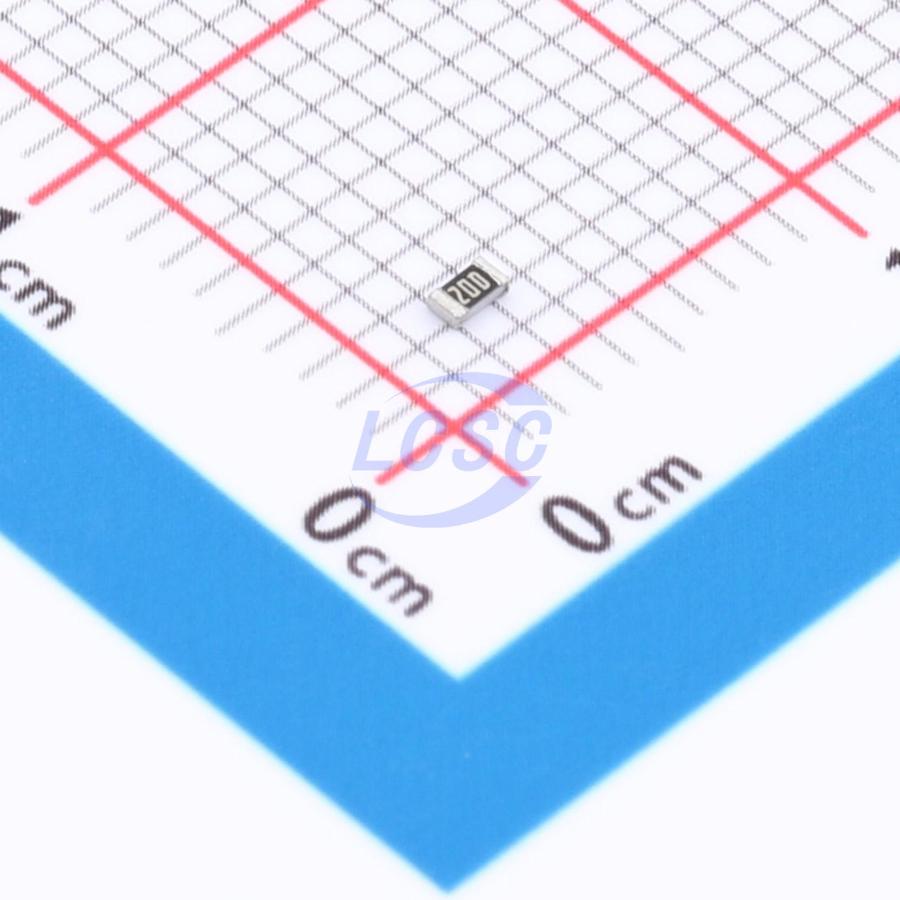

CPF0603B158KE1
62.5mW 158kΩ Thin Film Resistor ±25ppm/℃ ±0.1% 0603 Chip Resistor - Surface Mount RoHS
RES 158kΩ ±0.1% 62.5mW 0603
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0603B158KE1
- Store part #
- C4021957
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
103 in stock
#C4021957
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.50 | ₹68.50 |
| 10+ | ₹55.02 | ₹550.20 |
| 30+ | ₹49.15 | ₹1,474.50 |
| 100+ | ₹41.98 | ₹4,198.00 |
| 500+ | ₹38.71 | ₹19,355.00 |
| 1,000+ | ₹36.75 | ₹36,750.00 |
1 × ₹68.50
₹68.50
excl. GST
₹80.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0603B158KE1
₹68.50 for 1 + GST
Specifications
- Power(Watts)
- 62.5mW
- Resistance
- 158kΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.048 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT0603BRD07158KL#C861139YAGEO · 0603 | YAGEO | 0603 | 4,620 | ₹6.69 · 4,620 in stock | View |
 | PTFR0603B158KP9#C47115941RESI · 0603 | RESI | 0603 | 3,160 | ₹15.98 · 3,160 in stock | View |
 | RT0603BRE07158KL#C861679YAGEO · 0603 | YAGEO | 0603 | 340 | ₹4.09 · 340 in stock | View |
| ERA-3AEB1583V#C2076297PANASONIC · 0603 | PANASONIC | 0603 | On request | Price on request | Quote | |
| CPF0603B158KE#C3949406TE Connectivity · 0603 | TE Connectivity | 0603 | On request | Price on request | Quote | |
