TE ConnectivityDatasheet (PDF)

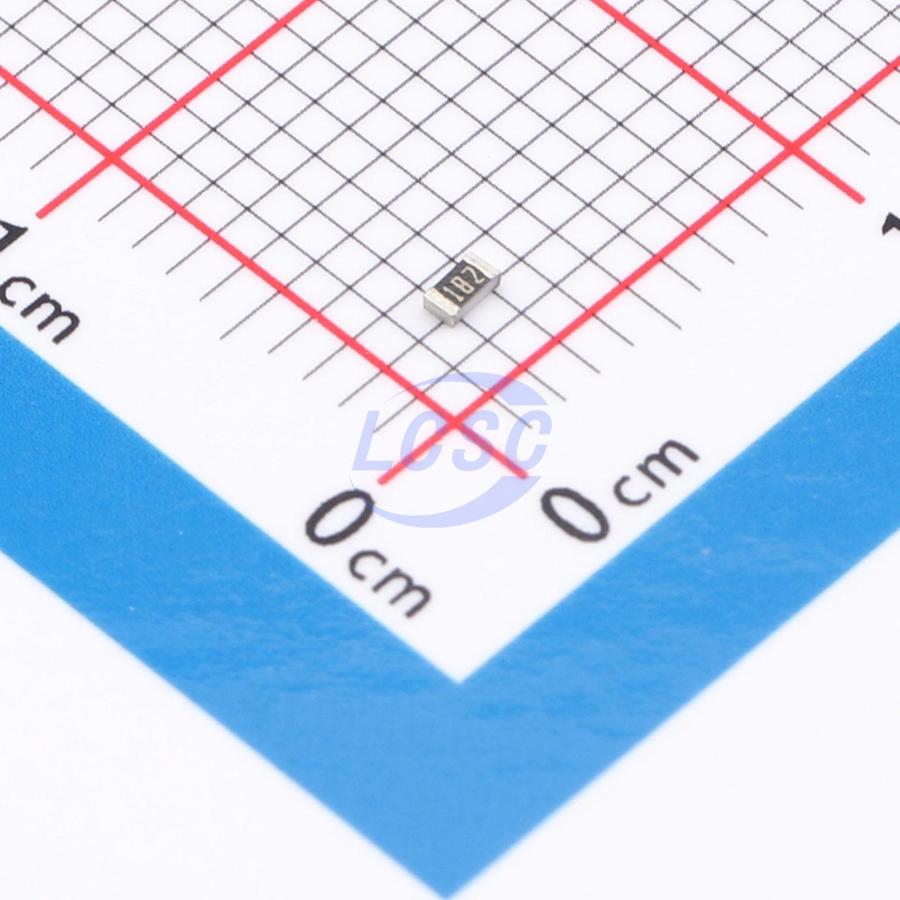

CPF0603B1K8E1
62.5mW 1.8kΩ Thin Film Resistor ±25ppm/℃ ±0.1% 0603 Chip Resistor - Surface Mount
0603Active
RES 1.8kΩ ±0.1% 62.5mW 0603
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0603B1K8E1
- Store part #
- C4349778
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C4349778
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.90 | ₹53.90 |
| 10+ | ₹42.16 | ₹421.60 |
| 30+ | ₹36.95 | ₹1,108.50 |
| 100+ | ₹30.64 | ₹3,064.00 |
| 500+ | ₹27.82 | ₹13,910.00 |
| 1,000+ | ₹26.08 | ₹26,080.00 |
1 × ₹53.90
₹53.90
excl. GST
₹63.60 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0603B1K8E1
₹53.90 for 1 + GST
Specifications
- Power(Watts)
- 62.5mW
- Resistance
- 1.8kΩ
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.39 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TC0325B1801T5F#C2989390UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 4,850 | ₹2.55 · 4,850 in stock | View |
 | ERA3AEB182V#C473233PANASONIC · 0603 | PANASONIC | 0603 | 3,880 | ₹10.16 · 3,880 in stock | View |
 | AT0603BRD071K8L#C5455503YAGEO · 0603 | YAGEO | 0603 | 2,730 | ₹11.88 · 2,730 in stock | View |
 | TD03G1801BT#C666948FH · 0603 | FH | 0603 | 11,820 | ₹4.71 · 11,820 in stock | View |
 | RT0603BRD071K8L#C705745YAGEO · 0603 | YAGEO | 0603 | 1,51,120 | ₹4.70 · 1,51,120 in stock | View |
