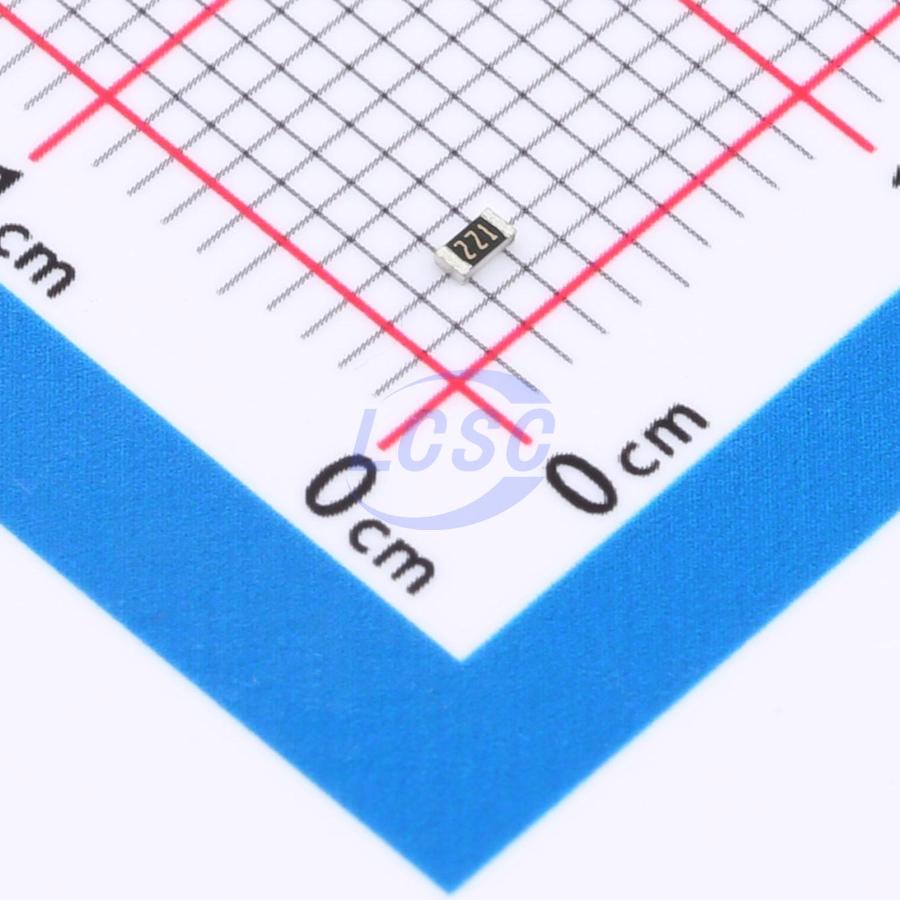

CPF0603B220RE1
63mW 220Ω 50V Thin Film Resistor ±25ppm/℃ ±0.1% 0603 Chip Resistor - Surface Mount RoHS
RES 220Ω ±0.1% 63mW 0603
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0603B220RE1
- Store part #
- C6145576
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C6145576
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.08 | ₹105.40 |
| 50+ | ₹20.53 | ₹1,026.50 |
| 150+ | ₹20.18 | ₹3,027.00 |
| 500+ | ₹19.82 | ₹9,910.00 |
5 × ₹21.08
₹105.40
excl. GST
₹124.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0603B220RE1
₹105.40 for 5 + GST
Specifications
- Power(Watts)
- 63mW
- Resistance
- 220Ω
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | AR03BTCX2200#C318124Viking · 0603 | Viking | 0603 | 10,440 | ₹4.11 · 10,440 in stock | View |
 | ERA3AEB221V#C445625PANASONIC · 0603 | PANASONIC | 0603 | 1,180 | ₹12.03 · 1,180 in stock | View |
 | AT0603BRD07220RL#C5455492YAGEO · 0603 | YAGEO | 0603 | 890 | ₹11.85 · 890 in stock | View |
 | RT0603BRD07220RL#C861232YAGEO · 0603 | YAGEO | 0603 | 28,340 | ₹6.79 · 28,340 in stock | View |
 | TNPW0603220RBEEA#C2078993VISHAY · 0603 | VISHAY | 0603 | 12 | ₹50.57 · 12 in stock | View |
