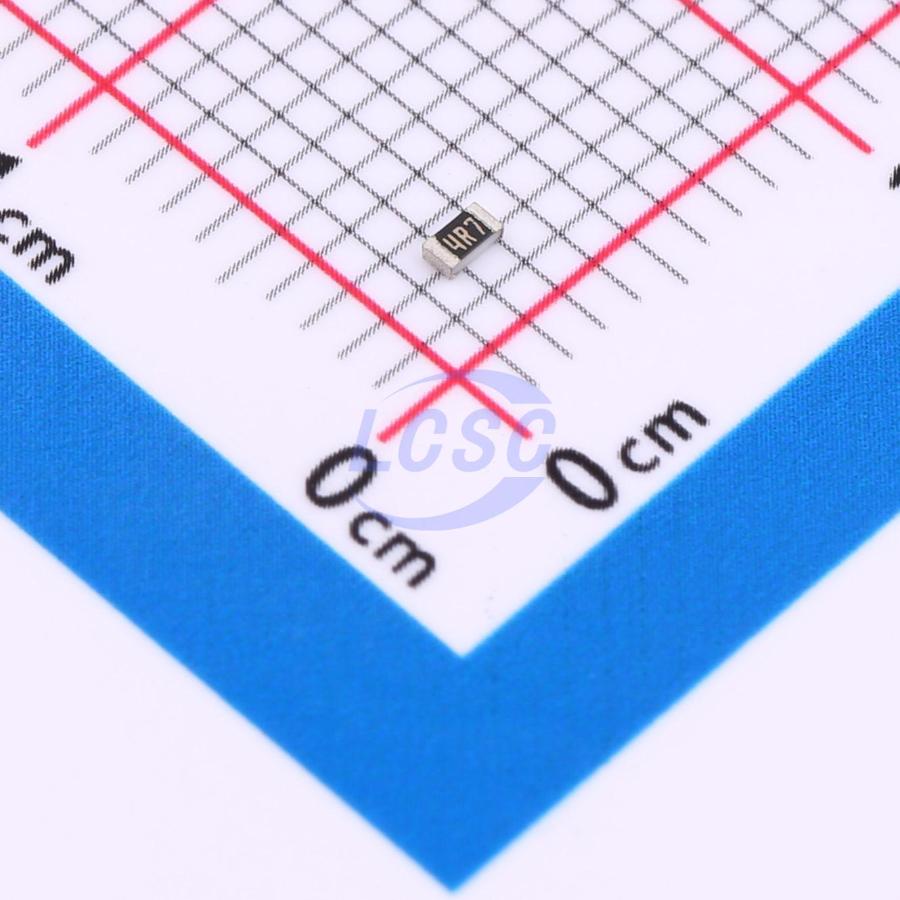

CPF0603B4R7E1
4.7Ω 63mW 50V Thin Film Resistor ±25ppm/℃ ±0.1% 0603 Chip Resistor - Surface Mount RoHS
RES 4.7Ω ±0.1% 63mW 0603
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0603B4R7E1
- Store part #
- C6155608
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
75 in stock
#C6155608
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.53 | ₹137.65 |
| 50+ | ₹26.91 | ₹1,345.50 |
| 150+ | ₹26.50 | ₹3,975.00 |
| 500+ | ₹26.09 | ₹13,045.00 |
5 × ₹27.53
₹137.65
excl. GST
₹162.43 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0603B4R7E1
₹137.65 for 5 + GST
Specifications
- Resistance
- 4.7Ω
- Power(Watts)
- 63mW
- Voltage Rating
- 50V
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.189 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ARG03BTC4R70#C2684556Viking · 0603 | Viking | 0603 | 2,500 | ₹3.76 · 2,500 in stock | View |
 | AR03BTCX4R70#C2902630Viking · 0603 | Viking | 0603 | 4,960 | ₹4.52 · 4,960 in stock | View |
 | TC0325B470KT5F#C53109406UNI-ROYAL · 0603 | UNI-ROYAL | 0603 | 1,500 | ₹2.70 · 1,500 in stock | View |
 | RT0603BRD074R7L#C861448YAGEO · 0603 | YAGEO | 0603 | 14,600 | ₹6.01 · 14,600 in stock | View |
| RNCF0603BTE4R70#C2498567SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | On request | Price on request | Quote | |
