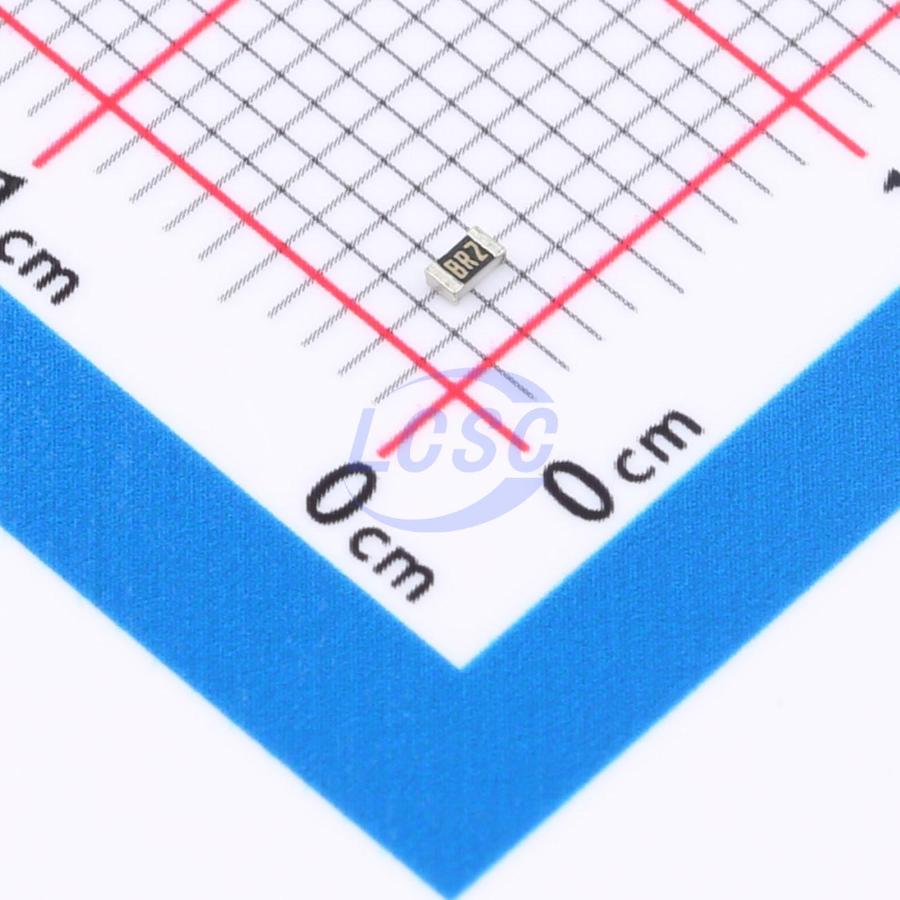

CPF0603B8R2E1
62.5mW 8.2Ω 50V Thin Film Resistor ±25ppm/℃ ±0.1% 0603 Chip Resistor - Surface Mount RoHS
RES 8.2Ω ±0.1% 62.5mW 0603
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0603B8R2E1
- Store part #
- C3941601
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5 in stock
#C3941601
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹50.82 | ₹50.82 |
1 × ₹50.82
₹50.82
excl. GST
₹59.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0603B8R2E1
₹50.82 for 1 + GST
Specifications
- Power(Watts)
- 62.5mW
- Resistance
- 8.2Ω
- Voltage Rating
- 50V
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.015 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT0603BRD078R2L#C861594YAGEO · 0603 | YAGEO | 0603 | 3,000 | ₹6.87 · 3,000 in stock | View |
| RNCF0603BKE8R20#C2512832SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | On request | Price on request | Quote | |
| RNCF0603BTE8R20#C4064399SEI(Stackpole Electronics Inc.) · 0603 | SEI(Stackpole Electronics Inc.) | 0603 | On request | Price on request | Quote | |
| TNPW06038R20BEEA#C1716825VISHAY · 0603 | VISHAY | 0603 | On request | Price on request | Quote | |
| RT0603BRC078R2L#C1702134YAGEO · 0603 | YAGEO | 0603 | On request | Price on request | Quote | |
