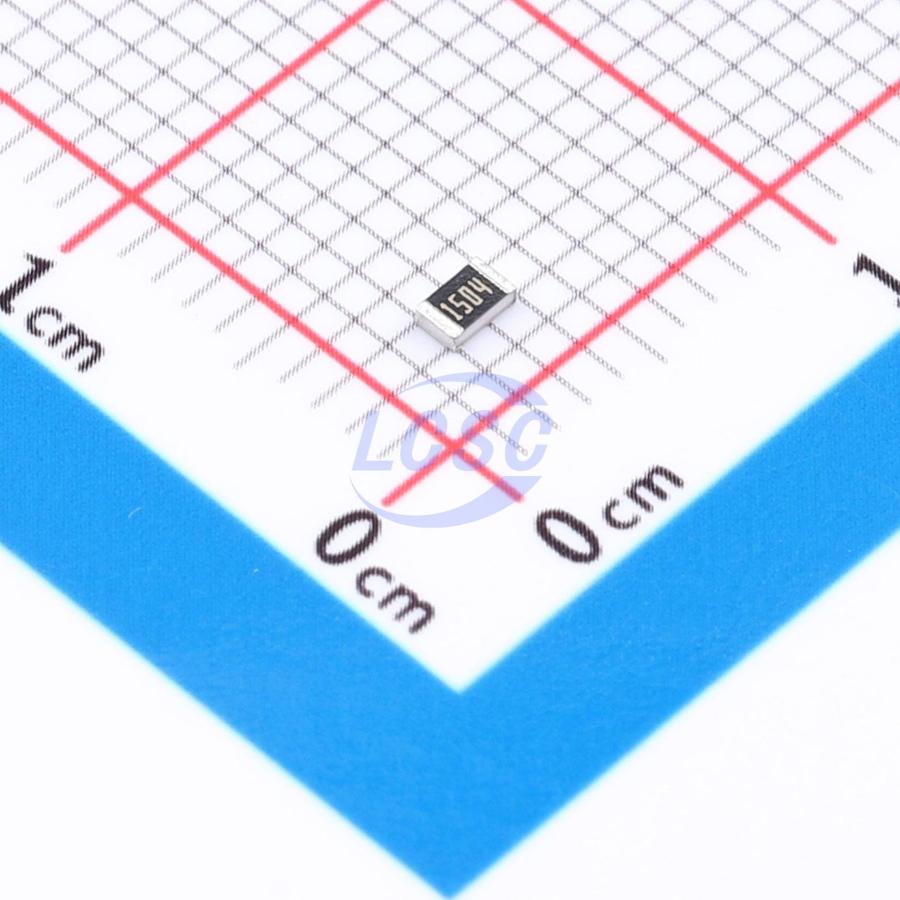

CPF0805B1M5E1
100mW 1.5MΩ Thin Film Resistor ±25ppm/℃ ±0.1% 0805 Chip Resistor - Surface Mount RoHS
RES 1.5MΩ ±0.1% 100mW 0805
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0805B1M5E1
- Store part #
- C4223894
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
580 in stock
#C4223894
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹45.52 | ₹227.60 |
| 50+ | ₹36.22 | ₹1,811.00 |
| 150+ | ₹32.24 | ₹4,836.00 |
| 1,000+ | ₹27.27 | ₹27,270.00 |
| 2,000+ | ₹25.04 | ₹50,080.00 |
| 5,000+ | ₹23.72 | ₹1,18,600.00 |
5 × ₹45.52
₹227.60
excl. GST
₹268.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0805B1M5E1
₹227.60 for 5 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 1.5MΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.059 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CPF0805B1M5E#C4139656TE Connectivity · 0805 | TE Connectivity | 0805 | 40 | ₹22.03 · 40 in stock | View |
| TC0525B1504T5G#C7431049UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 65 | ₹20.28 · 65 in stock | View | |
 | RT0805BRD071M5L#C865285YAGEO · 0805 | YAGEO | 0805 | 16,870 | ₹8.02 · 16,870 in stock | View |
 | PTFR0805B1M50P9#C47115976RESI · 0805 | RESI | 0805 | 1,215 | ₹19.85 · 1,215 in stock | View |
| RNCF0805BKE1M50#C2523479SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | On request | Price on request | Quote | |
