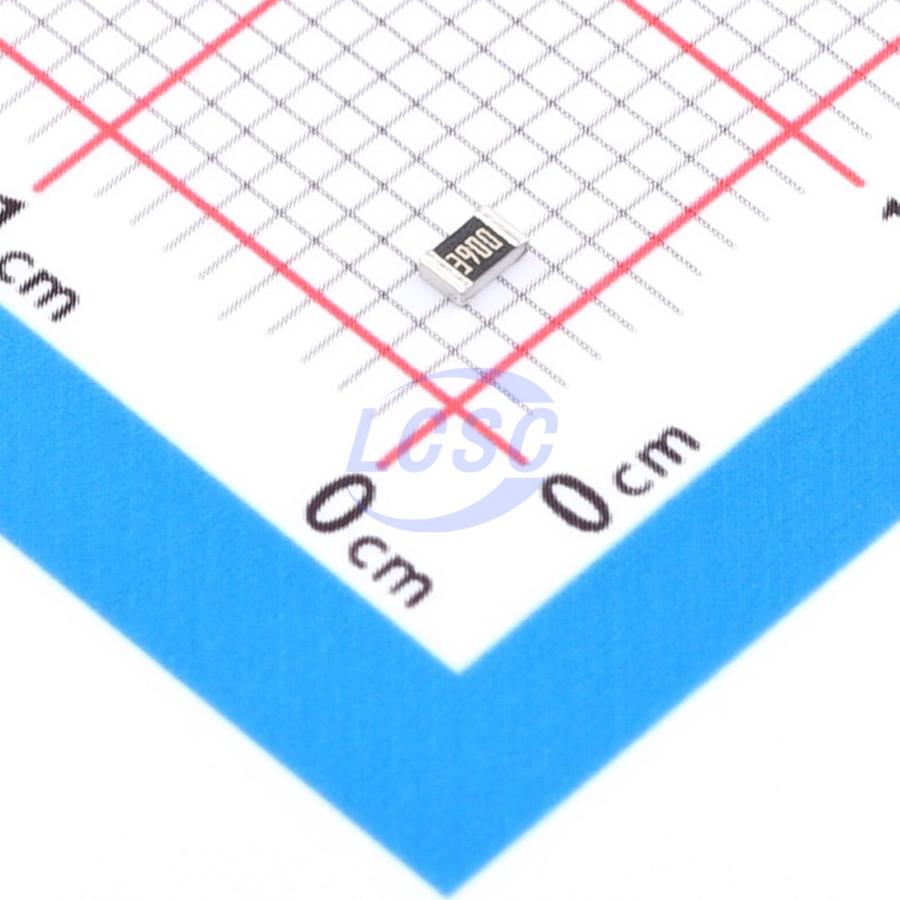

CPF0805B390RE1
100mW 390Ω Thin Film Resistor ±25ppm/℃ ±0.1% 0805 Chip Resistor - Surface Mount RoHS
RES 390Ω ±0.1% 100mW 0805
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0805B390RE1
- Store part #
- C6145577
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
74 in stock
#C6145577
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹33.45 | ₹33.45 |
| 10+ | ₹32.81 | ₹328.10 |
| 30+ | ₹32.37 | ₹971.10 |
| 100+ | ₹31.95 | ₹3,195.00 |
1 × ₹33.45
₹33.45
excl. GST
₹39.47 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0805B390RE1
₹33.45 for 1 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 390Ω
- Operating Temperature
- -55℃~+155℃
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.059 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RT0805BRD07390RL#C865445YAGEO · 0805 | YAGEO | 0805 | 700 | ₹6.69 · 700 in stock | View |
 | PTFR0805B390RP9#C2849203RESI · 0805 | RESI | 0805 | 225 | ₹19.79 · 225 in stock | View |
 | ERA6VEB3900V#C543710PANASONIC · 0805 | PANASONIC | 0805 | 3,415 | ₹58.46 · 3,415 in stock | View |
 | PTFR0805B390RN9#C351572RESI · 0805 | RESI | 0805 | 2,175 | ₹26.39 · 2,175 in stock | View |
 | PTFR0805B390RV9#C19700216RESI · 0805 | RESI | 0805 | 4,484 | ₹96.33 · 4,484 in stock | View |
