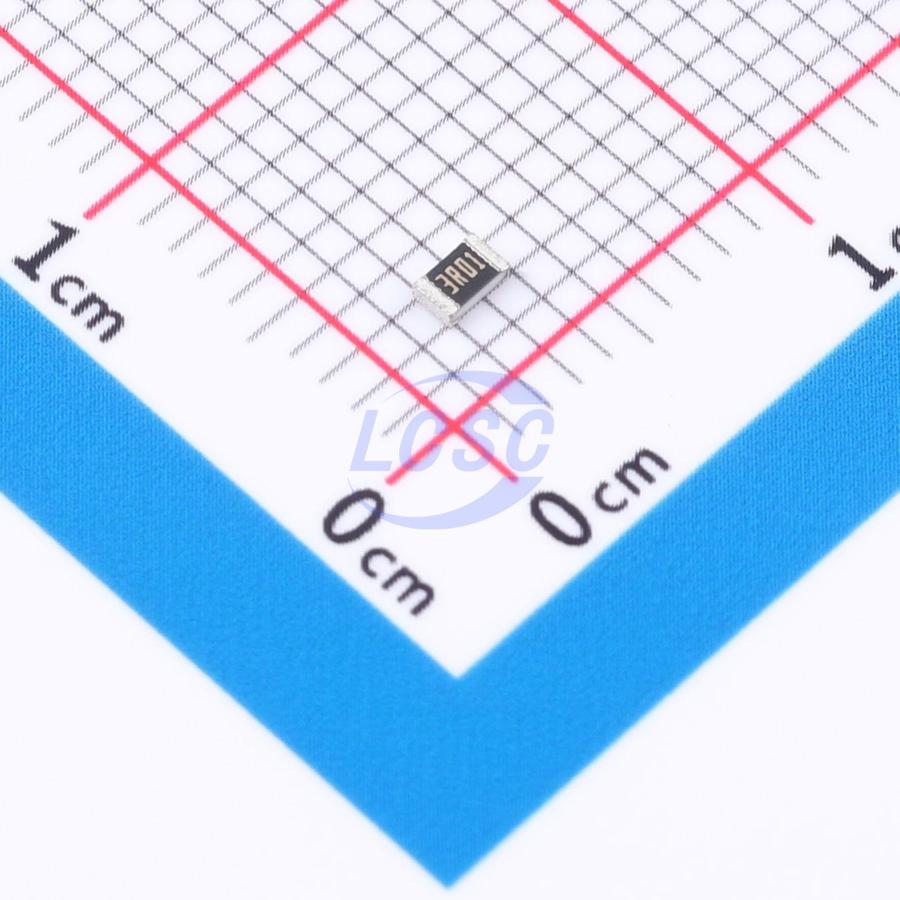

CPF0805B3R01E1
3.01Ω 100mW 100V Thin Film Resistor ±25ppm/℃ ±0.1% 0805 Chip Resistor - Surface Mount RoHS
RES 3.01Ω ±0.1% 100mW 0805
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CPF0805B3R01E1
- Store part #
- C3954577
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
108 in stock
#C3954577
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹89.99 | ₹89.99 |
| 10+ | ₹74.15 | ₹741.50 |
| 30+ | ₹66.35 | ₹1,990.50 |
| 100+ | ₹58.33 | ₹5,833.00 |
| 500+ | ₹53.78 | ₹26,890.00 |
| 1,000+ | ₹51.39 | ₹51,390.00 |
1 × ₹89.99
₹89.99
excl. GST
₹106.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CPF0805B3R01E1
₹89.99 for 1 + GST
Specifications
- Resistance
- 3.01Ω
- Power(Watts)
- 100mW
- Voltage Rating
- 100V
- Type
- Thin Film Resistor
- Temperature Coefficient
- ±25ppm/℃
- Tolerance
- ±0.1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.059 g
Overview
The CPF series is a high-stability precision chip resistor series offering different power dissipation ratings across various chip sizes. The CPF series features a TCR as low as 15ppm/°C and resistance tolerance down to 0.1%. Standard values are within the IEC 63 E96 and E24 value grids. The CPF features precise and uniform physical dimensions for easy SMT placement.
Applications
- Communications, Industrial Control, Instrumentation, Medical
Key features
- Thin film precision resistors, TCR as low as 15ppm, tolerance as low as 0.05%
- Case sizes ranging from 0201 to 2512
- Suitable for all applications requiring extremely high precision and stability
- Terminal finish: 100% matte tin plating
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CPF0805B3R01E#C3922182TE Connectivity · 0805 | TE Connectivity | 0805 | On request | Price on request | Quote | |
| RT0805BRD073R01L#C20165813YAGEO · 0805 | YAGEO | 0805 | On request | Price on request | Quote | |
| RT0805BRE073R01L#C6460784YAGEO · 0805 | YAGEO | 0805 | On request | Price on request | Quote | |
