VenkelDatasheet (PDF)

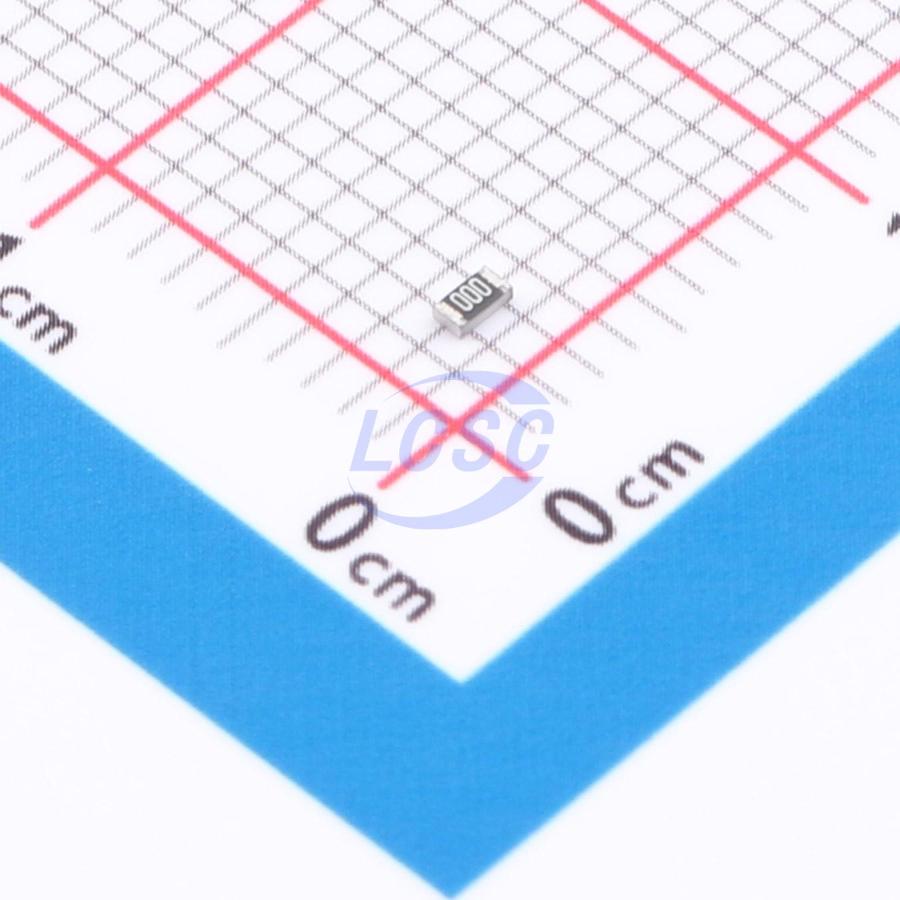

CR0603-16W-000T
0Ω 62.5mW 75V Thick Film Resistor 0603 Chip Resistor - Surface Mount RoHS
0603ROHS3 CompliantActive
RES 0Ω 62.5mW 0603
- Manufacturer
- Venkel
- Manufacturer part #
- CR0603-16W-000T
- Store part #
- C4070323
- Package / case
- 0603
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,200 in stock
#C4070323
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.3175 | ₹31.75 |
| 1,000+ | ₹0.2514 | ₹251.40 |
| 5,000+ | ₹0.1985 | ₹992.50 |
| 10,000+ | ₹0.1852 | ₹1,852.00 |
| 50,000+ | ₹0.1588 | ₹7,940.00 |
100 × ₹0.3175
₹31.75
excl. GST
₹37.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CR0603-16W-000T
₹31.75 for 100 + GST
Specifications
- Resistance
- 0Ω
- Power(Watts)
- 62.5mW
- Voltage Rating
- 75V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.027 g
Overview
Key features
- TCR as low as 100ppm
- Size range from 01005 to 2512
- Stable across temperature range
- Halogen-free
- Good power dissipation capability (conservatively rated power rating)
- 100% matte tin over nickel plating with wraparound termination, excellent solderability
- Select resistance values suitable for conductive epoxy applications (suitable for MRI applications)
