VenkelDatasheet (PDF)

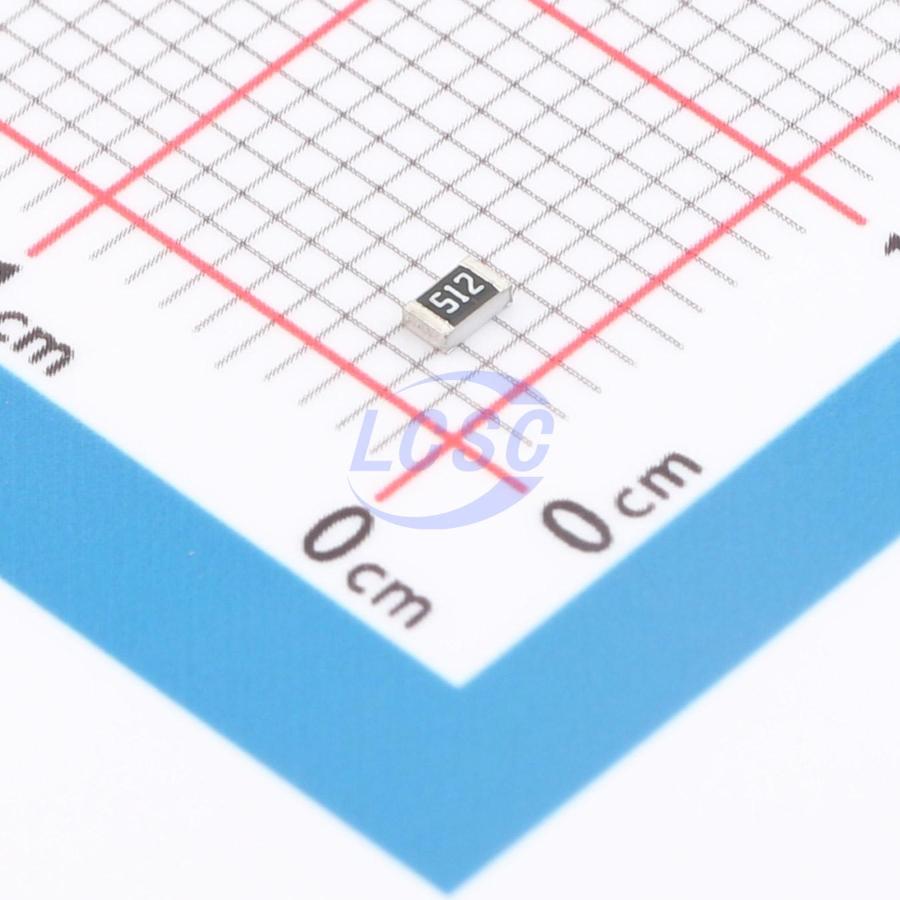

CR0805-10W-512JT
100mW 5.1kΩ Thick Film Resistor ±5% ±200ppm/℃ 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 5.1kΩ ±5% 100mW 0805
- Manufacturer
- Venkel
- Manufacturer part #
- CR0805-10W-512JT
- Store part #
- C4344922
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,600 in stock
#C4344922
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.6615 | ₹66.15 |
| 1,000+ | ₹0.5292 | ₹529.20 |
| 5,000+ | ₹0.4366 | ₹2,183.00 |
| 10,000+ | ₹0.3969 | ₹3,969.00 |
| 50,000+ | ₹0.3572 | ₹17,860.00 |
| 1,00,000+ | ₹0.3308 | ₹33,080.00 |
100 × ₹0.6615
₹66.15
excl. GST
₹78.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CR0805-10W-512JT
₹66.15 for 100 + GST
Specifications
- Power(Watts)
- 100mW
- Resistance
- 5.1kΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.028 g
Overview
Key features
- TCR as low as 100ppm
- Size range from 01005 to 2512
- Stable across temperature range
- Halogen-free
- Good power dissipation capability (conservatively rated power rating)
- 100% matte tin over nickel plating with wraparound termination, excellent solderability
- Select resistance values suitable for conductive epoxy applications (suitable for MRI applications)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJ6GEYJ512V#C230649PANASONIC · 0805 | PANASONIC | 0805 | 4,200 | ₹1.27 · 4,200 in stock | View |
 | RMCF0805JT5K10#C237140SEI(Stackpole Electronics Inc.) · 0805 | SEI(Stackpole Electronics Inc.) | 0805 | 4,500 | ₹0.8335 · 4,500 in stock | View |
 | CR0805-JW-512ELF#C49674959BOURNS · 0805 | BOURNS | 0805 | 120 | ₹4.63 · 120 in stock | View |
 | ESR10EZPJ512#C2085709ROHM · 0805 | ROHM | 0805 | 2,500 | ₹1.32 · 2,500 in stock | View |
 | SDR10EZPJ512#C20110095ROHM · 0805 | ROHM | 0805 | 5 | ₹17.65 · 5 in stock | View |
