VenkelDatasheet (PDF)

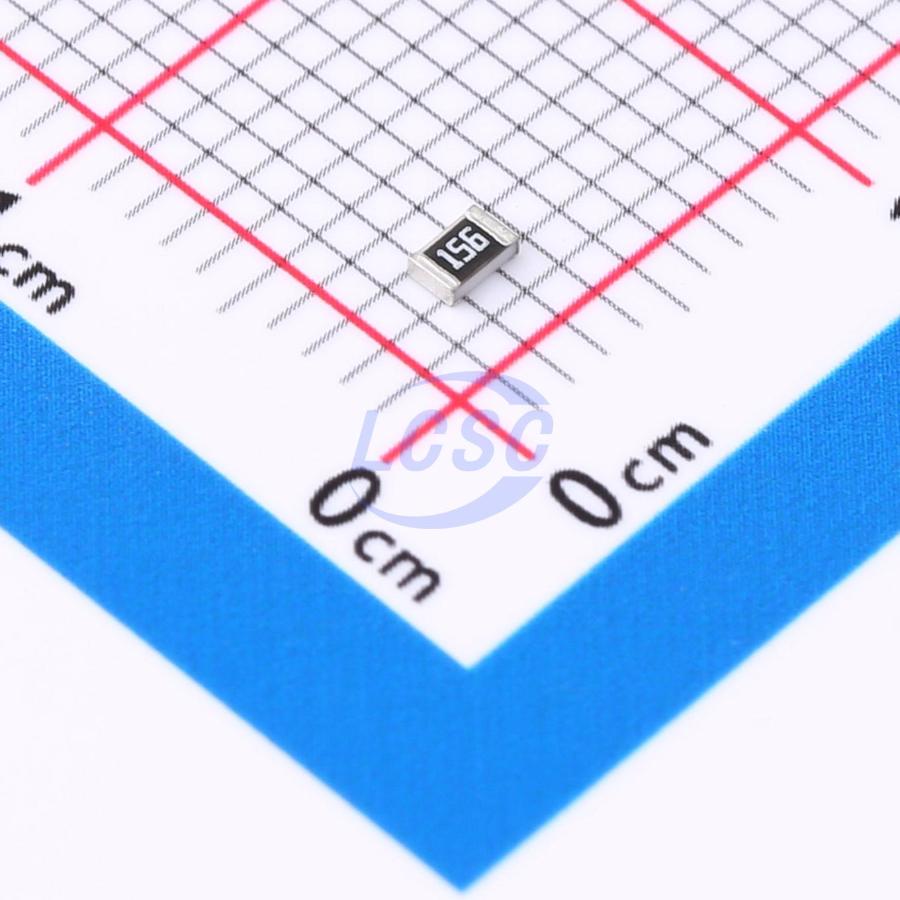

CR0805-8W-156JT
15MΩ 125mW Thick Film Resistor ±5% ±350ppm/℃ 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 15MΩ ±5% 125mW 0805
- Manufacturer
- Venkel
- Manufacturer part #
- CR0805-8W-156JT
- Store part #
- C4181305
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,450 in stock
#C4181305
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.08 | ₹104.00 |
| 500+ | ₹1.65 | ₹825.00 |
| 1,500+ | ₹1.42 | ₹2,130.00 |
| 5,000+ | ₹1.27 | ₹6,350.00 |
| 25,000+ | ₹1.15 | ₹28,750.00 |
| 50,000+ | ₹1.08 | ₹54,000.00 |
50 × ₹2.08
₹104.00
excl. GST
₹122.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CR0805-8W-156JT
₹104.00 for 50 + GST
Specifications
- Resistance
- 15MΩ
- Power(Watts)
- 125mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±350ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.033 g
Overview
Key features
- TCR as low as 100ppm
- Size range from 01005 to 2512
- Stable across temperature range
- Halogen-free
- Good power dissipation capability (conservatively rated power rating)
- 100% matte tin over nickel plating with wraparound termination, excellent solderability
- Select resistance values suitable for conductive epoxy applications (suitable for MRI applications)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RC0805JR-0715ML#C274915YAGEO · 0805 | YAGEO | 0805 | 2,300 | ₹0.9923 · 2,300 in stock | View |
 | FRG0805J156TS#C3000687FOJAN · 0805 | FOJAN | 0805 | 30,300 | ₹0.5027 · 30,300 in stock | View |
 | SCR0805J15M#C3017929VO · 0805 | VO | 0805 | 100 | ₹0.3572 · 100 in stock | View |
 | FRG0805F1505TS#C55348490FOJAN · 0805 | FOJAN | 0805 | 4,850 | ₹1.69 · 4,850 in stock | View |
 | 0805W8F1505T5E#C42861UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | On request | ₹0.8335 · 0 in stock | View |
