VenkelDatasheet (PDF)

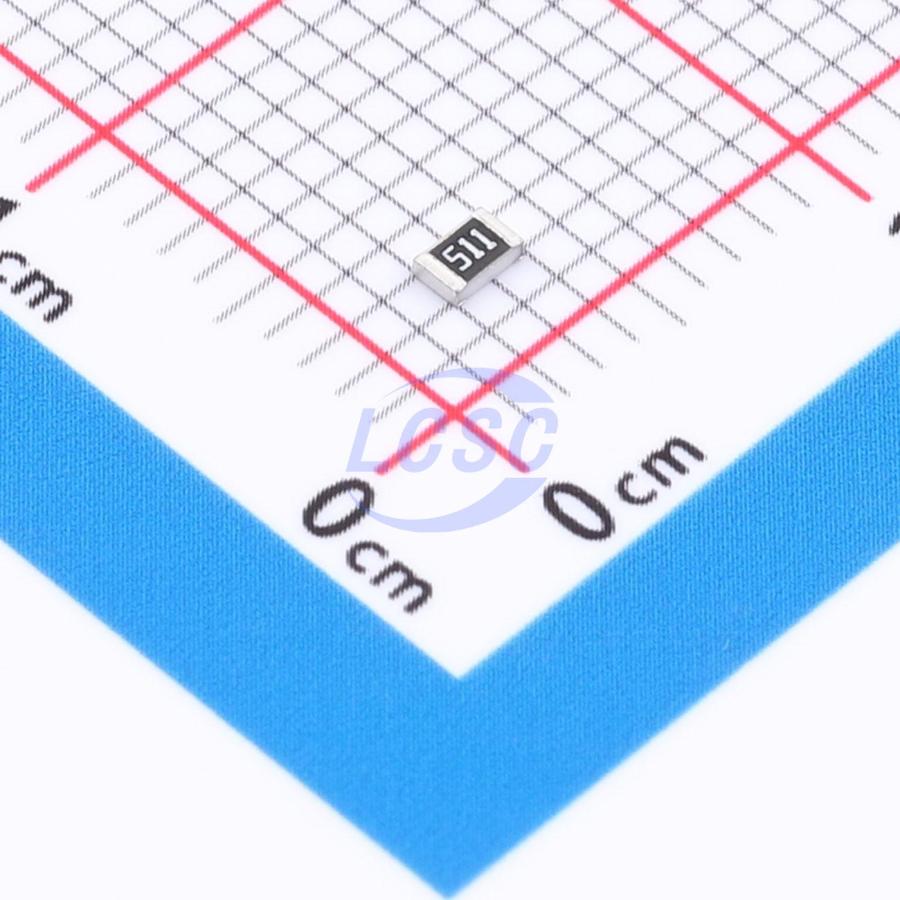

CR0805-8W-511JT
125mW 510Ω Thick Film Resistor ±5% ±200ppm/℃ 0805 Chip Resistor - Surface Mount RoHS
0805ROHS3 CompliantActive
RES 510Ω ±5% 125mW 0805
- Manufacturer
- Venkel
- Manufacturer part #
- CR0805-8W-511JT
- Store part #
- C4183561
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
950 in stock
#C4183561
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹1.44 | ₹72.00 |
| 500+ | ₹1.15 | ₹575.00 |
| 1,500+ | ₹0.979 | ₹1,468.50 |
| 5,000+ | ₹0.8864 | ₹4,432.00 |
| 25,000+ | ₹0.7938 | ₹19,845.00 |
| 50,000+ | ₹0.7541 | ₹37,705.00 |
50 × ₹1.44
₹72.00
excl. GST
₹84.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CR0805-8W-511JT
₹72.00 for 50 + GST
Specifications
- Power(Watts)
- 125mW
- Resistance
- 510Ω
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.033 g
Overview
Key features
- TCR as low as 100ppm
- Size range from 01005 to 2512
- Stable across temperature range
- Halogen-free
- Good power dissipation capability (conservatively rated power rating)
- 100% matte tin over nickel plating with wraparound termination, excellent solderability
- Select resistance values suitable for conductive epoxy applications (suitable for MRI applications)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| ERJP06J511V#C543456PANASONIC · 0805 | PANASONIC | 0805 | 1,300 | ₹3.07 · 1,300 in stock | View | |
 | CR0805J80511G#C102024LIZ · 0805 | LIZ | 0805 | 10,000 | ₹1.06 · 10,000 in stock | View |
 | RC0805JR-07510RL#C114744YAGEO · 0805 | YAGEO | 0805 | 55,500 | ₹1.02 · 55,500 in stock | View |
 | RS-05K511JT#C131389FH · 0805 | FH | 0805 | 43,300 | ₹0.3837 · 43,300 in stock | View |
 | CR0805J510RP05Z#C245427EVER OHMS · 0805 | EVER OHMS | 0805 | 100 | ₹0.3837 · 100 in stock | View |
