VenkelDatasheet (PDF)

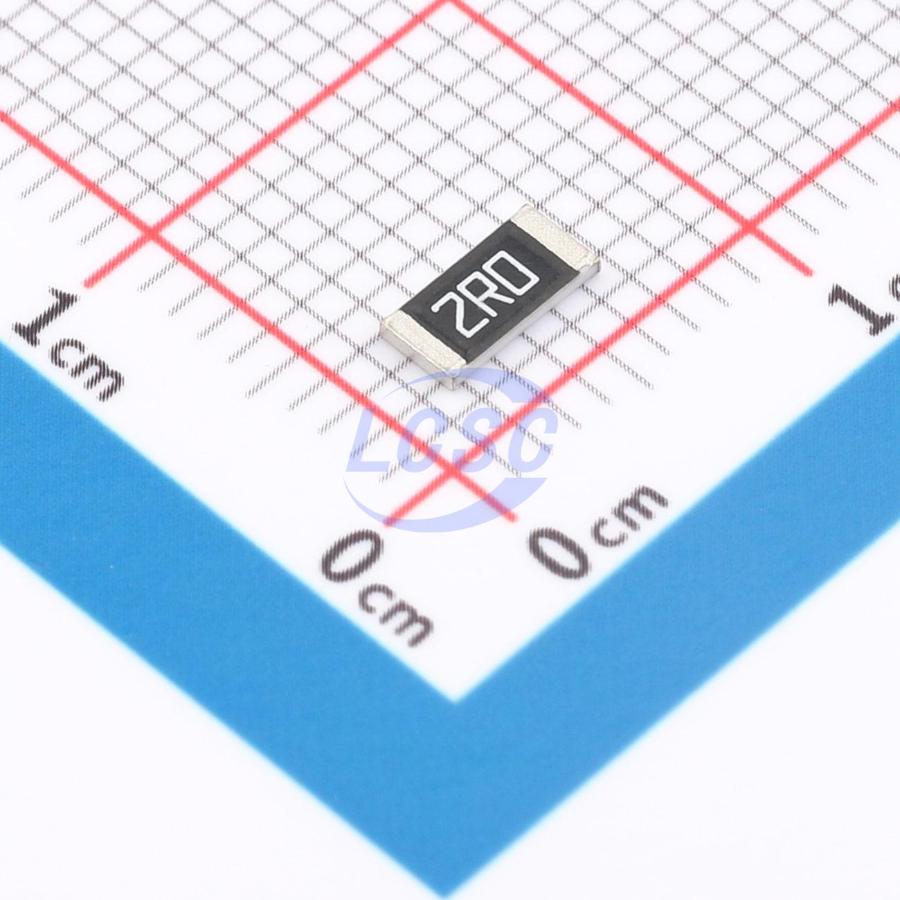

CR2010-1W-2R0JT
1W 2Ω Thick Film Resistor ±5% ±200ppm/℃ 2010 Chip Resistor - Surface Mount RoHS
2010ROHS3 CompliantActive
RES 2Ω ±5% 1W 2010
- Manufacturer
- Venkel
- Manufacturer part #
- CR2010-1W-2R0JT
- Store part #
- C4009668
- Package / case
- 2010
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,700 in stock
#C4009668
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.27 | ₹62.70 |
| 100+ | ₹4.95 | ₹495.00 |
| 300+ | ₹4.29 | ₹1,287.00 |
| 1,000+ | ₹3.80 | ₹3,800.00 |
| 4,000+ | ₹3.40 | ₹13,600.00 |
| 8,000+ | ₹3.20 | ₹25,600.00 |
10 × ₹6.27
₹62.70
excl. GST
₹73.99 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CR2010-1W-2R0JT
₹62.70 for 10 + GST
Specifications
- Power(Watts)
- 1W
- Resistance
- 2Ω
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.048 g
Overview
Key features
- TCR as low as 100ppm
- Size range from 01005 to 2512
- Stable across temperature range
- Halogen-free
- Good power dissipation capability (conservatively rated power rating)
- 100% matte tin over nickel plating with wraparound termination, excellent solderability
- Select resistance values suitable for conductive epoxy applications (suitable for MRI applications)
