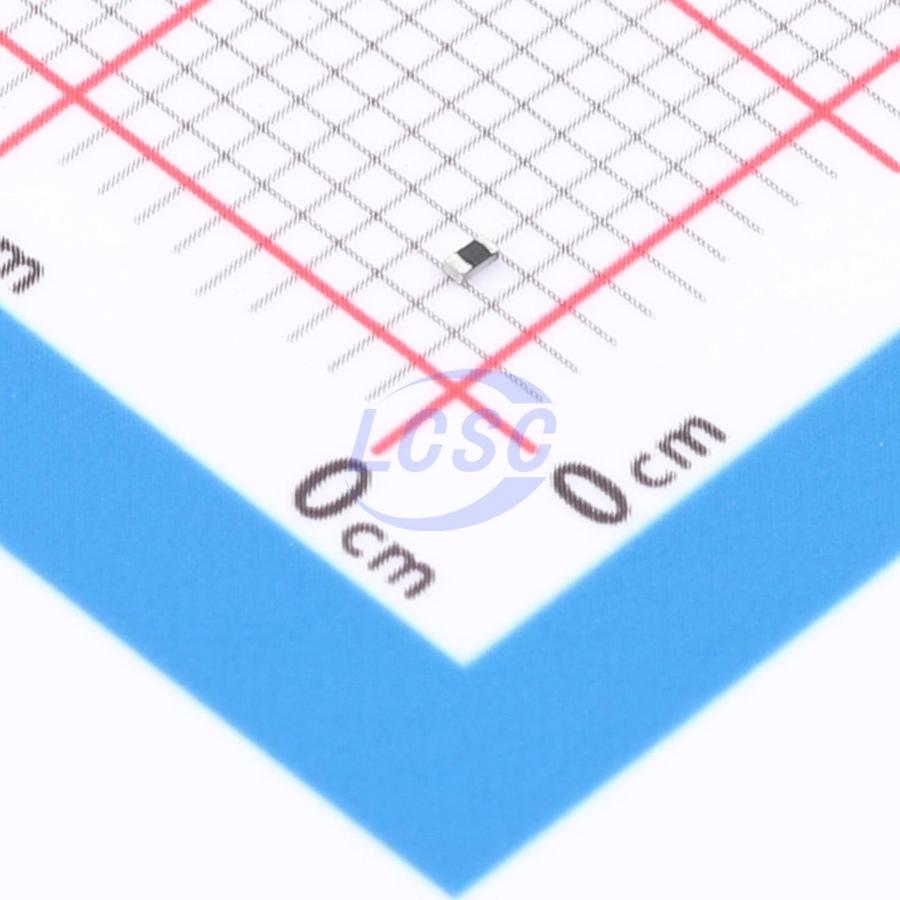

CRCW0402442KFKED
63mW 442kΩ Thick Film Resistor ±100ppm/℃ ±1% 0402 Chip Resistor - Surface Mount RoHS
RES 442kΩ ±1% 63mW 0402
- Manufacturer
- VISHAY
- Manufacturer part #
- CRCW0402442KFKED
- Store part #
- C5578673
- Package / case
- 0402
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,300 in stock
#C5578673
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 100+ | ₹0.4763 | ₹47.63 |
| 1,000+ | ₹0.4631 | ₹463.10 |
| 10,000+ | ₹0.4498 | ₹4,498.00 |
100 × ₹0.4763
₹47.63
excl. GST
₹56.20 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
CRCW0402442KFKED
₹47.63 for 100 + GST
Specifications
- Power(Watts)
- 63mW
- Resistance
- 442kΩ
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 100 (multiples of 100)
- Unit weight
- 0.01 g
Overview
The production process is strictly controlled, following an extensive set of instructions to ensure repeatability. Cermet film layers and glass overcoats are deposited onto advanced (Al₂O₃) ceramic substrates and their prefabricated internal contacts. A special laser is used to fine-tune the resistive layer smoothly to the target value without damaging the ceramic. The resistive element is covered by a protective coating for electrical, mechanical, and climatic protection. Terminals receive a final pure tin over nickel plating. Final production results are verified through an extensive testing program performed on 100% of individual chip resistors. Only conforming products are placed directly into tape reels in accordance with IEC 60286-3, Type 1a and Type 2a.
Applications
- Automotive, Industrial, Telecom
Key features
- Stability ΔR/R ≤ 1% under varying environmental conditions (rated power for 1000 hours at 70℃)
- 0603 size available with 2mm pitch package option
- AEC-Q200 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | ERJ2RKF4423X#C416541PANASONIC · 0402 | PANASONIC | 0402 | 7,400 | ₹0.9261 · 7,400 in stock | View |
 | FRC0402F4423TS#C48533794FOJAN · 0402 | FOJAN | 0402 | 1,33,100 | ₹0.1852 · 1,33,100 in stock | View |
 | RC-02K4423FT#C48971911FH · 0402 | FH | 0402 | 3,900 | ₹0.1985 · 3,900 in stock | View |
 | 0402WGF4423TCE#C5101UNI-ROYAL · 0402 | UNI-ROYAL | 0402 | 27,500 | ₹0.1852 · 27,500 in stock | View |
| CRCW0402442KFKEDC#C4080921VISHAY · 0402 | VISHAY | 0402 | On request | Price on request | Quote | |
