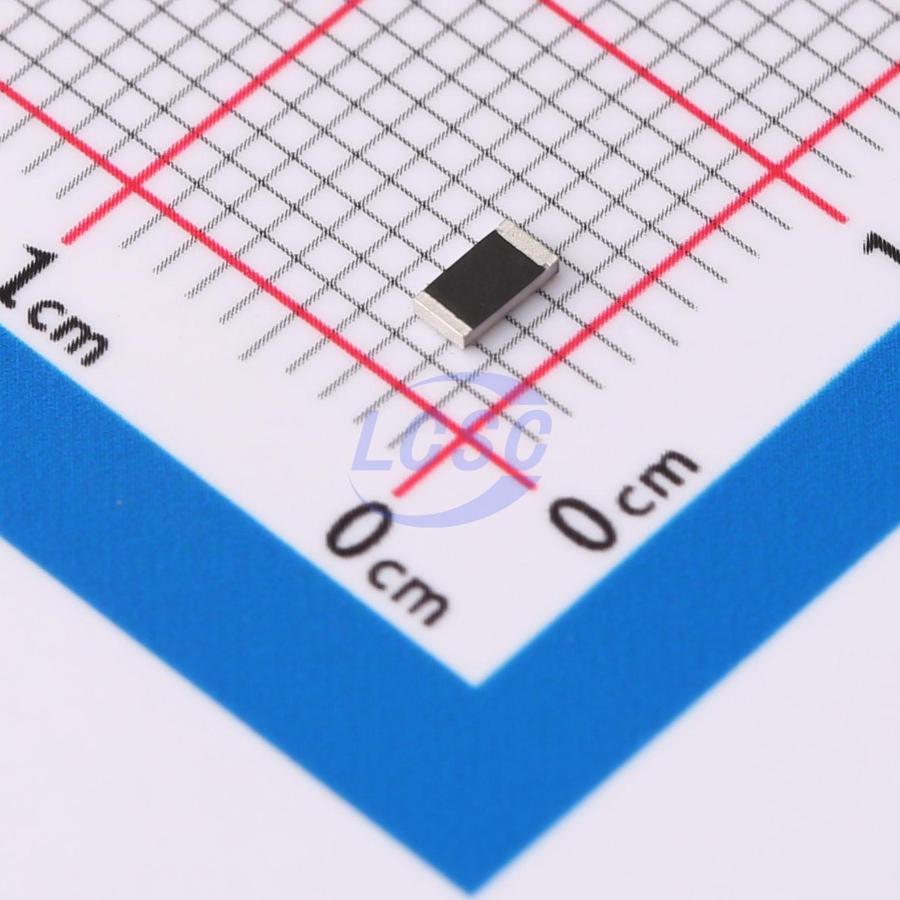

CRCW1206120RFKEAHP
120Ω 750mW Thick Film Resistor ±100ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
RES 120Ω ±1% 750mW 1206
- Manufacturer
- VISHAY
- Manufacturer part #
- CRCW1206120RFKEAHP
- Store part #
- C5578739
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,630 in stock
#C5578739
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.57 | ₹95.70 |
| 100+ | ₹7.79 | ₹779.00 |
| 300+ | ₹6.91 | ₹2,073.00 |
| 1,000+ | ₹6.24 | ₹6,240.00 |
| 5,000+ | ₹5.70 | ₹28,500.00 |
| 10,000+ | ₹5.44 | ₹54,400.00 |
10 × ₹9.57
₹95.70
excl. GST
₹112.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CRCW1206120RFKEAHP
₹95.70 for 10 + GST
Specifications
- Resistance
- 120Ω
- Power(Watts)
- 750mW
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The production process is strictly controlled and follows an extensive set of instructions to ensure repeatability. Cermet film layers and glass cover layers are deposited on both sides of a high-grade (Al₂O₃) ceramic substrate, with prefabricated internal contacts on both sides of the substrate. A special laser is used to fine-trim the resistive layer to achieve the target resistance value without damaging the ceramic. The resistive element is covered by a protective coating for electrical, mechanical, and climatic protection. Terminations are finished with pure tin plating over nickel. Final production results are verified by an extensive test program performed on 100% of individual chip resistors. Only conforming products are placed directly into carrier tape in accordance with IEC 60286-3 Type 1a and Type 2a.
Applications
- Automotive, Industrial, Commercial, High Power
Key features
- Excellent pulse load capability
- Enhanced power rating
- Double-sided printed resistive element
- AEC-Q200 qualified
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CMP1206AFX-1200ELF#C19946334BOURNS · 1206 | BOURNS | 1206 | On request | Price on request | Quote | |
| CHP1206-FX-1200ELF#C5619609BOURNS · 1206 | BOURNS | 1206 | On request | Price on request | Quote | |
| SR1206FR-7T120RL#C5901433YAGEO · 1206 | YAGEO | 1206 | On request | Price on request | Quote | |
| RPC1206FT120R-UP#C6987181SEI(Stackpole Electronics Inc.) · 1206 | SEI(Stackpole Electronics Inc.) | 1206 | On request | Price on request | Quote | |
| WK73R2BTTD1200D#C6025424KOA · SMD,3.2x1.6mm | KOA | SMD,3.2x1.6mm | On request | Price on request | Quote | |
