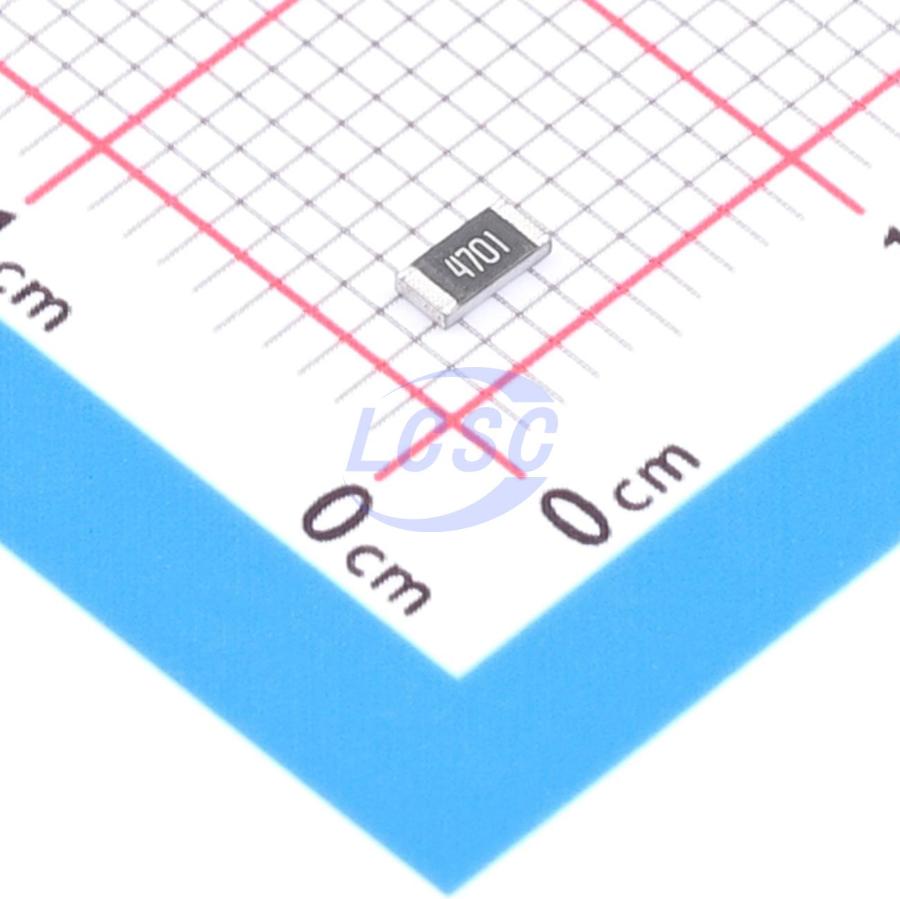

CRGH1206F4K7
500mW 4.7kΩ 200V Thick Film Resistor ±1% 1206 Chip Resistor - Surface Mount
- Manufacturer
- TE Connectivity
- Manufacturer part #
- CRGH1206F4K7
- Store part #
- C23184260
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
500 in stock
#C23184260
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.63 | ₹96.30 |
| 100+ | ₹7.75 | ₹775.00 |
| 300+ | ₹6.81 | ₹2,043.00 |
| 1,000+ | ₹6.11 | ₹6,110.00 |
| 5,000+ | ₹5.56 | ₹27,800.00 |
| 10,000+ | ₹5.27 | ₹52,700.00 |
10 × ₹9.63
₹96.30
excl. GST
₹113.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per bag
CRGH1206F4K7
₹96.30 for 10 + GST
Specifications
- Power(Watts)
- 500mW
- Resistance
- 4.7kΩ
- Voltage Rating
- 200V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 5,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.052 g
Overview
The resistive element is formed using screen printing and sintering processes, with a passivation layer applied. Each resistor is laser-trimmed to achieve the required tolerance. Pre-cut ceramic substrates are diced into strips, end terminations are sintered, and the strips are then singulated into individual components. The final termination finish consists of matte tin electroplated over a nickel barrier layer. This high-power resistor is now AEC-Q200 qualified.
Key features
- High power-to-size ratio thick film resistors, ideal for industrial and general-purpose applications
- Resistance range from 1Ω to 10MΩ
- Seven package sizes
- Termination finish: matte tin over nickel
- AEC-Q200 qualified
- Moisture Sensitivity Level - MSL1
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CRGP1206F4K7#C2074453TE Connectivity · 1206 | TE Connectivity | 1206 | 90 | ₹25.22 · 90 in stock | View |
| CRS1206-FX-4701ELF#C2078907BOURNS · 1206 | BOURNS | 1206 | 270 | ₹22.00 · 270 in stock | View | |
 | FRP1206F4701TS#C54102245FOJAN · 1206 | FOJAN | 1206 | 13,500 | ₹1.03 · 13,500 in stock | View |
 | RC1206FR-7W4K7L#C6757641YAGEO · 1206 | YAGEO | 1206 | 4,700 | ₹3.72 · 4,700 in stock | View |
 | ESR18EZPF4701#C3994590ROHM · 1206 | ROHM | 1206 | 15 | ₹5.16 · 15 in stock | View |
