BOURNSDatasheet (PDF)

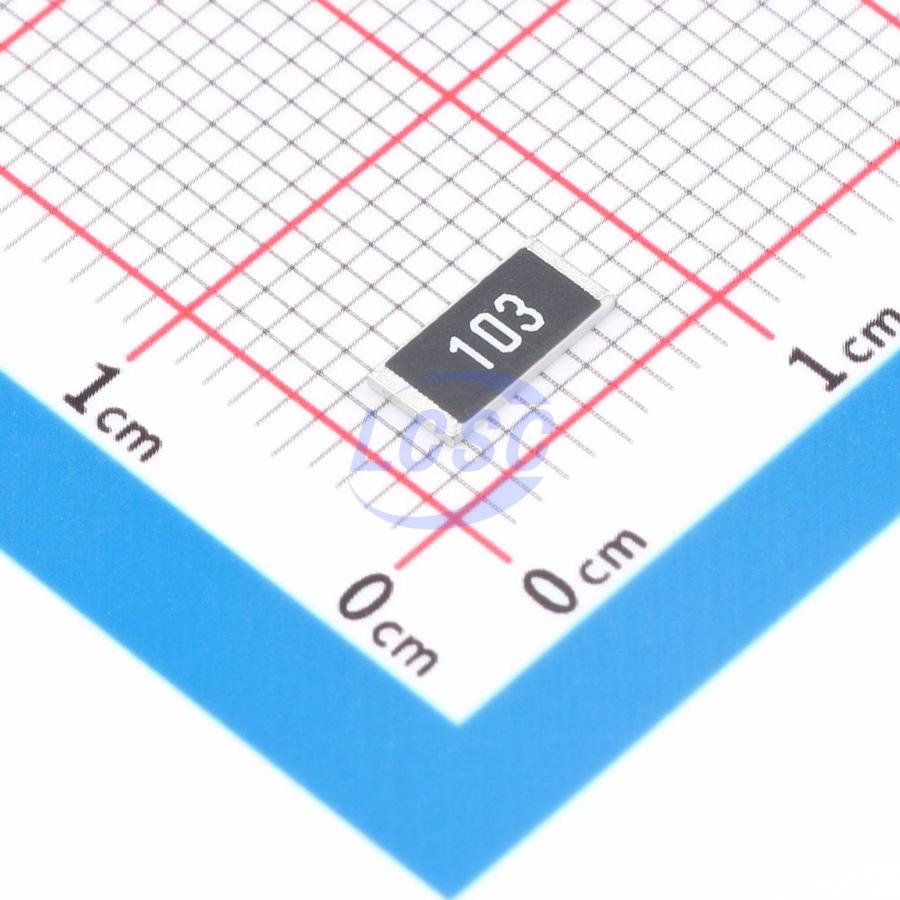

CRM2512-JW-103ELF
10kΩ 2W 300V Thick Film Resistor ±5% ±200ppm/℃ 2512 Chip Resistor - Surface Mount
2512RoHSActive
- Manufacturer
- BOURNS
- Manufacturer part #
- CRM2512-JW-103ELF
- Store part #
- C49671546
- Package / case
- 2512
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
105 in stock
#C49671546
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹51.17 | ₹255.85 |
| 50+ | ₹41.05 | ₹2,052.50 |
| 150+ | ₹36.71 | ₹5,506.50 |
| 500+ | ₹31.30 | ₹15,650.00 |
| 2,500+ | ₹28.89 | ₹72,225.00 |
| 4,000+ | ₹27.44 | ₹1,09,760.00 |
5 × ₹51.17
₹255.85
excl. GST
₹301.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
CRM2512-JW-103ELF
₹255.85 for 5 + GST
Specifications
- Resistance
- 10kΩ
- Power(Watts)
- 2W
- Voltage Rating
- 300V
- Type
- Thick Film Resistor
- Tolerance
- ±5%
- Temperature Coefficient
- ±200ppm/℃
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.32 g
Overview
Bourns CRM series are thick-film chip resistors with high power ratings, suitable for various applications in power circuits, including current sensing and current limiting.
Applications
- Current sensing, power supply, stepper motor drive, flyback power supply snubber resistor
Key features
- Thick film technology
- Rated power of 0.25, 0.5, or 1 watt at 70℃
- Low resistance values available
- RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CHP2512-JW-103ELF#C2088867BOURNS · 2512 | BOURNS | 2512 | 2,371 | ₹76.32 · 2,371 in stock | View |
 | CRM2512QJW-103ELF#C6538231BOURNS · 2512 | BOURNS | 2512 | 10 | ₹36.50 · 10 in stock | View |
 | HP122WF1002T4E#C2765765UNI-ROYAL · 2512 | UNI-ROYAL | 2512 | 17,095 | ₹11.85 · 17,095 in stock | View |
 | CRH2512J10K0E04Z#C149859EVER OHMS · 2512 | EVER OHMS | 2512 | 7,030 | ₹5.53 · 7,030 in stock | View |
 | 352210KJT#C6059658TE Connectivity · 2512 | TE Connectivity | 2512 | 14 | ₹99.89 · 14 in stock | View |
