UNI-ROYALDatasheet (PDF)

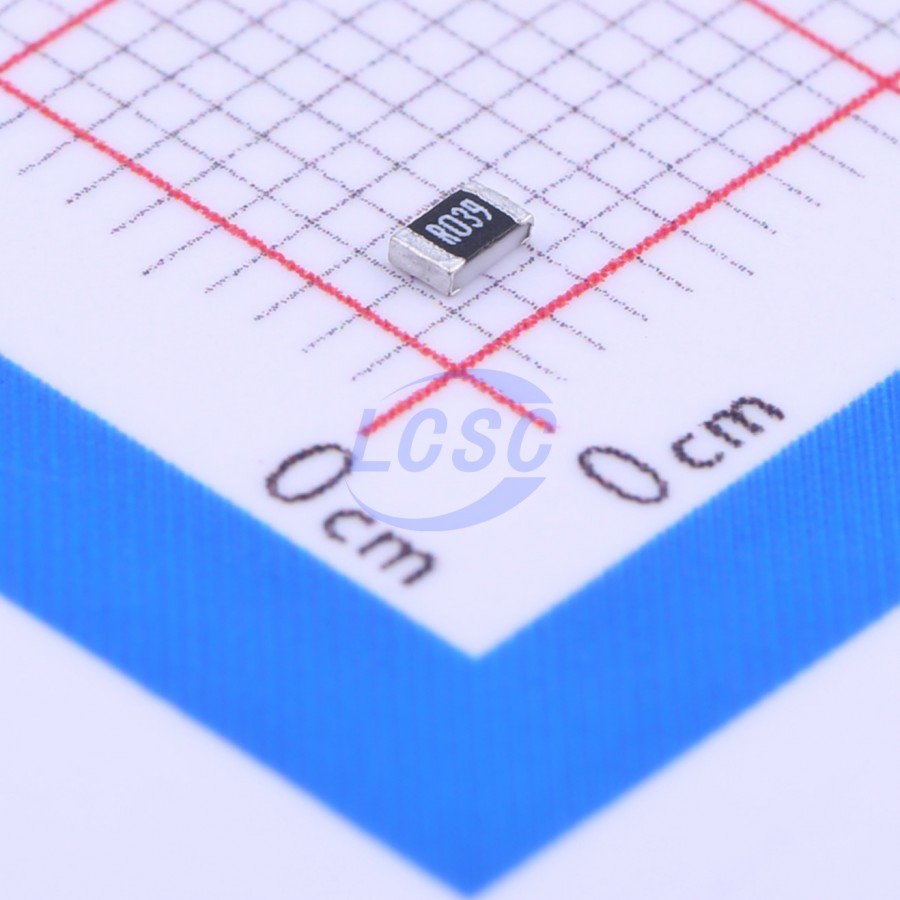

CS05W4F390MT5E
39mΩ ±1% 250mW 0805 Thick Film Resistor AEC-Q200
0805RoHSActive
RES 39mΩ ±1% 250mW 0805
- Manufacturer
- UNI-ROYAL
- Manufacturer part #
- CS05W4F390MT5E
- Store part #
- C270865
- Package / case
- 0805
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,140 in stock
#C270865
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.45 | ₹69.00 |
| 200+ | ₹2.77 | ₹554.00 |
| 600+ | ₹2.38 | ₹1,428.00 |
| 5,000+ | ₹1.83 | ₹9,150.00 |
| 10,000+ | ₹1.63 | ₹16,300.00 |
| 20,000+ | ₹1.52 | ₹30,400.00 |
20 × ₹3.45
₹69.00
excl. GST
₹81.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
CS05W4F390MT5E
₹69.00 for 20 + GST
Specifications
- Resistance
- 39mΩ
- Power(Watts)
- 250mW
- Voltage Rating
- 500V
- Operating Temperature
- -55℃~+155℃
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±400ppm/℃
- Tolerance
- ±1%
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.027 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HP05W3F390MT5E#C2759289UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | 3,920 | ₹4.52 · 3,920 in stock | View |
 | 0805W4F390MT5E#C2767497UNI-ROYAL · 0805 | UNI-ROYAL | 0805 | On request | Price on request | Quote |
