CS SemiconductorDatasheet (PDF)

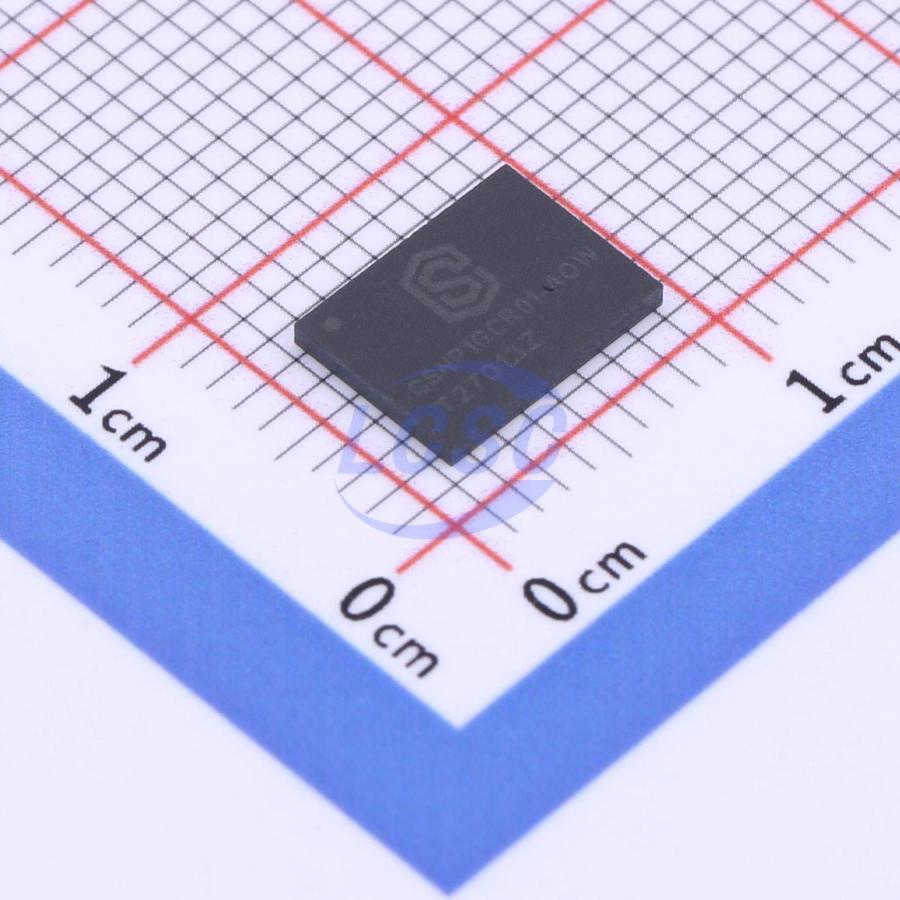

CSNP1GCR01-AOW
LGA-8(6x8) Memory RoHS
LGA-8(6x8)ROHS CompliantActive
1Gb 128MB SDNAND SD NAND SLC
- Manufacturer
- CS Semiconductor
- Manufacturer part #
- CSNP1GCR01-AOW
- Store part #
- C2838632
- Package / case
- LGA-8(6x8)
- Category
- Memory
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,757 in stock
#C2838632
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹977.41 | ₹977.41 |
| 10+ | ₹840.73 | ₹8,407.30 |
| 30+ | ₹757.29 | ₹22,718.70 |
| 100+ | ₹628.21 | ₹62,821.00 |
1 × ₹977.41
₹977.41
excl. GST
₹1,153.34 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 480 per tray
CSNP1GCR01-AOW
₹977.41 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- ECC error correction
- Voltage - Supply
- 15mA;2.7V~3.6V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 480 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.75 g
Overview
CSNP1GCR01-AOW is an 1Gb density of embedded storage based on NAND Flash and SD controller. This product has many advantages comparing to raw NAND, it has embedded bad block management, and stronger embedded ECC. Even on abnormal power down it still keep your data safely. CSNP1GCR01-AOW is LGA-8 package. The size is 8mm x 6mm x0.75mm.
Key features
- Interface: Standard SD Specification Version 2.0 with 1-I/O and 4-I/O.
- Power supply: V_CC = 2.7V - 3.6V
- Default mode: Variable clock rate 0 - 25 MHz, up to 12.5 MB/sec interface speed (using 4 parallel data lines)
- High-Speed mode: Variable clock rate 0 - 50 MHz, up to 25 MB/sec interface speed (using 4 parallel data lines)
- Operating Temperature: -40℃ to +85℃
- Storage Temperature: -55℃ to +125℃
- Standby Current: < 250 μA
- Switch function command supports High-Speed, eCommerce, and future functions
- Correction of memory field errors
- Content Protection Mechanism - Complies with highest security of SDMI standard.
- Password Protection of SDNAND (CMD42 - LOCK_UNLOCK)
- Write Protect feature using mechanical switch
- Built-in write protection features (permanent and temporary)
- Application specific commands
- Comfortable erase mechanism
