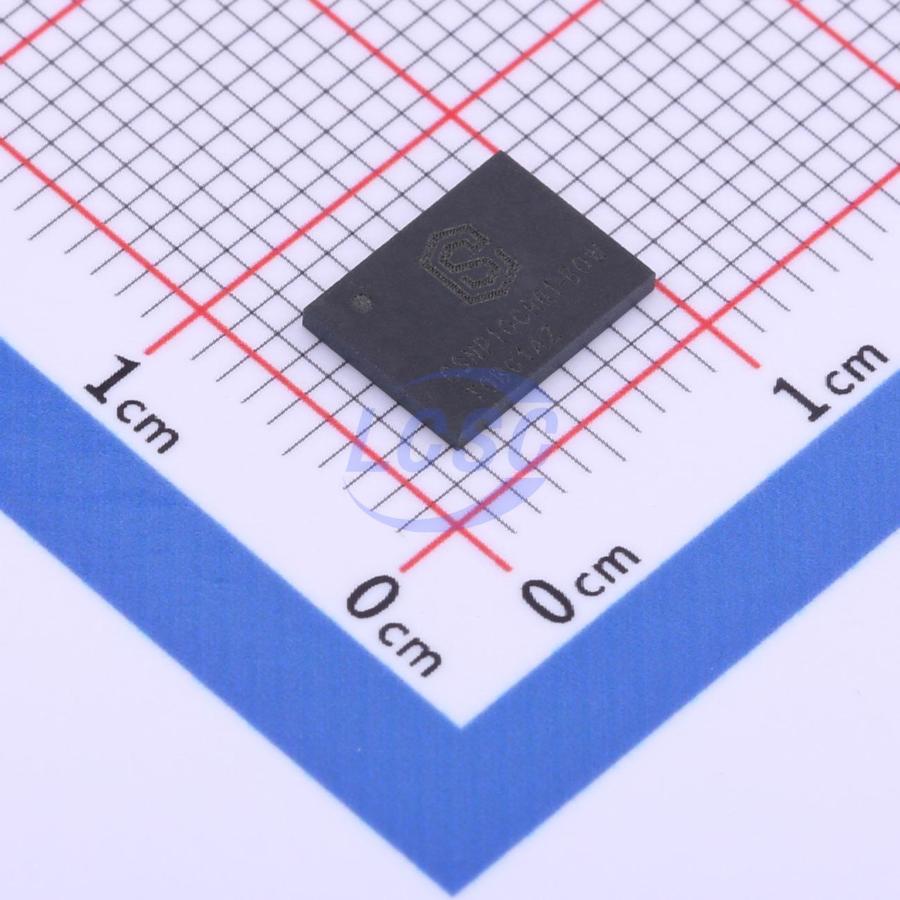

CS SemiconductorDatasheet (PDF)
CSNP1GCR01-BOW
1Gbit 2.7V~3.6V 25MHz LGA-8(6x8) Memory RoHS
LGA-8(6x8)ROHS CompliantActive
1Gb 128MB SDNAND SD NAND SLC
- Manufacturer
- CS Semiconductor
- Manufacturer part #
- CSNP1GCR01-BOW
- Store part #
- C2691593
- Package / case
- LGA-8(6x8)
- Category
- Memory
- Packaging
- Tray
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,617 in stock
#C2691593
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹1,037.64 | ₹1,037.64 |
| 10+ | ₹918.70 | ₹9,187.00 |
| 30+ | ₹842.59 | ₹25,277.70 |
| 100+ | ₹769.10 | ₹76,910.00 |
1 × ₹1,037.64
₹1,037.64
excl. GST
₹1,224.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 480 per tray
CSNP1GCR01-BOW
₹1,037.64 for 1 + GST
Specifications
- Operating Temperature
- -30℃~+85℃
- Features
- Bad block management function;ECC error correction function
- Memory Size
- 1Gbit
- Voltage - Supply
- 2.7V~3.6V
- Clock Frequency
- 25MHz
- Standby Supply Current
- 150uA
- Interface
- SD interface;SPI
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tray
- Standard pack
- 480 / Tray
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.754 g
Overview
CSNP1GCR01-BOW is an 1Gb density of embedded storage based on NAND Flash and SD controller. This product has many advantages comparing to raw NAND, it has embedded bad block management, and stronger embedded ECC. CSNP1GCR01-BOW is LGA-8 package. The size is 8mm x 6mm x 0.75mm.
Key features
- Interface: Standard SD Specification Version 2.0 with 1-I/O and 4-I/O.
- Power supply: VCC = 2.7V - 3.6V
- Default mode: Variable clock rate 0 - 25 MHz, up to 12.5 MB/sec interface speed (using 4 parallel data lines)
- High-Speed mode: Variable clock rate 0 - 50 MHz, up to 25 MB/sec interface speed (using 4 parallel data lines)
- Operating Temperature: -30°C to +85°C
- Storage Temperature: -40°C to +85°C
- Standby Current: < 200 μA
