SEI(Stackpole Electronics Inc.)Datasheet (PDF)

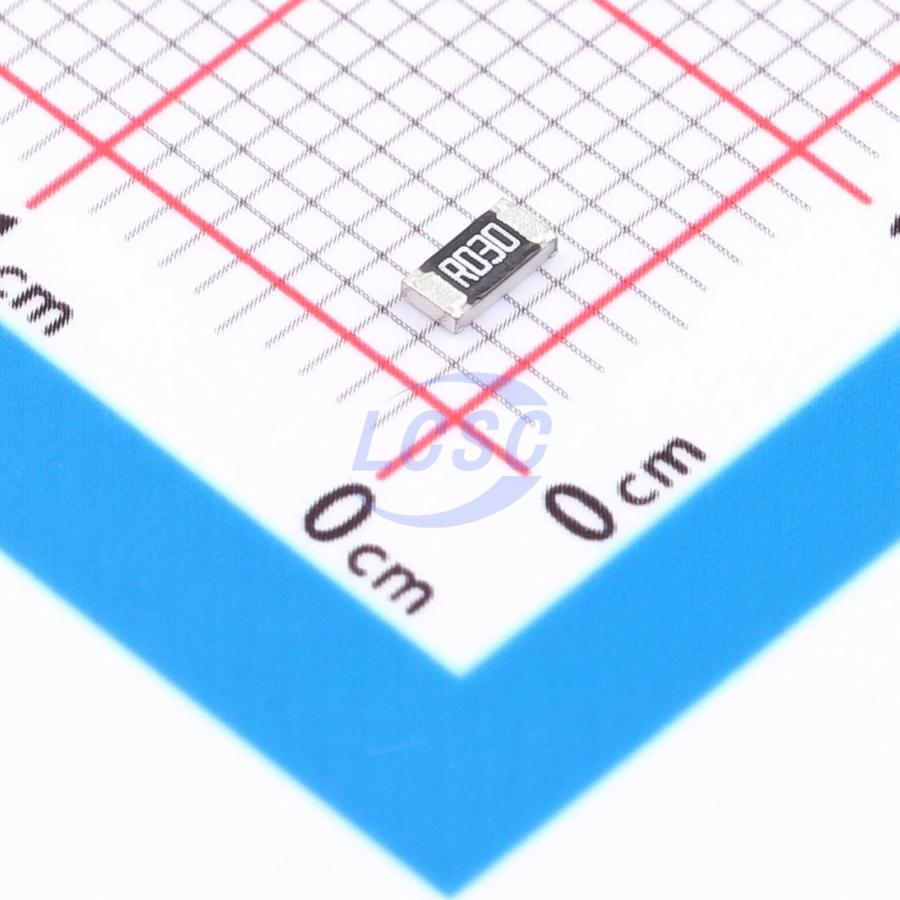

CSR1206FK30L0
30mΩ 500mW Thick Film Resistor ±100ppm/℃ ±1% 1206 Chip Resistor - Surface Mount RoHS
1206ROHS3 CompliantActive
RES 30mΩ ±1% 0.5W 1206
- Manufacturer
- SEI(Stackpole Electronics Inc.)
- Manufacturer part #
- CSR1206FK30L0
- Store part #
- C346772
- Package / case
- 1206
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
915 in stock
#C346772
Stock & price checked 14 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.39 | ₹191.95 |
| 50+ | ₹30.80 | ₹1,540.00 |
| 150+ | ₹27.54 | ₹4,131.00 |
| 1,000+ | ₹23.48 | ₹23,480.00 |
| 2,000+ | ₹21.67 | ₹43,340.00 |
| 5,000+ | ₹20.59 | ₹1,02,950.00 |
5 × ₹38.39
₹191.95
excl. GST
₹226.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
CSR1206FK30L0
₹191.95 for 5 + GST
Specifications
- Resistance
- 30mΩ
- Power(Watts)
- 500mW
- Type
- Thick Film Resistor
- Temperature Coefficient
- ±100ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.057 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MFL1206R0300FS#C5795899EATON · 1206 | EATON | 1206 | 35 | ₹21.23 · 35 in stock | View |
| WSLP1206R0300FEA#C844498VISHAY · 1206 | VISHAY | 1206 | 1,279 | ₹84.86 · 1,279 in stock | View | |
| 73WE4R030F#C1707812CTS · 1206 | CTS | 1206 | On request | ₹21.84 · 0 in stock | View | |
| RUK3216FR030CS#C17590398Samsung Electro-Mechanics · 1206 | Samsung Electro-Mechanics | 1206 | On request | ₹77.96 · 0 in stock | View | |
| UR73V2BTTD30L0F#C2482307KOA · 1206 | KOA | 1206 | On request | Price on request | Quote | |
