VikingDatasheet (PDF)
CSRV0204FTDV0100

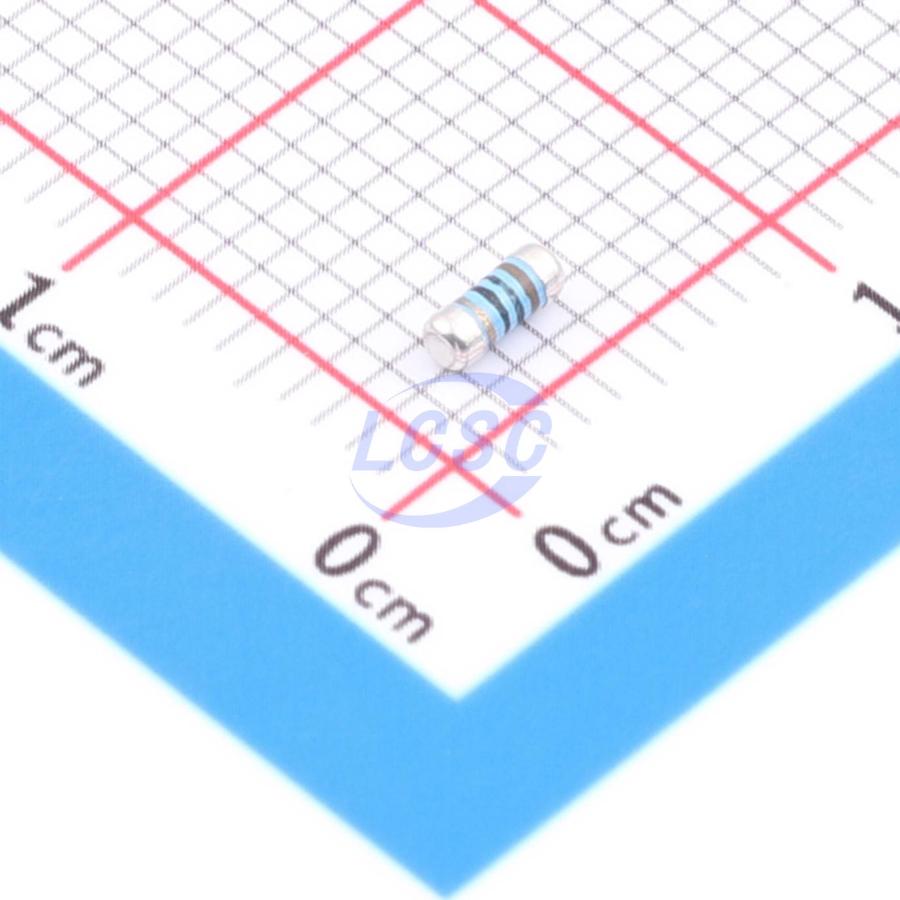

10Ω 250mW ±50ppm/℃ ±1% MELF-0204 Chip Resistor - Surface Mount RoHS
MELF-0204ROHS CompliantActive
RES 10Ω ±1% 1/4W MELF-0204
- Manufacturer
- Viking
- Manufacturer part #
- CSRV0204FTDV0100
- Store part #
- C37635713
- Package / case
- MELF-0204
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,640 in stock
#C37635713
Stock & price checked 17 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹2.04 | ₹40.80 |
| 200+ | ₹1.98 | ₹396.00 |
| 600+ | ₹1.96 | ₹1,176.00 |
| 2,000+ | ₹1.92 | ₹3,840.00 |
20 × ₹2.04
₹40.80
excl. GST
₹48.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CSRV0204FTDV0100
₹40.80 for 20 + GST
Specifications
- Resistance
- 10Ω
- Power(Watts)
- 250mW
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+155℃
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.044 g
Overview
Applications
- Automotive (non-safety components), industrial, telecommunications, medical equipment, measurement/test equipment
Key features
- Thin film technology
- AEC-Q200 compliant
- Excellent overall stability
- Tin terminations over nickel barrier
- Tolerances as low as ±0.1%
- Ultra-low TCR down to ±5 PPM/℃
- High power rating up to 1W
- SMD construction
- Lead-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CSR0204FTDV0100#C489405Viking · MELF-0204 | Viking | MELF-0204 | 2,620 | ₹3.76 · 2,620 in stock | View |
 | CSRV0204FTDG0100#C4355152Viking · MELF-0204 | Viking | MELF-0204 | 7,400 | ₹4.05 · 7,400 in stock | View |
 | CSR0204FTCV0100#C724890Viking · MELF-0204 | Viking | MELF-0204 | 1,540 | ₹5.13 · 1,540 in stock | View |
 | CSRV0204FTCV0100#C724899Viking · MELF-0204 | Viking | MELF-0204 | 1,400 | ₹5.46 · 1,400 in stock | View |
 | CSR0204DTCV0100#C2984549Viking · MELF-0204 | Viking | MELF-0204 | 80 | ₹6.87 · 80 in stock | View |
