BOURNSDatasheet (PDF)

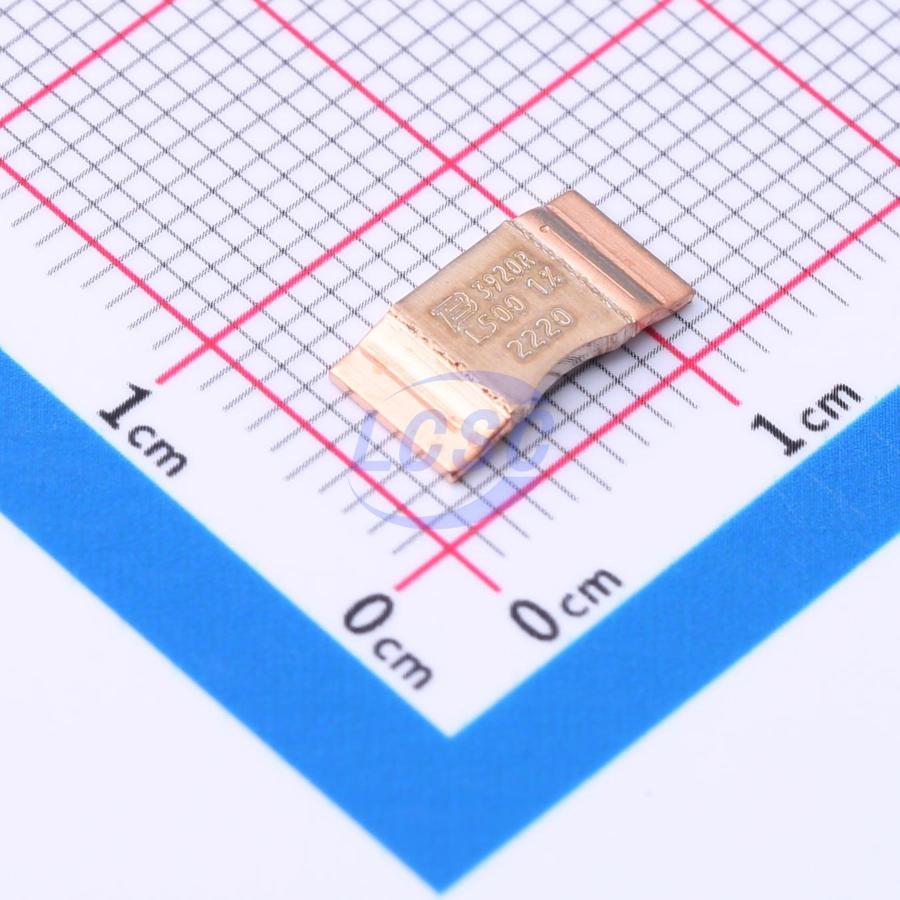

CSS2H-3920R-L500F
9W 0.5mΩ ±50ppm/℃ ±1% 3920 Chip Resistor - Surface Mount RoHS
3920ROHS3 CompliantActive
RES 0.5mΩ ±1% 9W 3920
- Manufacturer
- BOURNS
- Manufacturer part #
- CSS2H-3920R-L500F
- Store part #
- C4306358
- Package / case
- 3920
- Category
- Chip Resistor - Surface Mount
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,639 in stock
#C4306358
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.10 | ₹83.10 |
| 10+ | ₹67.01 | ₹670.10 |
| 30+ | ₹59.18 | ₹1,775.40 |
| 100+ | ₹51.35 | ₹5,135.00 |
| 500+ | ₹46.56 | ₹23,280.00 |
| 1,000+ | ₹44.16 | ₹44,160.00 |
1 × ₹83.10
₹83.10
excl. GST
₹98.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
CSS2H-3920R-L500F
₹83.10 for 1 + GST
Specifications
- Power(Watts)
- 9W
- Resistance
- 0.5mΩ
- Temperature Coefficient
- ±50ppm/℃
- Tolerance
- ±1%
- Operating Temperature
- -55℃~+170℃
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.36 g
Overview
Applications
- Current sensing
- Voltage dividing
- Battery management systems
- Power modules
- Inverters
- Industrial applications
Key features
- EB welded metal strip
- Very high power
- Excellent long-term stability
- Low resistance, low TCR
- Low thermoelectric EMF
- RoHS compliant* and halogen-free**
- AEC-Q200 compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| CHSA3920R0005F#C6533919EATON · 3920 | EATON | 3920 | 10 | ₹131.23 · 10 in stock | View | |
| Y14840R00050F9R#C7159032VISHAY · 3920 | VISHAY | 3920 | On request | ₹243.82 · 0 in stock | View | |
