Infineon/CYPRESS

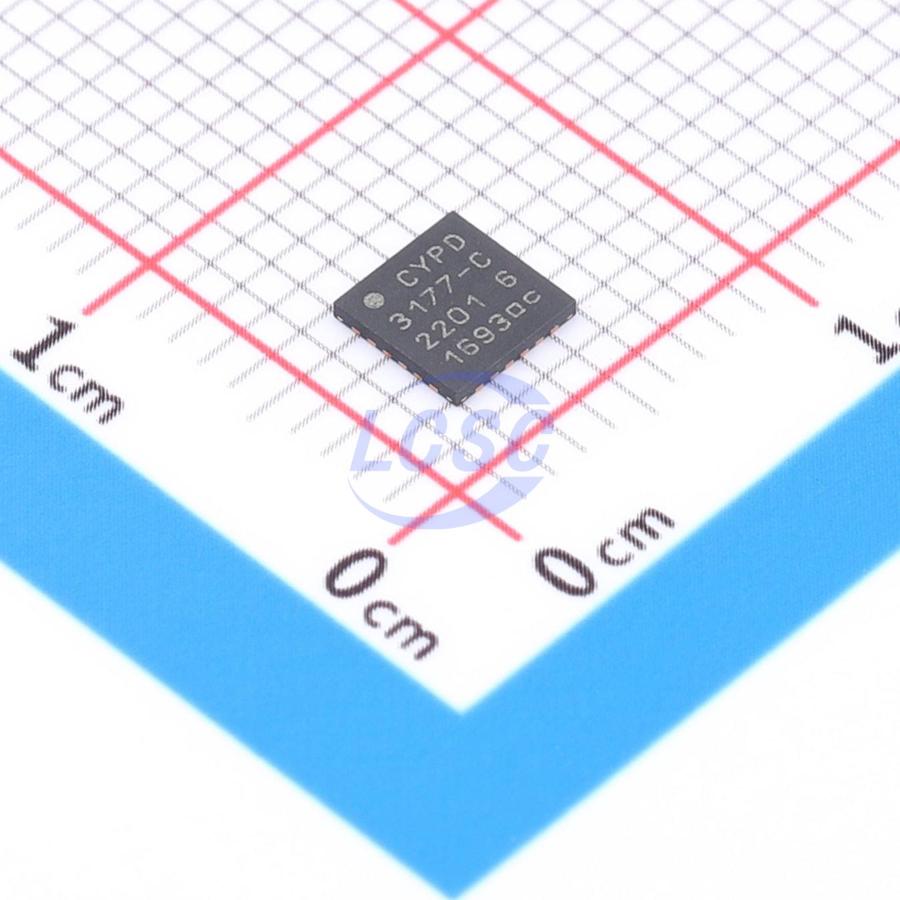

CYPD3177-24LQXQT

I2C QFN-24(4x4) Power Management - Specialized RoHS

QFN-24(4x4)ROHS3 CompliantActive

USB Type-C Port Controller for Power Sinks

Manufacturer: Infineon/CYPRESS
Manufacturer part #: CYPD3177-24LQXQT
Store part #: C2952489
Package / case: QFN-24(4x4)
Category: Power Management - Specialized
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,152 in stock

#C2952489

Stock & price checked 20 h ago

Quantity	Unit price	Pack price
1+	₹226.14	₹226.14
10+	₹188.86	₹1,888.60
30+	₹168.26	₹5,047.80
100+	₹145.05	₹14,505.00
500+	₹134.65	₹67,325.00
1,000+	₹130.09	₹1,30,090.00

Quantity (min 1)

1 × ₹226.14

₹226.14

excl. GST

₹266.85 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

CYPD3177-24LQXQT

₹226.14 for 1 + GST

Specifications

Features: Adjustable current limiting;Overcurrent Protection;Adjustable soft-start;Output discharge;Operating status indication
Operating Temperature: -40℃~+105℃
Interface: I2C
Voltage - Supply: 3V~24.5V

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
ECCN: 3A991A2
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.231 g

Overview

EZ-PD™ BCR is a highly-integrated pre-programmed USB Type-C port controller targeting electronic devices that have legacy barrel connectors (up to 100W) or USB micro-B connectors for power such as drones, smart speakers, power tools, and other rechargeable devices. EZ-PD BCR complies with the latest USB Type-C and USB Power Delivery (PD) standards and enables users to quickly convert their devices from being powered through a barrel connector to being powered via the USB-C connector with few external components and no firmware development is required. EZ-PD BCR integrates a complete USB Type-C transceiver, USB PD policy manager, a load switch controller with a soft start, all termination resistors required for a USB Type-C port, and system-level ESD protection. It is available in a 24-pin QFN package.

Applications

drones
smart speakers
power tools
other rechargeable devices

Key features

Supports USB PD3.0 Revision 2.0 Version 1.3
Configurable resistor RD
Supports one USB Type-C port
Supports 5-V operation when connected to USB Type-A ports
VBUS to CC Short Protection
On-chip overvoltage protection (OVP)
Integrated oscillator eliminating the need for external clock
3.0 to 24.5-V operation (30-V tolerant)
On CC, VBUS_IN, DC_OUT, D+, D-, HPI_SDA and HPI_SCL pins
±8-kV contact discharge and ±15-kV air gap discharge based on IEC61000-4-2 level 4C
24-pin QFN package
Supports extended industrial temperature range (-40°C to +105°C)
