LittelfuseDatasheet (PDF)

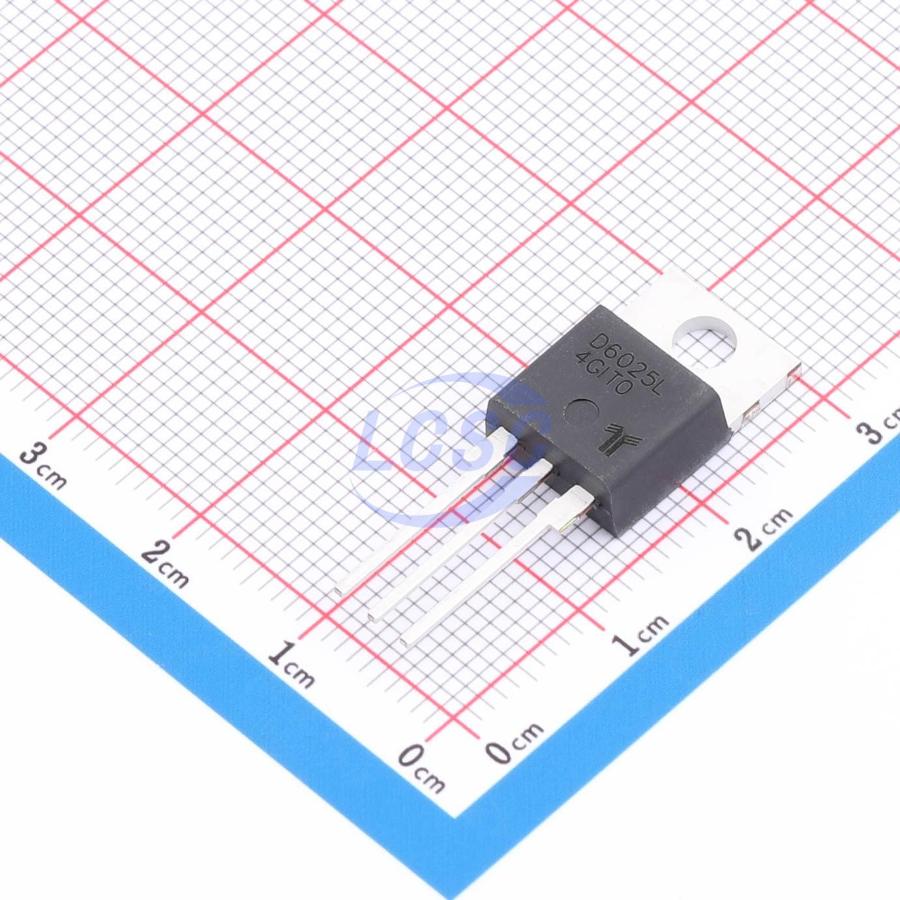

D6025LTP
1 Independent 600V 1.6V 15.9A TO-220AB-L Single Diodes RoHS
TO-220AB-LROHS3 CompliantActive
- Manufacturer
- Littelfuse
- Manufacturer part #
- D6025LTP
- Store part #
- C17347701
- Package / case
- TO-220AB-L
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
87 in stock
#C17347701
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹408.53 | ₹408.53 |
| 10+ | ₹345.51 | ₹3,455.10 |
| 30+ | ₹306.18 | ₹9,185.40 |
| 100+ | ₹265.98 | ₹26,598.00 |
| 500+ | ₹247.72 | ₹1,23,860.00 |
| 1,000+ | ₹239.69 | ₹2,39,690.00 |
1 × ₹408.53
₹408.53
excl. GST
₹482.07 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per tube
D6025LTP
₹408.53 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Operating Junction Temperature Range
- -40℃~+125℃
- Voltage - Forward(Vf@If)
- 1.6V
- Reverse Leakage Current (Ir)
- 10uA
- Non-Repetitive Peak Forward Surge Current
- 350A
- Current - Rectified
- 15.9A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 500 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 3.291 g
Overview
Silicon rectifier for DC phase control applications with motor loads. Isolated mounting tab allows use in circuits with common anode or common cathode connections.
Applications
- Typical applications include AC/DC solid-state switches for industrial power tools, fitness equipment, white goods, and commercial appliances.
Key features
- RoHS compliant
- Glass passivated junction
- Voltage capability up to 1000 V
- Surge capability up to 350 A
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DSI30-12A#C35523Littelfuse/IXYS · TO-220 | Littelfuse/IXYS | TO-220 | On request | ₹181.24 · 0 in stock | View |
| D8025LTP#C17649547Littelfuse · TO-220AB-L | Littelfuse | TO-220AB-L | On request | ₹75.27 · 0 in stock | View | |
| VS-20ETS16-M3#C17345448VISHAY · TO-220-3 | VISHAY | TO-220-3 | On request | ₹469.12 · 0 in stock | View | |
