DIODESDatasheet (PDF)

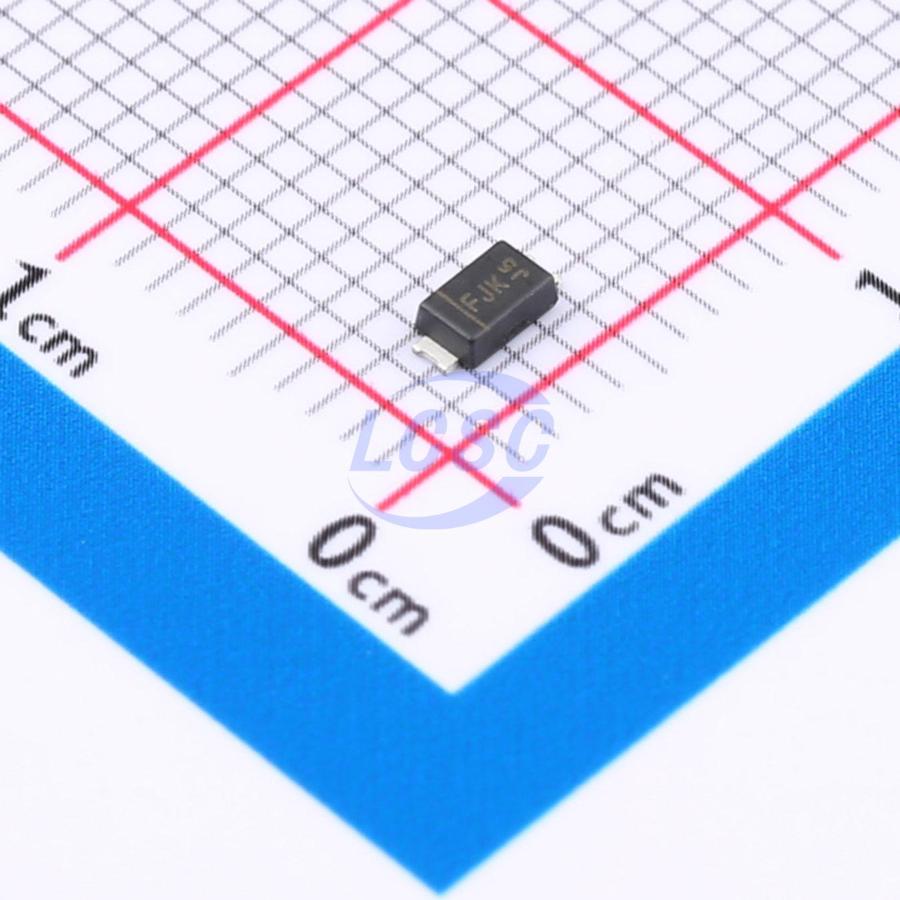

DFLZ22-7
Zener Diode Independent 22V 1W Surface Mount Power-DI-123
Power-DI-123ROHS3 CompliantActive
DIODE ZENER 22V 1W Power-DI-123
- Manufacturer
- DIODES
- Manufacturer part #
- DFLZ22-7
- Store part #
- C5244870
- Package / case
- Power-DI-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,005 in stock
#C5244870
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.69 | ₹188.45 |
| 50+ | ₹29.93 | ₹1,496.50 |
| 150+ | ₹26.59 | ₹3,988.50 |
| 500+ | ₹22.44 | ₹11,220.00 |
| 3,000+ | ₹20.59 | ₹61,770.00 |
| 6,000+ | ₹19.47 | ₹1,16,820.00 |
5 × ₹37.69
₹188.45
excl. GST
₹222.37 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DFLZ22-7
₹188.45 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 1W
- Reverse Leakage Current (Ir)
- 1uA@16V
- Impedance(Zzt)
- 3Ω
- Zener Voltage(Range)
- 20.8V~23.3V
- Zener Voltage(Nom)
- 22V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Key features
- 1W Power Dissipation on FR-4 PCB
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. "Green" Device
- This part is qualified to JEDEC standards (as references in AEC-Q) for High Reliability
- An automotive-compliant part is available under separate datasheet (DFLZ5V1Q - DFLZ39Q)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DFLZ20-7#C177024DIODES · PowerDI123 | DIODES | PowerDI123 | 200 | ₹42.81 · 200 in stock | View |
| PZ1AH22B_R1_00001#C5830517PANJIT · SOD-123HE | PANJIT | SOD-123HE | On request | ₹19.57 · 0 in stock | View | |
| PZ1AH22B-AU_R1_000A1#C6256924PANJIT · SOD-123HE | PANJIT | SOD-123HE | On request | ₹22.80 · 0 in stock | View | |
| PZ1AH24B_R1_00001#C6149636PANJIT · SOD-123HE | PANJIT | SOD-123HE | On request | ₹19.57 · 0 in stock | View | |
| PZ1AH24B-AU_R1_000A1#C7030364PANJIT · SOD-123HE | PANJIT | SOD-123HE | On request | ₹22.80 · 0 in stock | View | |
