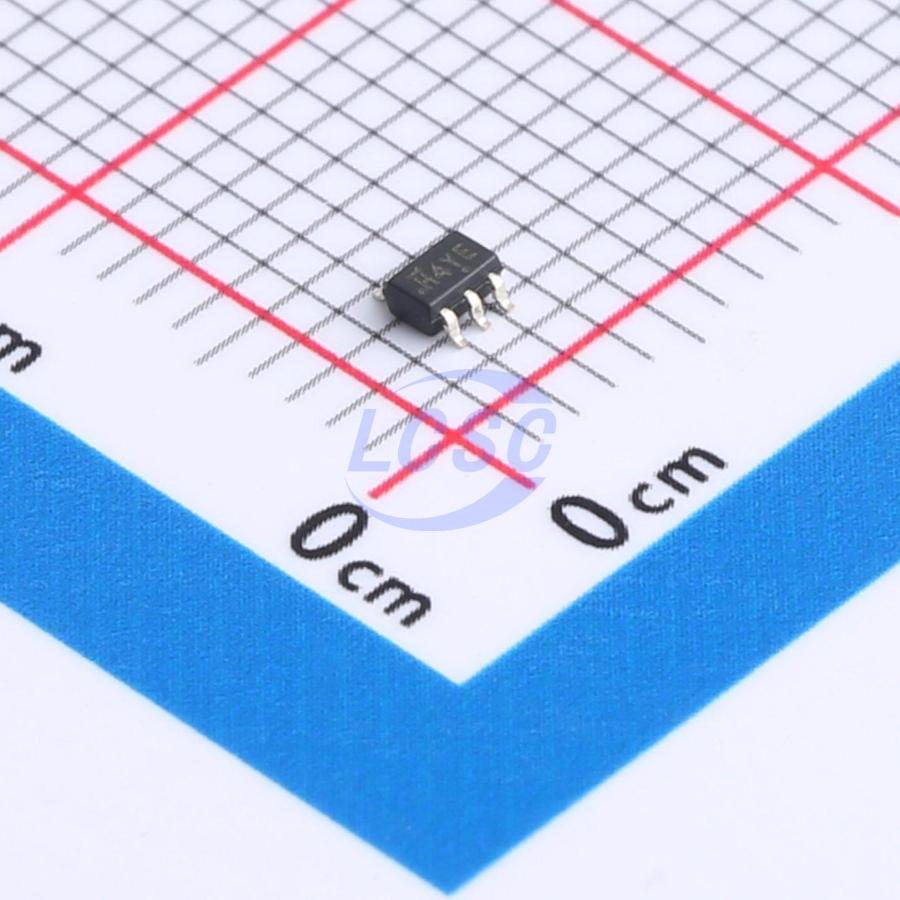

DG4157EDL-T1-GE3

The DG4157E is a high performance single-pole, double-throw (SPDT) analog switch designed for 1.65 V to 5.5 V operation with a single power rail. Fabricated with high density CMOS technology, the device achieves low on resistance of 0.86 Ω at a 4.5 V power supply, low power consumption, and fast switching speeds. The DG4157E can handle both analog and digital signals and permits signals with amplitudes of up to V+ to be transmitted in either direction. Its control logic inputs can go over V+ up to 5.5 V. The control logic input high threshold is guaranteed as low as 1.8 V over the power supply range up to 5.5 V. It features break before make switching performance. Its -3 dB bandwidth is typically 152 MHz. A powered-off protection circuit is built into the switch to prevent an abnormal current flow from COM pin to V+ during the power-down condition. Each output pin can withstand greater than 7 kV (human body model). Operation temperature is specified from -40 °C to +85 °C. The DG4157E is available in the ultra compact μDFN-6L and SC-70-6 packages.

Applications

• Smartphones and tablets
• Consumer and computing
• Portable instrumentation
• Medical equipment

Key features

• Low switch on-resistance (0.86 Ω)
• 1.65 V to 5.5 V single supply operation Available
• Isolation in powered-off mode
• Guaranteed 1.8 V logic high
• Control logic inputs can go over V+
• Low charge injection (5 pC)
• Low total harmonic distortion
• Break before make switching
• Latch-up performance exceeds 300 mA per JESD 78
• ESD tested - 7000 V human body model (JS-001) - 1000 V charge device model (JS-002)
• Ultra compact package
