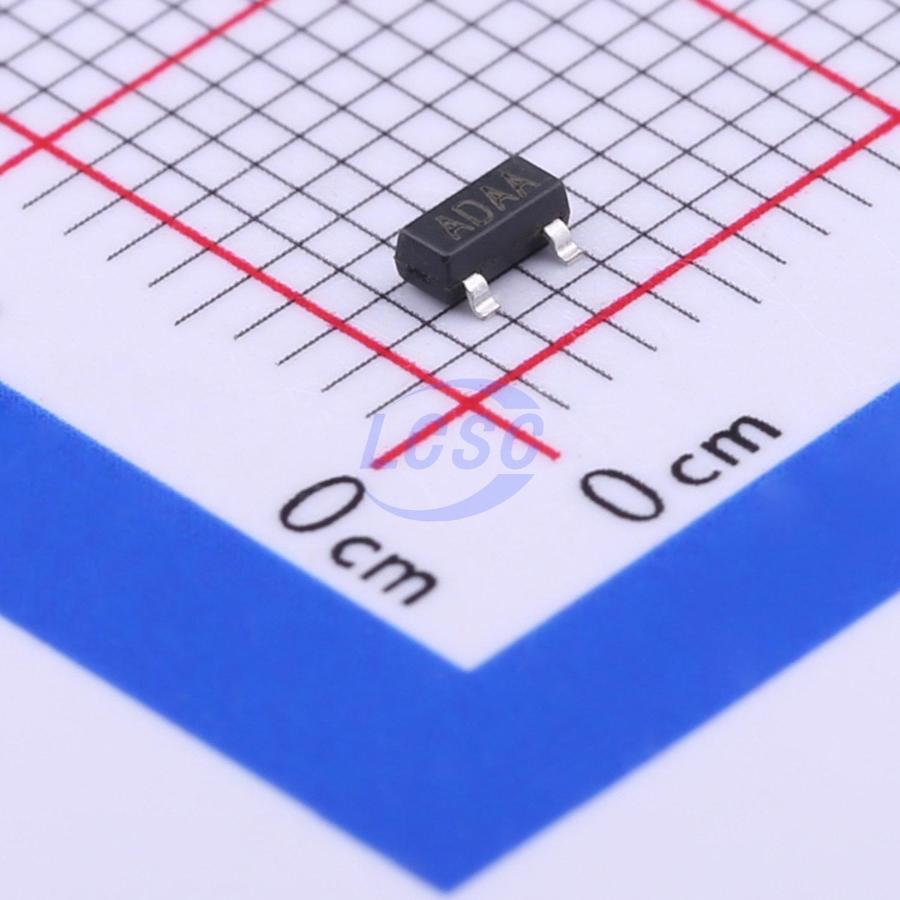

DIO6809SST3
240ms Active Low 1V~5.5V 1 SOT-23 Supervisors
Ultra Low Power Microprocessor Reset Circuit
- Manufacturer
- DIOO
- Manufacturer part #
- DIO6809SST3
- Store part #
- C403839
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,210 in stock
#C403839
Stock & price checked 30 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.89 | ₹79.45 |
| 50+ | ₹12.57 | ₹628.50 |
| 150+ | ₹10.90 | ₹1,635.00 |
| 500+ | ₹9.66 | ₹4,830.00 |
| 3,000+ | ₹8.65 | ₹25,950.00 |
| 6,000+ | ₹8.15 | ₹48,900.00 |
5 × ₹15.89
₹79.45
excl. GST
₹93.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO6809SST3
₹79.45 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 240ms
- Reset Active Level
- Active Low
- standby current
- 10uA
- Voltage - Supply
- 1V~5.5V
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
DIO6809 series are micro- processor( (μP) supervisory circuits used to monitor the power supplies in μP and digital systems. They provide excellent circuit reliability and low cost by eliminating external components. These circuits perform a single function: they assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. The DlO6809 has CMOS outputs. The DlO6809 has an active- low /RESET output. The reset comparator is designed to ignore fast transients on VCC, and the outputs are guaranteed to be in the correct logic state for VCC down to 1.0V over the temperature range. The device is available in 3 pin sOT- 23 and SOT- 23- 3L package.
Applications
- Computers
- Controllers
- Intelligent Instruments
- Portable/Battery- Powered Equipment
Key features
- 140ms min Reset Pulse Width
- 10µA Typ Supply Current (VCC = 3V)
- Guaranteed Reset Valid to VCC = +1.0V
- Power Supply Transient Immunity
- Operating Temperature Range - 40°C to +85°C
- Available in SOT- 23 and SOT- 23- 3L
