DIOODatasheet (PDF)

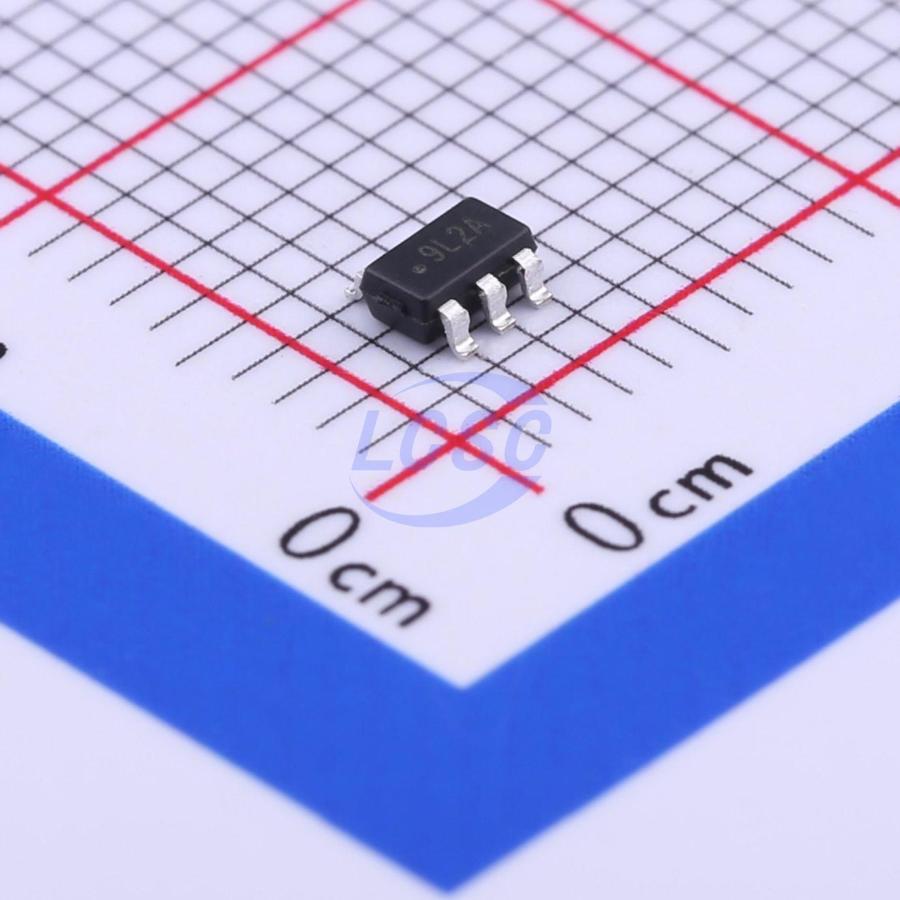

DIO7002AST5
1 Active High 2.5A Load Switch SOT-23-5 Power Distribution Switches, Load Drivers RoHS
SOT-23-5ROHS CompliantActive
Low Loss Power Distribution Switch
- Manufacturer
- DIOO
- Manufacturer part #
- DIO7002AST5
- Store part #
- C403840
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,420 in stock
#C403840
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.08 | ₹95.40 |
| 50+ | ₹14.87 | ₹743.50 |
| 150+ | ₹12.77 | ₹1,915.50 |
| 500+ | ₹11.19 | ₹5,595.00 |
| 3,000+ | ₹9.92 | ₹29,760.00 |
| 6,000+ | ₹9.30 | ₹55,800.00 |
5 × ₹19.08
₹95.40
excl. GST
₹112.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DIO7002AST5
₹95.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Features
- Overcurrent Protection;Short-Circuit Protection;Over temperature protection;Under-voltage lockout;Reverse current blocking
- number of channels
- 1
- Control Input Logic
- Active High
- Maximum Continuous Current
- 2.5A
- RDS(on)
- 70mΩ
- Operating Voltage
- 2.7V~5.5V
- Type
- Load Switch
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.038 g
Overview
The DIO7002 power distribution switch is intended for applications where precision current limiting is required or heavy capacitive loads and short circuits are encountered. The power switch rising and falling times are controlled to minimize current surges during turning on/off. The DIO7002 device limits the output current under a safe level by using a constant current mode when the output load exceeds the current limit threshold. The DIO7002 is available in the SOT23-5 packages. It is rated over the -40°C to ±85°C temperature range.
Applications
- USB Ports/Hubs
- Digital TV Set-Top Boxes
- VOIP Phones
Key features
- Input voltage: 2.7V to 5.5V
- Typical 70mΩ on-resistance
- 2.5A load current capability
- Programmable current limit
- Enable polarity:
- DIO7002A: Active high
- DIO7002B: Active Low
- Over current protection, short circuit protection and over temperature protection
- Reverse blocking (no body diode)
- No reverse current when power ON or power OFF
- Compact SOT23-5 package minimizes the board space
