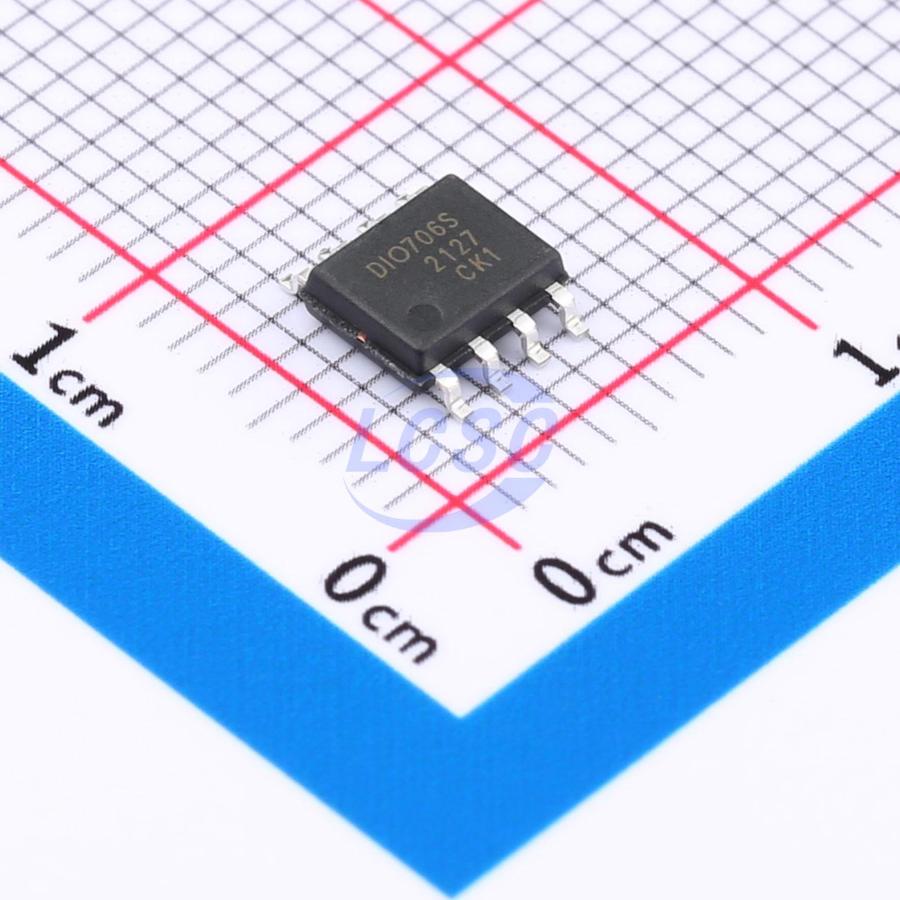

DIO706SCS8
200ms Active Low 1.15V~5.5V 1 SOIC-8 Supervisors
Low Power Microprocessor Supervisory Circuits
- Manufacturer
- DIOO
- Manufacturer part #
- DIO706SCS8
- Store part #
- C2920629
- Package / case
- SOIC-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,625 in stock
#C2920629
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.44 | ₹207.20 |
| 50+ | ₹33.78 | ₹1,689.00 |
| 150+ | ₹30.50 | ₹4,575.00 |
| 500+ | ₹23.17 | ₹11,585.00 |
| 2,500+ | ₹21.34 | ₹53,350.00 |
| 5,000+ | ₹20.24 | ₹1,01,200.00 |
5 × ₹41.44
₹207.20
excl. GST
₹244.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
DIO706SCS8
₹207.20 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Reset Timeout
- 200ms
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 52uA
- Voltage - Supply
- 1.15V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.238 g
Overview
DIO706 series is a family of microprocessor (uP) supervisory circuit that monitors microprocessor’s supply voltage and battery voltage. The series integrates uP reset circuit with 200ms delay; Watchdog, manual reset circuit and a power fail comparator with 1.22V threshold. These devices reduce system complexity, hence improve system reliability. DIO706 series has several functional options. Each device generates a reset signal when vcc is lower than reset threshold. In addition, DIO706 have a watchdog timer whose timeout period is 1.6s. DIO706 provide active low reset. DIO706 series is ideal for applications in automotive systems, computers, controllers and intelligent instruments. All devices are available in SOIC-8 package.
Applications
- Computers
- Controllers
- Intelligent instruments
- Automotive systems
Key features
- Reset threshold can be from 2.6V to 5.0V with 0.1V step
- Low operating current: 52uA@5V
- Reset pulse width: 200ms
- Independent watchdog timer, 1.6s timeout
- Voltage monitor for power fail or low battery warning
- Pin-to-Pin compatible with industry standard
- Available in Package of SOIC-8
