DK020G

DK020G is a current-mode controlled quasi-resonant flyback AC-DC power management switch IC. It integrates a 700V/1.2Ω GaN HEMT, control circuit, and gate driver circuit on-chip, significantly reducing the external component count and effectively lowering overall system cost. The DK020G operates in Discontinuous Conduction Mode (DCM). When the core energy is fully released and the resonance between the primary inductance and the GaN HEMT junction capacitance reaches its valley point, the primary power switch turns on, thereby reducing switching turn-on losses and improving efficiency across the entire power range.

Applications

• High power density fast chargers, adapters
• Laptop adapters, tablet adapters, set-top box adapters, etc.
• Auxiliary and standby power supplies

Key features

• Peak efficiency 92%
• Switching frequency up to 250KHz
• Standby power consumption below 50mW
• QR operating mode
• Built-in algorithm-optimized valley detection and valley lockout circuits
• Built-in demagnetization detection circuit
• Built-in frequency jittering circuit for effective EMI improvement
• Built-in high/low voltage input power compensation circuit for consistent maximum output power across wide input voltage range
• Halogen-free and RoHS compliant
• IEC 62368-1:2018 safety certified, No. NO123514

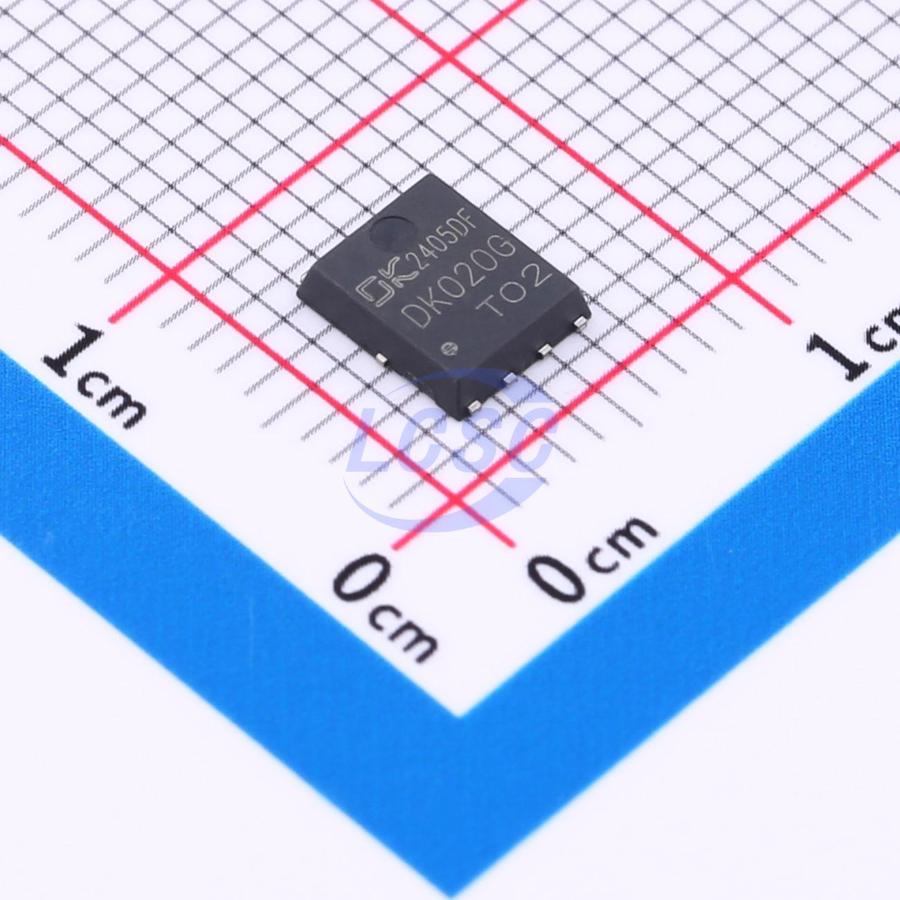

• Package: PDFN5*6
