Shenzhen DongKe SemiconDatasheet (PDF)

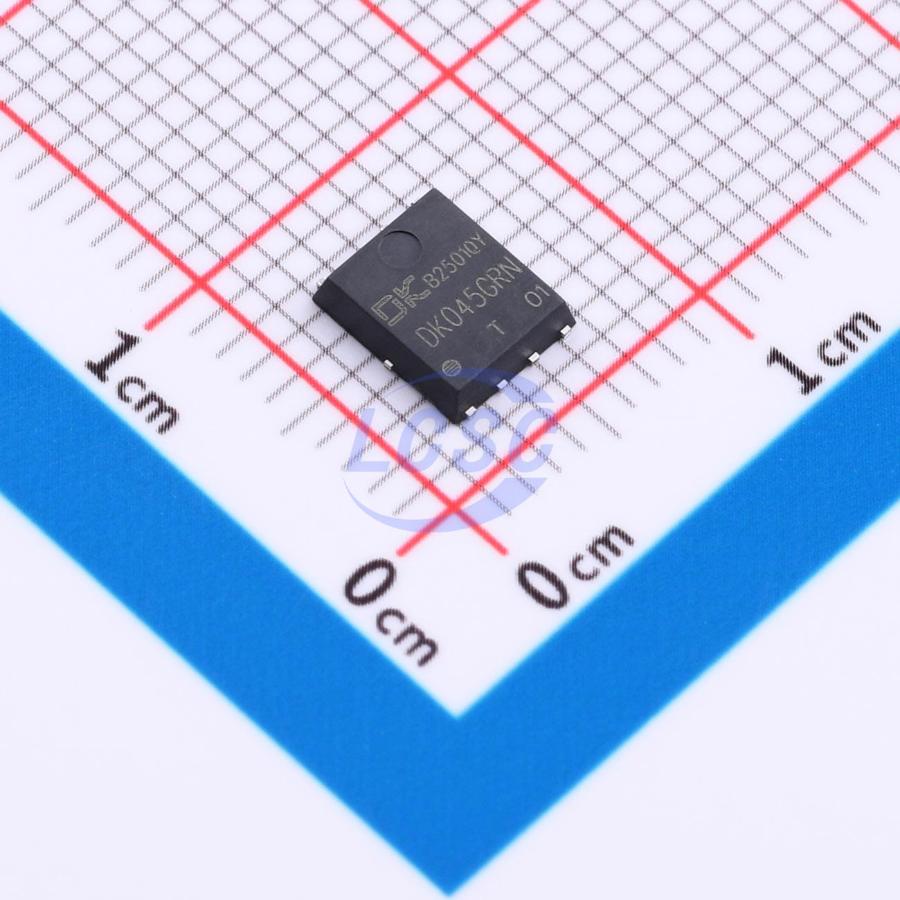

DK045GRN
5A 25kHz~200kHz 2W 7.5V~60V 700V Flyback PDFN-8(5x6) AC DC Converters, Offline Switchers
PDFN-8(5x6)RoHSActive
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK045GRN
- Store part #
- C53183680
- Package / case
- PDFN-8(5x6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,730 in stock
#C53183680
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹104.32 | ₹104.32 |
| 10+ | ₹84.42 | ₹844.20 |
| 30+ | ₹74.56 | ₹2,236.80 |
| 100+ | ₹64.72 | ₹6,472.00 |
| 500+ | ₹58.86 | ₹29,430.00 |
| 1,000+ | ₹55.72 | ₹55,720.00 |
1 × ₹104.32
₹104.32
excl. GST
₹123.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK045GRN
₹104.32 for 1 + GST
Specifications
- Output Current
- 5A
- Frequency - Switching
- 25kHz~200kHz
- Pd - Power Dissipation
- 2W
- Voltage - Supply
- 7.5V~60V
- Voltage - Breakdown
- 700V
- Topology
- Flyback
- Features
- Soft-start;Over Voltage Protection;Short Circuit Protection;Overtemperature protection (OTP);Over Current Protection;Under Voltage Protection
- Working Mode
- QR
- Feedback System
- Secondary-Side Feedback
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.5 g
Overview
DK045GRN is a highly integrated quasi-resonant flyback AC-DC power switch IC featuring a 700V/330mΩ GaN HEMT. The IC detects the power transistor drain voltage V_D,Λ and turns on the power transistor when V_D reaches its minimum value, thereby reducing switching losses and improving EMI. This IC greatly simplifies the design and manufacturing of flyback AC-DC converters, making it particularly suitable for products requiring high conversion efficiency and high power density. It incorporates comprehensive protection features, including output OVP, VCC over/under-voltage protection, OTP, open-loop protection, and output OCP. This product series is available in a PDFN5×6 package.
Applications
- High power density fast chargers
- Adapters
- Laptop adapters
- Tablet adapters
- Set-top box adapters
Key features
- Switching frequency up to 200KHz
- Standby power consumption below 50mW
- QR operating mode
- Built-in algorithm-optimized valley detection and valley locking circuits
- Built-in demagnetization detection circuit
- Built-in frequency jittering circuit for effective EMI improvement
- Built-in high/low voltage input power compensation circuit for consistent maximum output power across wide input voltage range
- Halogen-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DK8036#C53183687Shenzhen DongKe Semicon · PDFN-8(5x6) | Shenzhen DongKe Semicon | PDFN-8(5x6) | 31 | ₹94.59 · 31 in stock | View |
 | DK036GJN#C53183677Shenzhen DongKe Semicon · PDFN-8(5x6) | Shenzhen DongKe Semicon | PDFN-8(5x6) | 5 | ₹91.49 · 5 in stock | View |
 | DK045GJN#C53183679Shenzhen DongKe Semicon · PDFN-8(5x6) | Shenzhen DongKe Semicon | PDFN-8(5x6) | 97 | ₹104.90 · 97 in stock | View |
 | DK036GRN#C53183678Shenzhen DongKe Semicon · PDFN-8(5x6) | Shenzhen DongKe Semicon | PDFN-8(5x6) | 5 | ₹91.49 · 5 in stock | View |
 | DK8045#C53183688Shenzhen DongKe Semicon · PDFN-8(5x6) | Shenzhen DongKe Semicon | PDFN-8(5x6) | 8 | ₹116.73 · 8 in stock | View |
