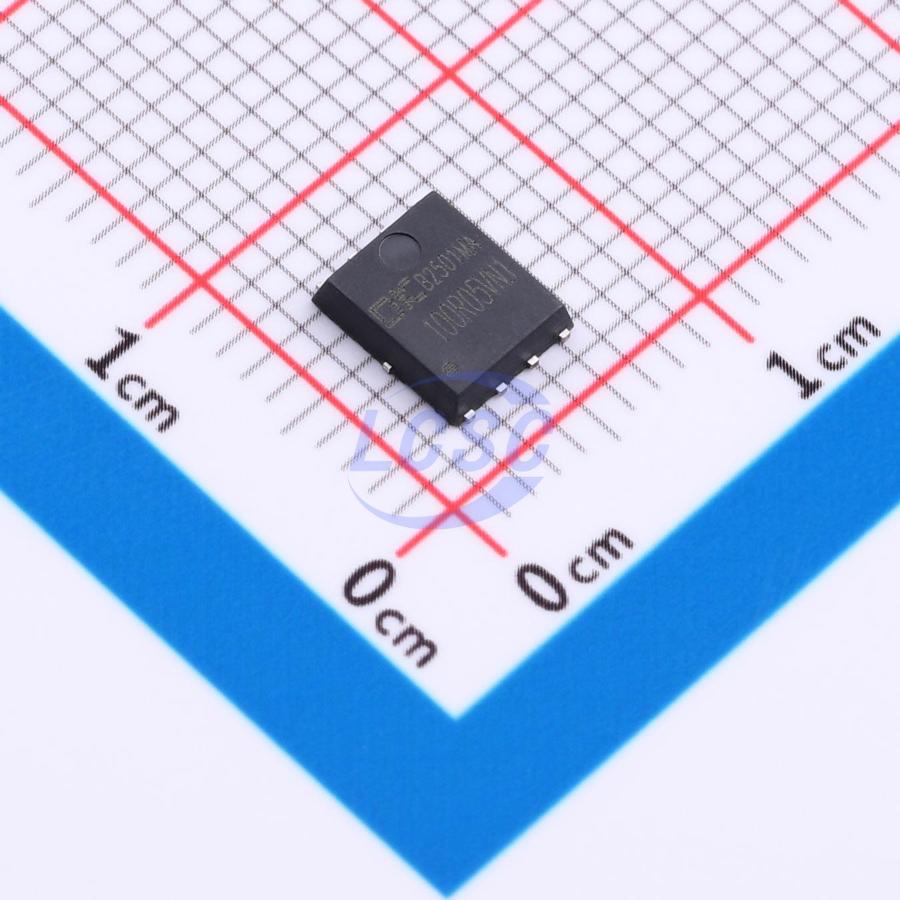

DK5V100R05VN1
300kHz 1 5mΩ PDFN-8(5x6) Power Supply Controllers, Monitors
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V100R05VN1
- Store part #
- C51908963
- Package / case
- PDFN-8(5x6)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,890 in stock
#C51908963
Stock & price checked 36 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.75 | ₹129.75 |
| 10+ | ₹104.94 | ₹1,049.40 |
| 30+ | ₹92.65 | ₹2,779.50 |
| 100+ | ₹80.36 | ₹8,036.00 |
| 500+ | ₹72.94 | ₹36,470.00 |
| 1,000+ | ₹69.11 | ₹69,110.00 |
1 × ₹129.75
₹129.75
excl. GST
₹153.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
DK5V100R05VN1
₹129.75 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 100V
- Frequency - Switching
- 300kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 5mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.54 g
Overview
DK5V100R05VN1 is a simple and efficient synchronous rectification IC with an integrated 100V power NMOS, which significantly reduces diode conduction losses and improves overall efficiency. It can be used as a drop-in replacement for conventional Schottky rectifier diodes. The IC is available in a PDFN5×6 package.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low forward voltage drop
- Ultra-low temperature rise
- Integrated 100V 5mΩ power NMOS
- CCM, DCM, and QR mode operation
- Self-powered technology, no external power supply required
- Intelligent detection system, no front-end synchronization signal required
- Improved EMI performance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DK5V100R10VN#C45369099Shenzhen DongKe Semicon · DFN-8(5x6) | Shenzhen DongKe Semicon | DFN-8(5x6) | 804 | ₹80.95 · 804 in stock | View |
 | DK5V100R15VN#C53183596Shenzhen DongKe Semicon · PDFN-8(5x6) | Shenzhen DongKe Semicon | PDFN-8(5x6) | 2 | ₹62.84 · 2 in stock | View |
 | DK5V85R15VN#C53183594Shenzhen DongKe Semicon · PDFN-8(5x6) | Shenzhen DongKe Semicon | PDFN-8(5x6) | 195 | ₹40.51 · 195 in stock | View |
 | DK5V85R10VN#C53183595Shenzhen DongKe Semicon · PDFN-8(5x6) | Shenzhen DongKe Semicon | PDFN-8(5x6) | 5 | ₹48.71 · 5 in stock | View |
