Shenzhen DongKe Semicon

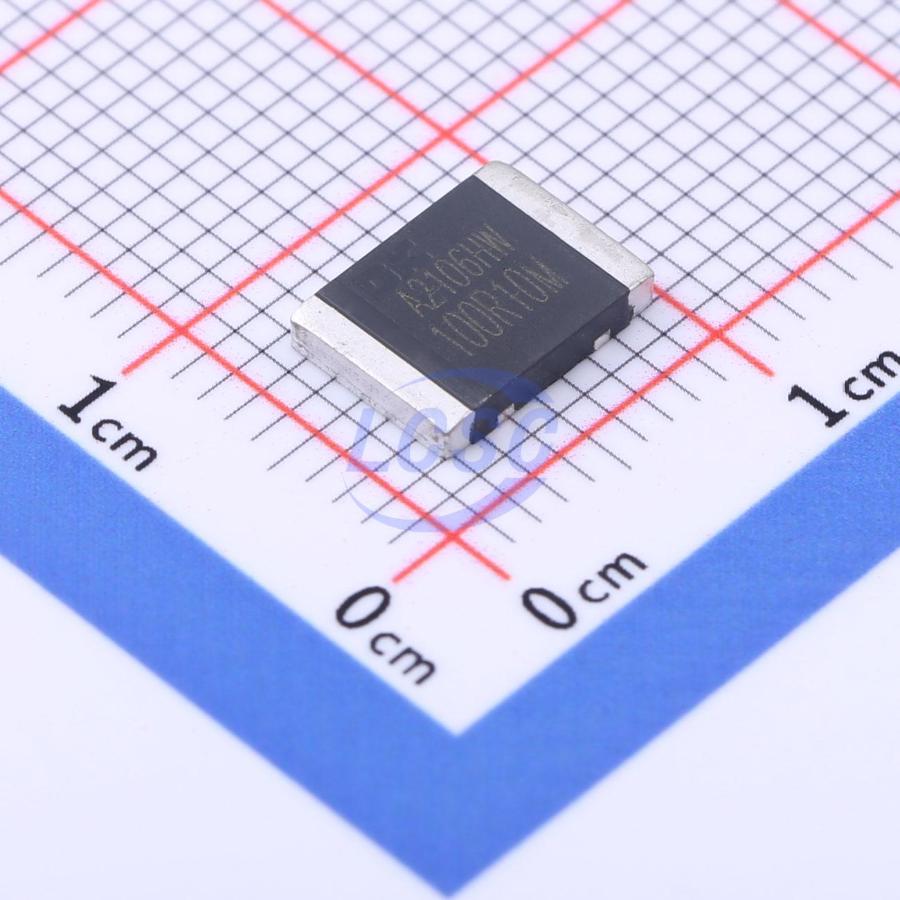

DK5V100R10M

150kHz 10mΩ SM-10 Power Supply Controllers, Monitors RoHS

SM-10ROHS CompliantActive

High-performance two-pin synchronous rectification chip

Manufacturer: Shenzhen DongKe Semicon
Manufacturer part #: DK5V100R10M
Store part #: C557576
Package / case: SM-10
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,128 in stock

#C557576

Stock & price checked 27 h ago

Quantity	Unit price	Pack price
1+	₹125.74	₹125.74
10+	₹102.28	₹1,022.80
30+	₹90.56	₹2,716.80
100+	₹79.05	₹7,905.00
500+	₹64.50	₹32,250.00
1,000+	₹61.03	₹61,030.00

Quantity (min 1)

1 × ₹125.74

₹125.74

excl. GST

₹148.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

DK5V100R10M

₹125.74 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

MOS Breakdown Voltage: 100V
Function: Adaptive synchronous rectification control;Programmable dead-time;Light load efficient mode
Frequency - Switching: 150kHz
Switch Tube (Built-In/External): Built-in
RDS(on): 10mΩ
Operating Temperature: -25℃~+120℃
Operating Voltage: 3.3V~10V
Turn-Off Delay: 50ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Moisture sensitivity: MSL 3 (168 hours)
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.386 g

Overview

DK5V100R10M is a simple and efficient two-pin synchronous rectification IC with only A and K pins, corresponding to the anode and cathode of a Schottky diode respectively. No external components are required. It significantly reduces the conduction loss of conventional Schottky diodes and improves overall system efficiency. The IC integrates an internal 100V power NMOS transistor and adopts an SM-10 package.
