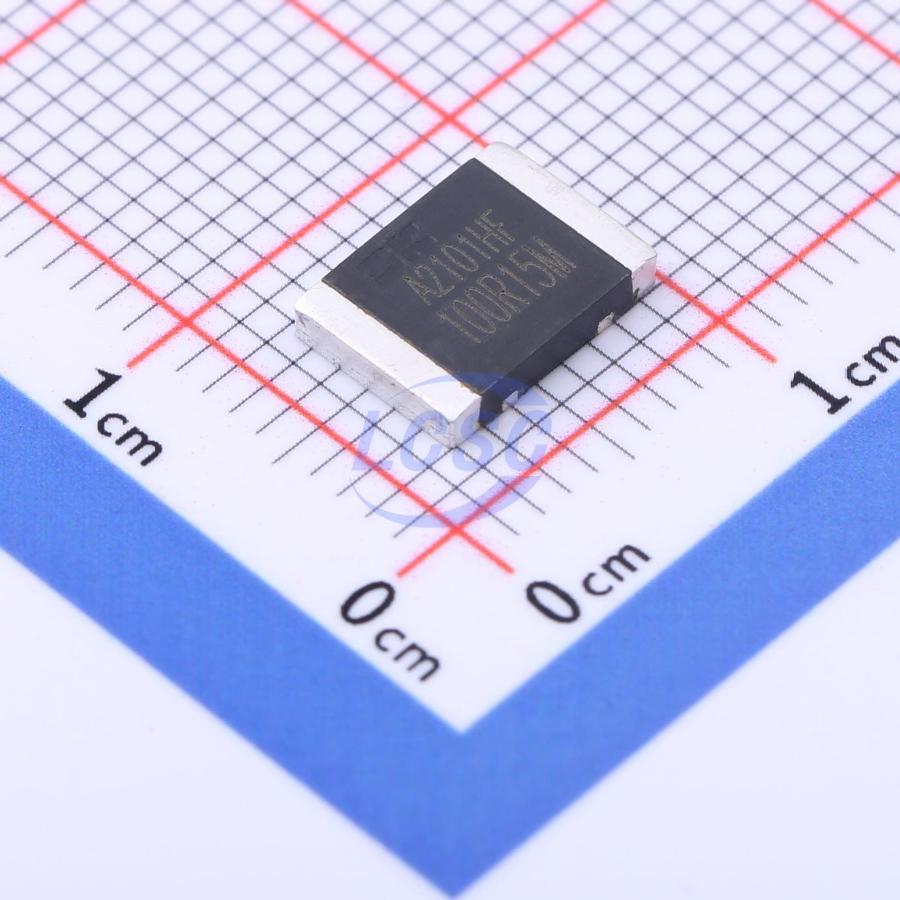

DK5V100R15M
150kHz 1 15mΩ SM-10 Power Supply Controllers, Monitors RoHS
High-performance two-pin synchronous rectification chip
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V100R15M
- Store part #
- C557575
- Package / case
- SM-10
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,672 in stock
#C557575
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹86.09 | ₹86.09 |
| 10+ | ₹69.34 | ₹693.40 |
| 30+ | ₹60.95 | ₹1,828.50 |
| 100+ | ₹52.58 | ₹5,258.00 |
| 500+ | ₹47.55 | ₹23,775.00 |
| 1,000+ | ₹45.03 | ₹45,030.00 |
1 × ₹86.09
₹86.09
excl. GST
₹101.59 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
DK5V100R15M
₹86.09 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 100V
- Function
- Adaptive synchronous rectification control;Programmable dead-time;Light load efficient mode;Multi-mode compatible control
- Frequency - Switching
- 150kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 15mΩ
- Operating Temperature
- -25℃~+120℃
- Turn-Off Delay
- 50ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.392 g
Overview
The DK5V100R15M is a simple and efficient two-pin synchronous rectification IC featuring only A and K pins, corresponding to the anode and cathode of a Schottky diode. The IC integrates an internal 100V power NMOS, which significantly reduces diode conduction losses and improves overall system efficiency, serving as a drop-in replacement for equivalent-rated Schottky rectifier diodes currently on the market. Requiring no external components, it substantially reduces the conduction losses of conventional Schottky diodes and improves overall system efficiency.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 100V 15mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered, no external supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMI/C performance
- Direct replacement for Schottky diodes
- No external components required
