Shenzhen DongKe Semicon

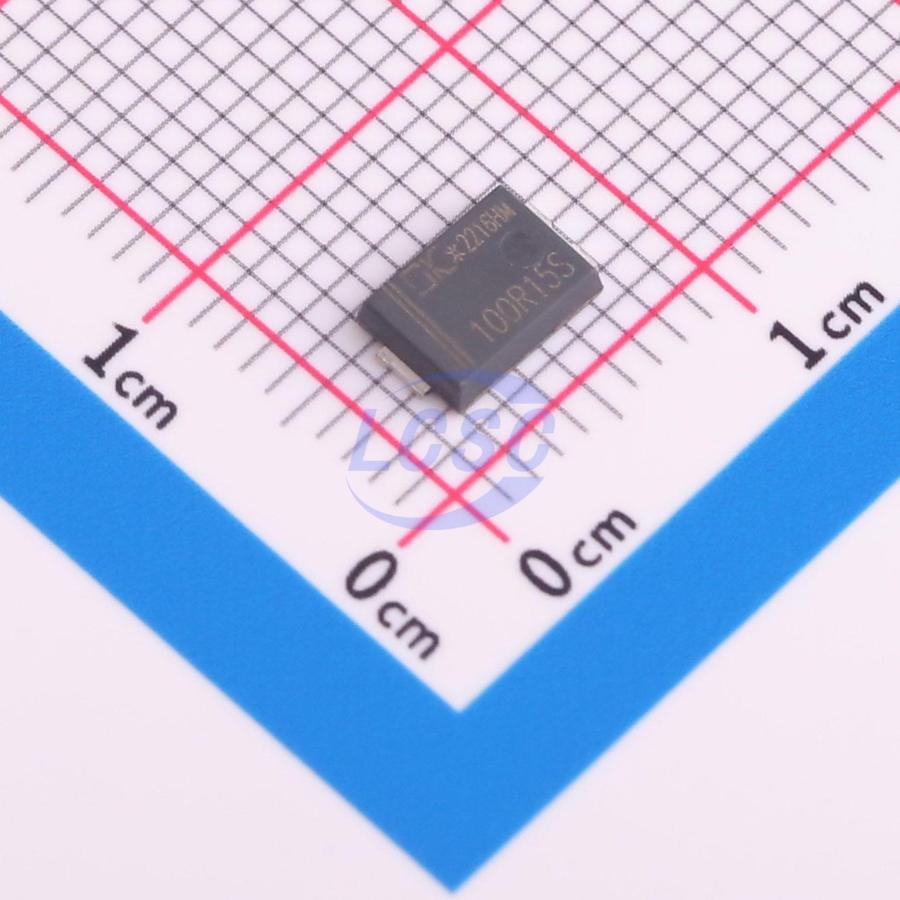

DK5V100R15S

150kHz 15mΩ SM-7 Power Supply Controllers, Monitors RoHS

SM-7ROHS CompliantActive

High-performance dual-pin synchronous rectification chip

Manufacturer: Shenzhen DongKe Semicon
Manufacturer part #: DK5V100R15S
Store part #: C2979260
Package / case: SM-7
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,885 in stock

#C2979260

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹74.33	₹74.33
10+	₹59.11	₹591.10
30+	₹52.59	₹1,577.70
100+	₹44.33	₹4,433.00
500+	₹37.39	₹18,695.00
1,000+	₹34.99	₹34,990.00

Quantity (min 1)

1 × ₹74.33

₹74.33

excl. GST

₹87.71 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

DK5V100R15S

₹74.33 for 1 + GST

Specifications

MOS Breakdown Voltage: 100V
Function: Multi-mode compatible control;Adaptive synchronous rectification control
Frequency - Switching: 150kHz
Switch Tube (Built-In/External): Built-in
RDS(on): 15mΩ
Operating Temperature: -40℃~+150℃
Operating Voltage: 7.2V
Turn-Off Delay: 50ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.193 g

Overview

DK5V100R15S is a simple and efficient two-pin synchronous rectification IC requiring no external components. It significantly reduces the conduction losses of conventional Schottky diodes, improving overall system efficiency. The IC integrates a 100V power NMOS internally, housed in an SM-7 package (compatible with TO-277), with only two pins — A and K — corresponding to the anode and cathode of a Schottky diode. It can directly replace equivalent Schottky rectifier diodes currently available on the market.
