DK5V100R15V

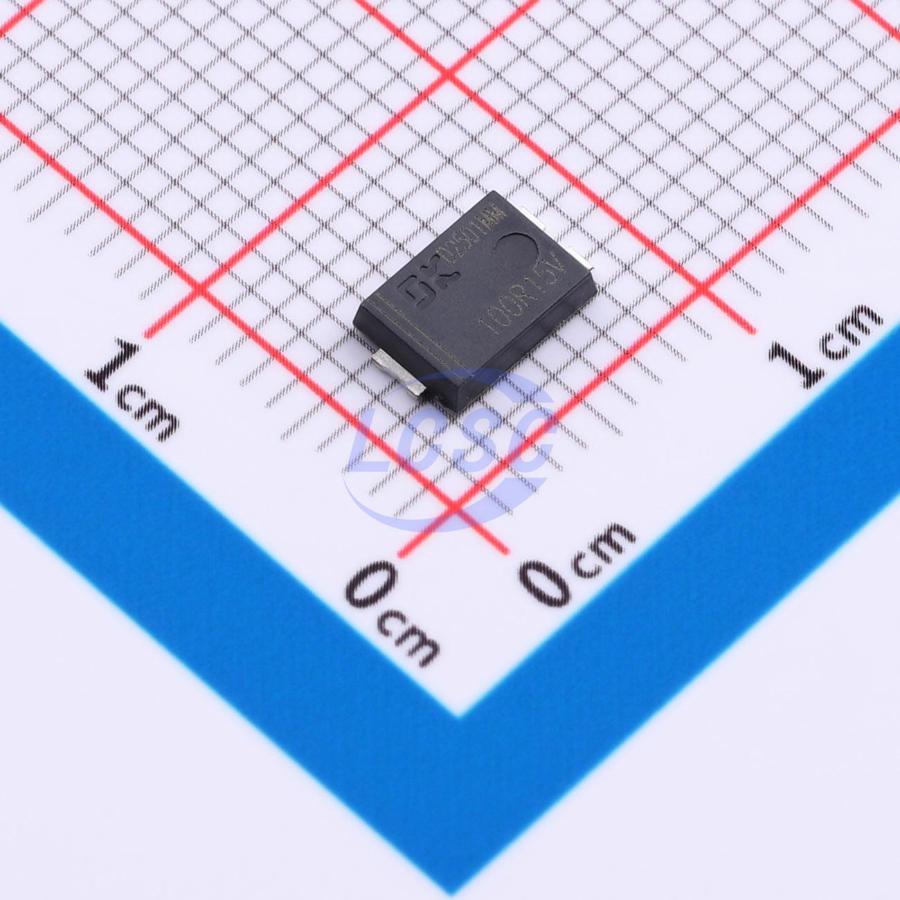

DK5V100R15V is a simple and efficient two-pin synchronous rectification IC featuring only two pins — A (Anode) and K (Cathode) — corresponding to those of a Schottky diode. The IC integrates an internal 100V, 15mΩ power NMOS, significantly reducing the conduction loss of conventional Schottky diodes to improve overall system efficiency, and serves as a drop-in replacement for standard Schottky rectifier diodes. It is offered in an SM-7 package, which is compatible with the TO-277 standard. The IC employs self-powered technology requiring no external auxiliary supply, and features a built-in intelligent detection system that operates without a front-end synchronization signal. It is suitable for flyback PSR and SSR topologies and operates reliably in CCM, DCM, and QR modes. In addition, it offers improved EMI performance and complies with halogen-free and RoHS environmental requirements.

Applications

• USB charger
• Adapter
• LED driver

Key features

• Flyback PSR and SSR applications
• Ultra-low forward voltage drop
• Ultra-low temperature rise
• Integrated 100V, 15mΩ power NMOS
• Supports CCM, DCM, and QR modes
• Self-powered technology, no external power supply required
• Built-in intelligent detection system, no front-end sync signal required
• Improved EMI performance
• Direct drop-in replacement for Schottky diodes
• Halogen-free and RoHS compliant
