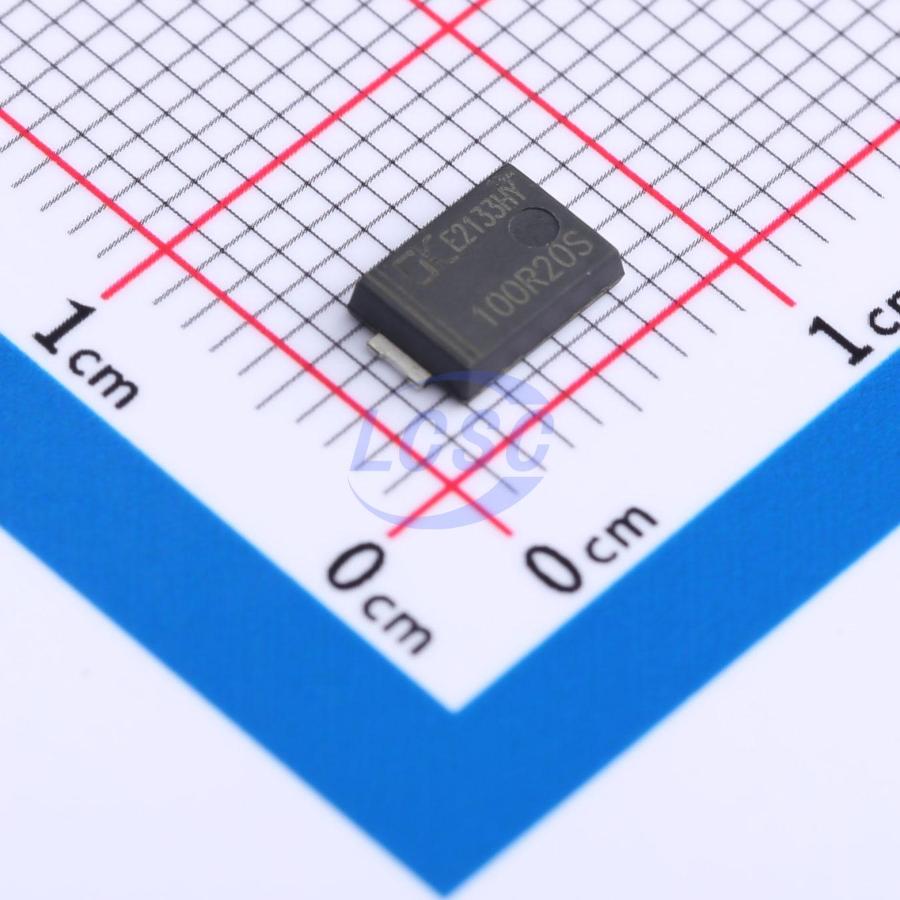

DK5V100R20S
150kHz 1 20mΩ SM-7 Power Supply Controllers, Monitors RoHS
High-performance two-pin synchronous rectification chip
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V100R20S
- Store part #
- C2979254
- Package / case
- SM-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,723 in stock
#C2979254
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹63.68 | ₹63.68 |
| 10+ | ₹49.33 | ₹493.30 |
| 30+ | ₹43.25 | ₹1,297.50 |
| 100+ | ₹35.64 | ₹3,564.00 |
| 500+ | ₹32.16 | ₹16,080.00 |
| 1,000+ | ₹30.22 | ₹30,220.00 |
1 × ₹63.68
₹63.68
excl. GST
₹75.14 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK5V100R20S
₹63.68 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 100V
- Function
- Adaptive synchronous rectification control;Programmable dead-time;Light load efficient mode;Automatic shutdown/startup determination
- Frequency - Switching
- 150kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 20mΩ
- Operating Temperature
- -25℃~+120℃
- Turn-Off Delay
- 50ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.195 g
Overview
The DK5V100R20S is a simple, high-efficiency synchronous rectification IC featuring only two pins — A and K — corresponding to the anode and cathode of a Schottky diode. The IC integrates a 100V power NMOS internally, which significantly reduces diode conduction losses, improves overall system efficiency, and serves as a drop-in replacement for equivalent Schottky rectifier diodes currently available on the market. The DK5V100R20S is housed in an SM-7 package (compatible with TO-277). It is a simple, high-efficiency two-pin synchronous rectification IC that requires no external components, dramatically reducing the conduction losses of conventional Schottky diodes and improving overall system efficiency.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 100V 20mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered technology, no external power supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMI/C performance
- Direct drop-in replacement for Schottky diodes
- No external components required
