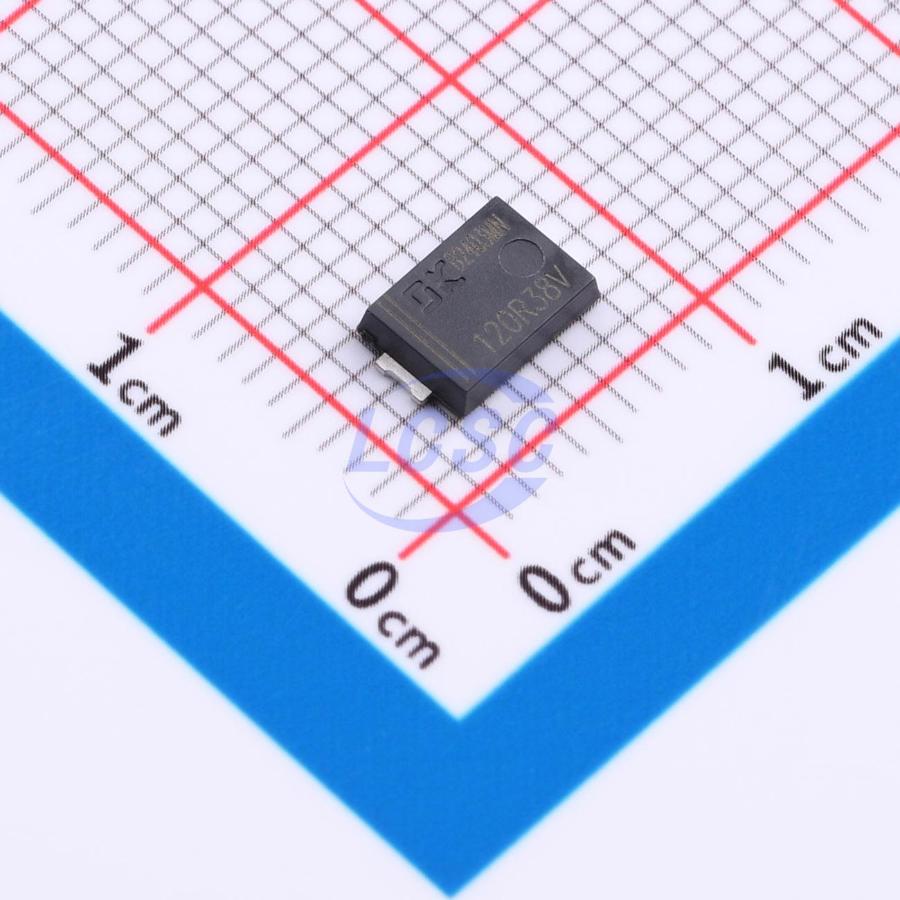

DK5V120R38V
300kHz 32.5mΩ 1 SM-7 Power Supply Controllers, Monitors
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V120R38V
- Store part #
- C53183616
- Package / case
- SM-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,860 in stock
#C53183616
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹80.65 | ₹80.65 |
| 10+ | ₹65.36 | ₹653.60 |
| 30+ | ₹57.60 | ₹1,728.00 |
| 100+ | ₹50.06 | ₹5,006.00 |
| 500+ | ₹45.46 | ₹22,730.00 |
| 1,000+ | ₹43.16 | ₹43,160.00 |
1 × ₹80.65
₹80.65
excl. GST
₹95.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK5V120R38V
₹80.65 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 120V
- Function
- Adaptive synchronous rectification control;Multi-mode compatible control
- Frequency - Switching
- 300kHz
- Switch Tube (Built-In/External)
- Built-in
- RDS(on)
- 32.5mΩ
- Number of Channels
- 1
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 20ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.56 g
Overview
DK5V120R38V is a simple-structure, high-efficiency synchronous rectification chip with only two pins — A (Anode) and K (Cathode) — corresponding to those of a Schottky diode. The chip integrates an internal 120V power NMOS transistor to significantly reduce diode conduction losses, thereby improving overall system efficiency. It is designed as a drop-in replacement for equivalent Schottky rectifier diodes on the market. The chip adopts an SM-7 package, compatible with the TO-277 package.
Key features
- For flyback PSR and SSR applications
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 120V, 32.5mΩ power NMOS
- Operates in CCM, DCM, and QR modes
- Self-powered, no external supply circuit required
- Built-in intelligent detection system, no front-end sync signal needed
- Improved EMI performance
- Direct replacement for Schottky diodes
- Halogen-free and RoHS compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | DK5V120R15V#C53183615Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 3,858 | ₹119.77 · 3,858 in stock | View |
 | DK5V100R25V#C53183612Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 400 | ₹60.74 · 400 in stock | View |
 | DK5V100R15V#C45355010Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 1,992 | ₹70.48 · 1,992 in stock | View |
 | DK5V100R10V#C53183614Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 1,316 | ₹57.37 · 1,316 in stock | View |
 | DK5V45R25V#C53183599Shenzhen DongKe Semicon · SM-7 | Shenzhen DongKe Semicon | SM-7 | 950 | ₹24.57 · 950 in stock | View |
