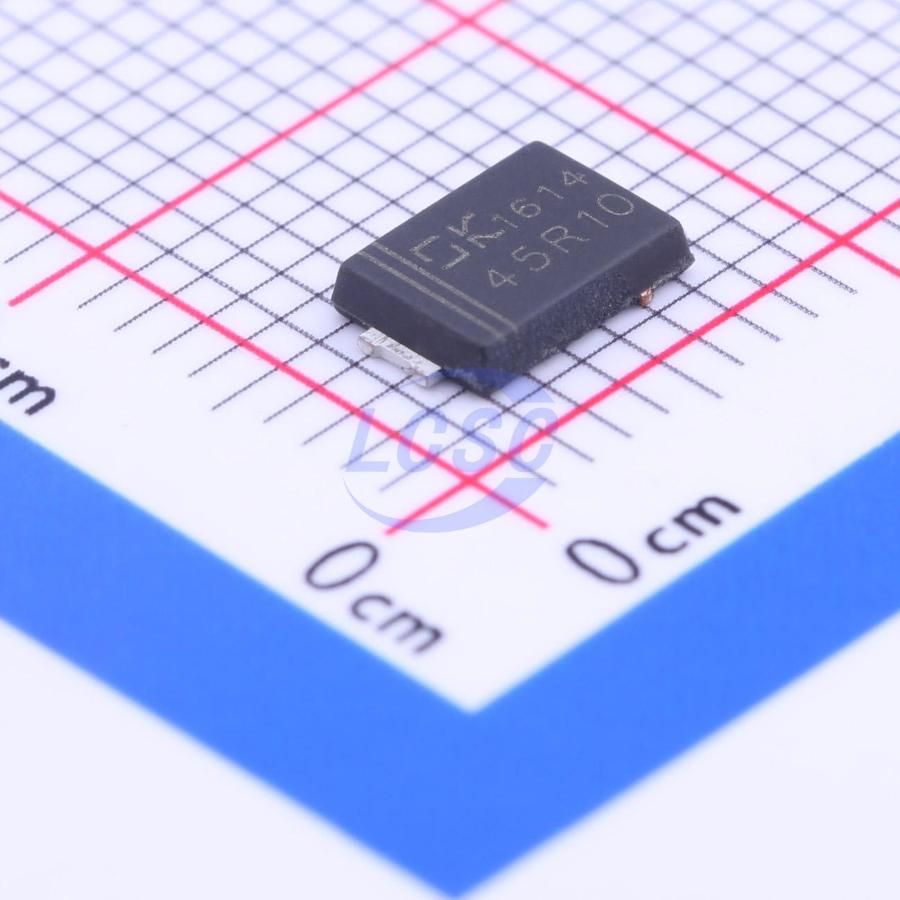

Shenzhen DongKe Semicon

DK5V45R10

1 10mΩ SM-7 Power Supply Controllers, Monitors RoHS

SM-7ROHS CompliantActive

Synchronous diode chip

Manufacturer: Shenzhen DongKe Semicon
Manufacturer part #: DK5V45R10
Store part #: C94730
Package / case: SM-7
Category: Power Supply Controllers, Monitors
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,295 in stock

#C94730

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹64.22	₹321.10
50+	₹53.85	₹2,692.50
150+	₹49.40	₹7,410.00
500+	₹41.01	₹20,505.00
2,500+	₹38.54	₹96,350.00
5,000+	₹37.06	₹1,85,300.00

Quantity (min 5, multiples of 5)

5 × ₹64.22

₹321.10

excl. GST

₹378.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

DK5V45R10

₹321.10 for 5 + GST

Specifications

MOS Breakdown Voltage: 45V
Function: Adaptive synchronous rectification control;Multi-mode compatible control;Automatic shutdown/startup determination
Switch Tube (Built-In/External): Built-in
Number of Channels: 1
RDS(on): 10mΩ
Operating Voltage: 11V
Turn-Off Delay: 50ns

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.144 g

Overview

DK5V45R10 is a synchronous rectifier diode chip. The chip integrates a 45V power NMOS transistor, which significantly reduces diode conduction losses, improves overall system efficiency, and can replace equivalent Schottky rectifier diodes currently available on the market. The DK5V45R10 features a built-in energy storage capacitor and self-powered circuitry to meet the chip and power MOSFET driving requirements, eliminating the need for an external power supply.

Applications

Flyback power converter
Flyback power adapter

Key features

Supports DCM and QR mode flyback systems.
Integrated 10 mΩ 45V power NMOS transistor.
Self-detected turn-on/turn-off, no external synchronization signal required.
Direct drop-in replacement for Schottky diodes, with improved EMC/EMI performance.
