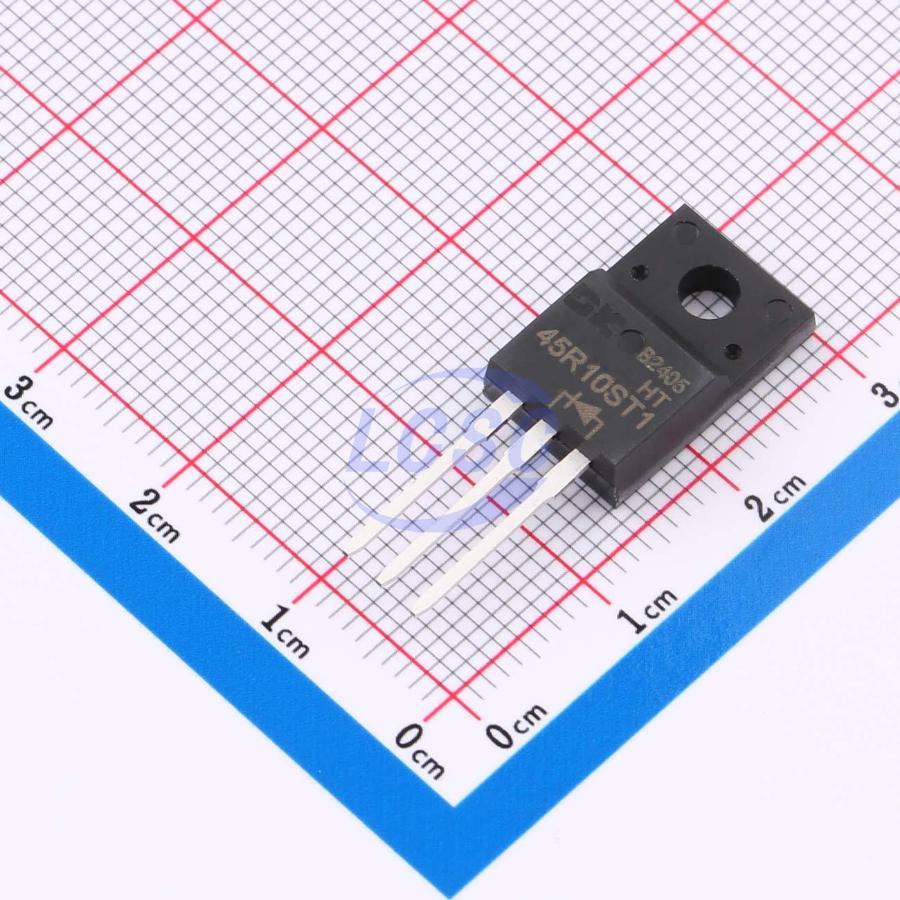

DK5V45R10ST1
150kHz 1 10mΩ TO-220 Power Supply Controllers, Monitors RoHS
High-performance two-pin synchronous rectification chip
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V45R10ST1
- Store part #
- C557578
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,021 in stock
#C557578
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹57.59 | ₹57.59 |
| 10+ | ₹51.07 | ₹510.70 |
| 50+ | ₹47.81 | ₹2,390.50 |
| 100+ | ₹44.56 | ₹4,456.00 |
| 500+ | ₹42.60 | ₹21,300.00 |
| 1,000+ | ₹41.73 | ₹41,730.00 |
1 × ₹57.59
₹57.59
excl. GST
₹67.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
DK5V45R10ST1
₹57.59 for 1 + GST
Specifications
- MOS Breakdown Voltage
- 45V
- Function
- Adaptive synchronous rectification control;Programmable dead-time;Multi-mode compatible control
- Frequency - Switching
- 150kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 10mΩ
- Operating Temperature
- -25℃~+120℃
- Turn-Off Delay
- 50ns
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.86 g
Overview
DK5V45R10ST1 is a simple, high-efficiency synchronous rectification IC with only two pins — A and K — corresponding to the anode and cathode of a Schottky diode. The IC integrates an internal 45V power NMOS, which significantly reduces diode conduction losses, improves overall system efficiency, and serves as a drop-in replacement for equivalent Schottky rectifier diodes currently on the market. DK5V45R10ST1 is packaged in a TO-220F package. DK5V45R10ST1 is a simple, high-efficiency two-pin synchronous rectification IC that requires no external components, dramatically reducing the conduction losses of conventional Schottky diodes and improving overall system efficiency.
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback PSR/SSR applications
- Ultra-low VF
- Ultra-low temperature rise
- Integrated 45V 10mΩ power NMOS
- CCM, DCM & QR mode operation
- Self-powered, no external supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMI/C performance
- Direct drop-in replacement for Schottky diodes
- No external components required
