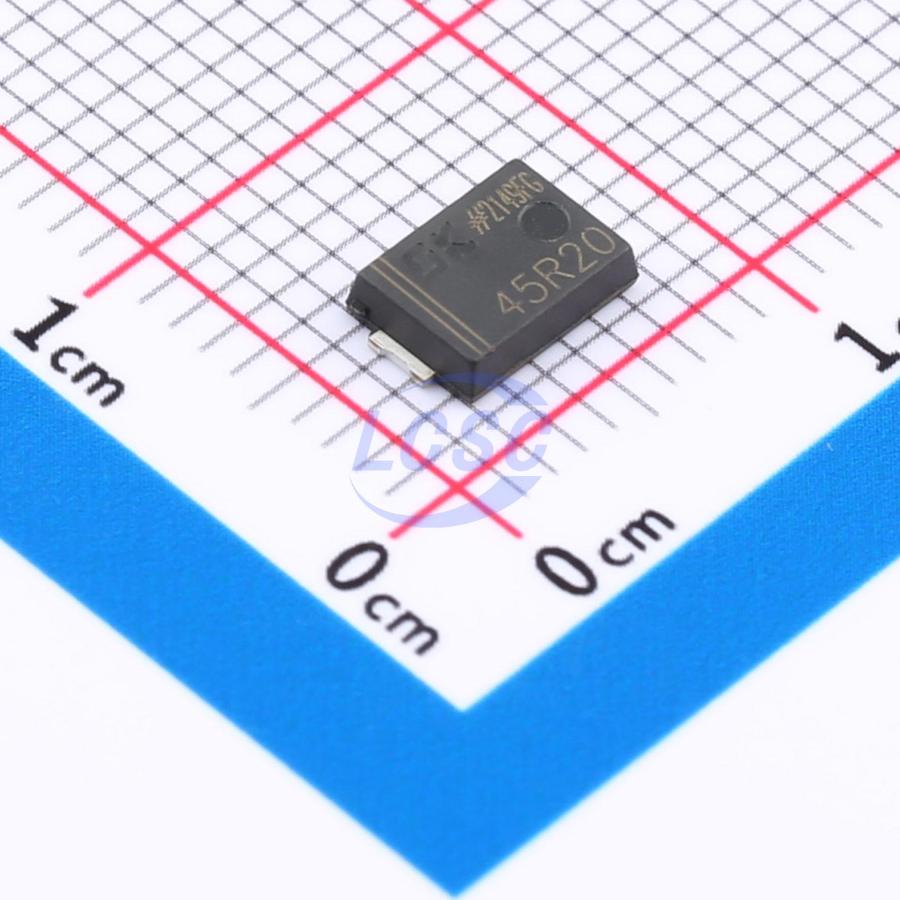

DK5V45R20
100kHz 1 20mΩ SM-7 Power Supply Controllers, Monitors
- Manufacturer
- Shenzhen DongKe Semicon
- Manufacturer part #
- DK5V45R20
- Store part #
- C94728
- Package / case
- SM-7
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,415 in stock
#C94728
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.63 | ₹238.15 |
| 50+ | ₹39.57 | ₹1,978.50 |
| 150+ | ₹36.13 | ₹5,419.50 |
| 500+ | ₹31.82 | ₹15,910.00 |
| 2,500+ | ₹29.90 | ₹74,750.00 |
| 5,000+ | ₹28.75 | ₹1,43,750.00 |
5 × ₹47.63
₹238.15
excl. GST
₹281.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
DK5V45R20
₹238.15 for 5 + GST
Specifications
- MOS Breakdown Voltage
- 45V
- Frequency - Switching
- 100kHz
- Switch Tube (Built-In/External)
- Built-in
- Number of Channels
- 1
- RDS(on)
- 20mΩ
- Operating Temperature
- -40℃~+150℃
- Operating Voltage
- 85V~265V
- Turn-Off Delay
- 50ns
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.143 g
Overview
This is a simple, high-efficiency synchronous rectification IC featuring only two pins — A (Anode) and K (Cathode) — corresponding to the anode and cathode of a Schottky diode. The IC integrates an internal 45V power NMOS transistor to significantly reduce diode conduction losses and improve overall system efficiency, making it a drop-in replacement for equivalent Schottky rectifier diodes on the market. The device is offered in an SM-7 package (compatible with TO-277).
Applications
- USB charger
- Adapter
- LED driver
Key features
- Flyback primary-side feedback applications
- Ultra-low forward voltage drop
- Ultra-low temperature rise
- Integrated 45V, 20mΩ power NMOS
- Supports DCM and quasi-resonant mode operation
- Self-powered, no external power supply required
- Intelligent detection system, no front-end sync signal required
- Improved EMI performance
- Direct drop-in replacement for Schottky diodes
